Fuse Block - Underhood X6

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

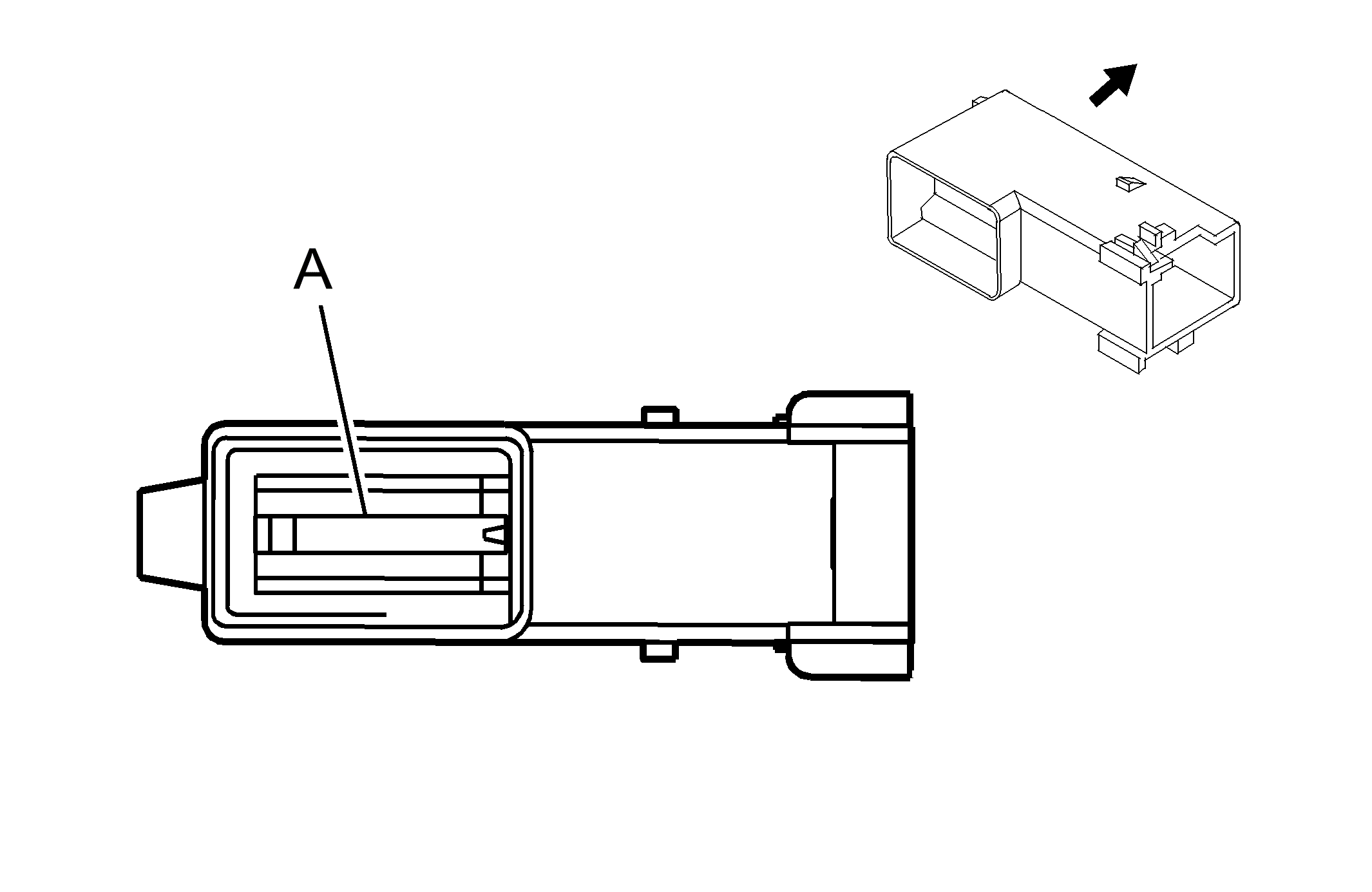

Fig 1: Fuse Block - Underhood X6
GM1665661Courtesy of GENERAL MOTORS CORP.
Fuse Block - Underhood X6

Pin Wire Color Circuit No. Function
A 19 RD 2 Battery Positive Voltage
Connector Part Information
  • OEM: 15488459
  • Service: See Catalog
  • Description: 1-Way F High Power Series (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
