Fuse Block - Underhood X4

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

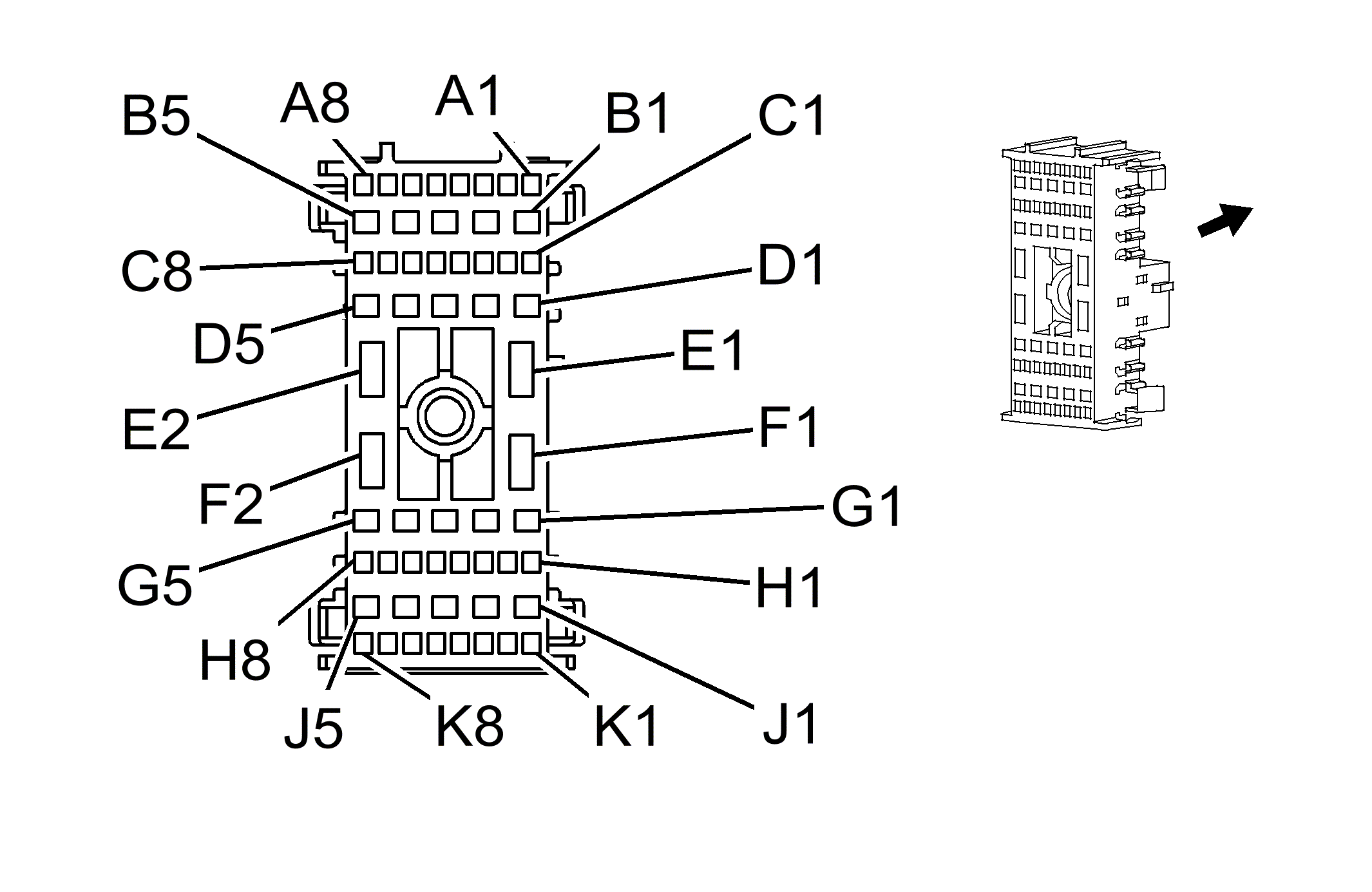

Fig 1: Fuse Block - Underhood X4
GM1665659Courtesy of GENERAL MOTORS CORP.
Fuse Block - Underhood X4

Pin Wire Color Circuit No. Function
A1 0.5 L-BU/WH 1314 Left Front Turn Signal Lamp Supply Voltage
A2 - - Not Used
A3 0.5 OG 2268 Windshield Washer Relay Control
A4-A6 - - Not Used
A7 0.35 WH 193 Rear Defog Relay Control (C49)
A8 - - Not Used
B1-B4 - - Not Used
B5 3 PU 293 Rear Defog Element Supply Voltage (C49)
C1 0.5 D-BU/WH 1315 Right Front Turn Signal Lamp Supply Voltage (-DL3/DPN)
0.8 D-BU/WH 1315 Right Front Turn Signal Lamp Supply Voltage (DL3/DPN)
C2 0.35 D-GN/WH 1317 Fog Lamp Relay Control (T96)
C3 0.35 TN/WH 1969 Headlamp High Beam Relay Control
C4-C8 - - Not Used
D1-D3 - - Not Used
D4 0.5 RD/WH 4440 Battery Positive Voltage
D5 0.5 OG 2267 Mirror Heating Element Supply Voltage (DL8/DPN -AN3/DL3)
E1 5 RD/BK 842 Battery Positive Voltage
E2 5 RD/BK 642 Battery Positive Voltage (YE9)
F1 - - Not Used
F2 5 RD/BK 542 Battery Positive Voltage
G1 0.35 TN 28 Horn Relay Control
G2 2 RD/WH 2340 Battery Positive Voltage
G3 2 RD/WH 3740 Battery Positive Voltage
G4 0.5 RD/WH 3240 Battery Positive Voltage
G5 0.8 RD/WH 4540 Battery Positive Voltage
H1 0.5 BN 2509 Left Right Park Lamps Supply Voltage
H2-H3 - - Not Used
H4 0.35 L-GN/BK 592 DRL Relay Control
H5 0.5 D-GN 19 Right Rear Stop/Turn Lamp Supply Voltage
H6-H8 - - Not Used
J1 0.35 RD/WH 3140 Battery Positive Voltage
J2-J3 - - Not Used
J4 0.35 RD/WH 2840 Battery Positive Voltage
0.35 RD/WH 2840 Battery Positive Voltage
J5 0.8 RD/WH 640 Battery Positive Voltage
0.8 RD/WH 640 Battery Positive Voltage
K1 - - Not Used
K2 0.35 PK/WH 1970 Headlamp Low Beam Relay Control
K3-K4 - - Not Used
K5 0.5 YE 18 Left Rear Stop/Turn Lamp Supply Voltage
K6-K8 - - Not Used
Connector Part Information
  • OEM: 13513329
  • Service: 19115656
  • Description: 56-Way F GT 150 280 Metri-Pack Series (BK)
Terminal Part Information
  • Pins: E1, E2, F2
  • Terminal/Tray: 12110127/19
  • Core/Insulation Crimp: F/G
  • Release Tool/Test Probe: 12150860/J-35616-44 (YE)
  • Pins: A1, A3, A7, C1, C2, C3, D4, D5, G1, G4, G5, H1, H4, H5, J4, K2, K5
  • Terminal/Tray: 15496302/5
  • Core/Insulation Crimp: Pins A1, A3, A7, C1, C2, C3, D4, D5, G1, G4, H1, H4, J4, K2 - E/A
  • Core/Insulation Crimp: Pins C1, G5, H5, K5 - 2/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
  • Pins: B5, G2, G3, J1, J5, J5
  • Terminal/Tray: 13525969/4
  • Core/Insulation Crimp: Pins B5, G2, G3, J1 - F/D
  • Core/Insulation Crimp: Pins J5 - See Terminal Repair Kit
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
