Door Component Views

WARNING: This page is about a different car, the 2008 GMC Sierra, 2008 GMC Cab & Chassis Sierra, 2008 Chevrolet Silverado, and 2008 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

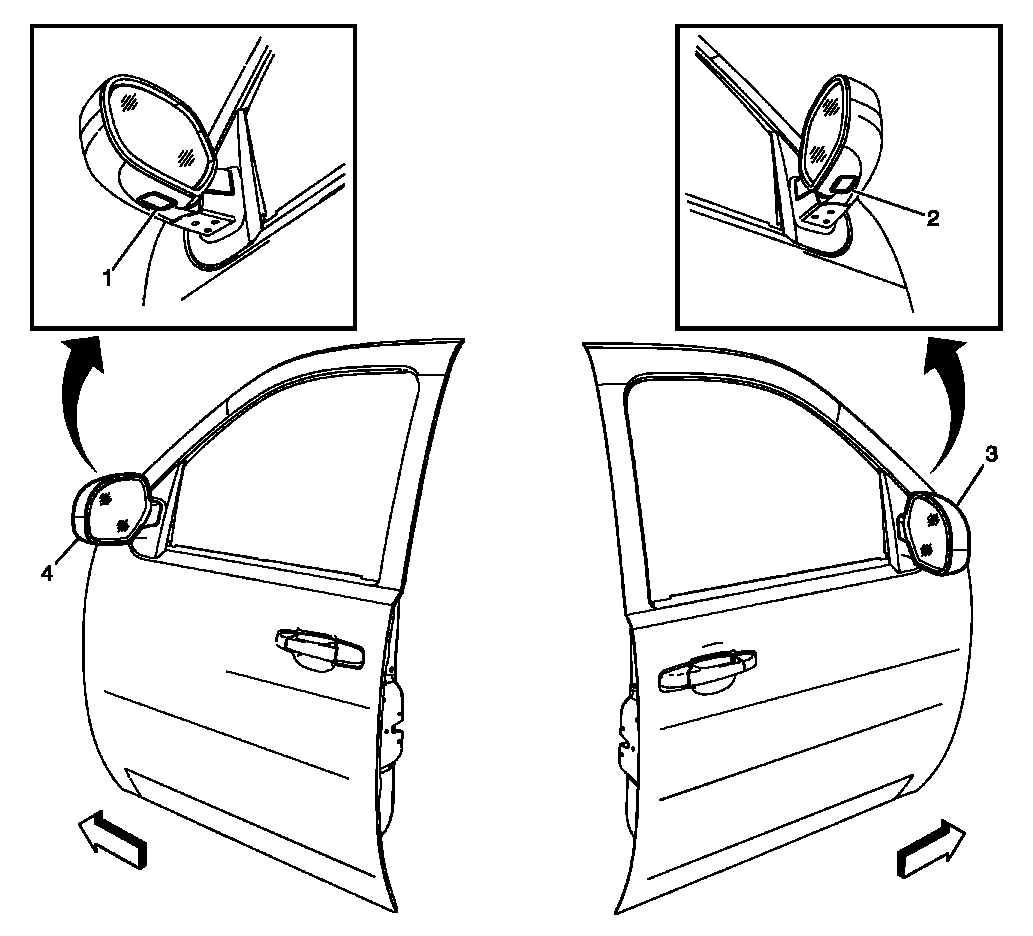

Fig 1: Front Door Components
GM1860640Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Exterior Illumination Lamp - Left (DL3/DR4/DPN)
2 Exterior Illumination Lamp - Right (DL3/DR4/DPN)
3 Outside Rear View Mirror (OSRVM) - Driver
4 Outside Rear View Mirror (OSRVM) - Passenger

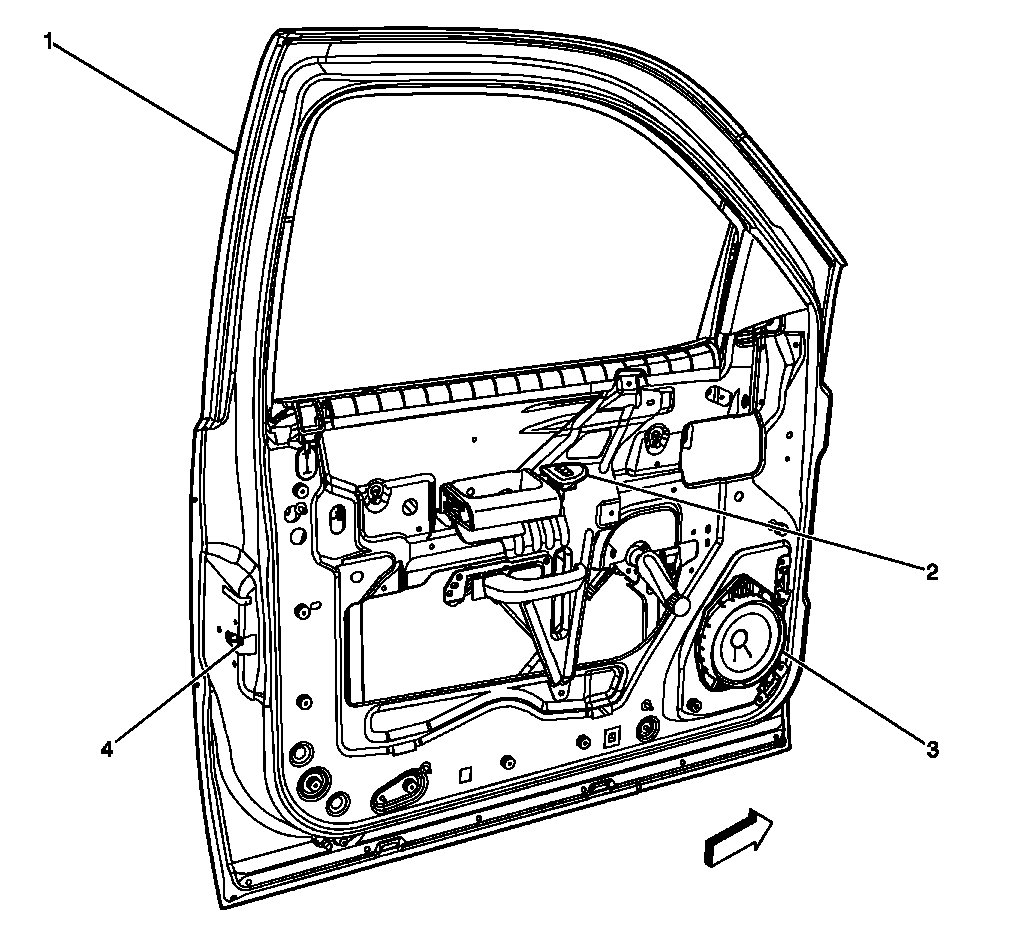

Fig 2: Driver Door Components (AU3 -AN3/DL3)
GM1854064Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 Door Lock Switch - Driver
3 Speaker - Left Front
4 Door Latch Assembly - Driver

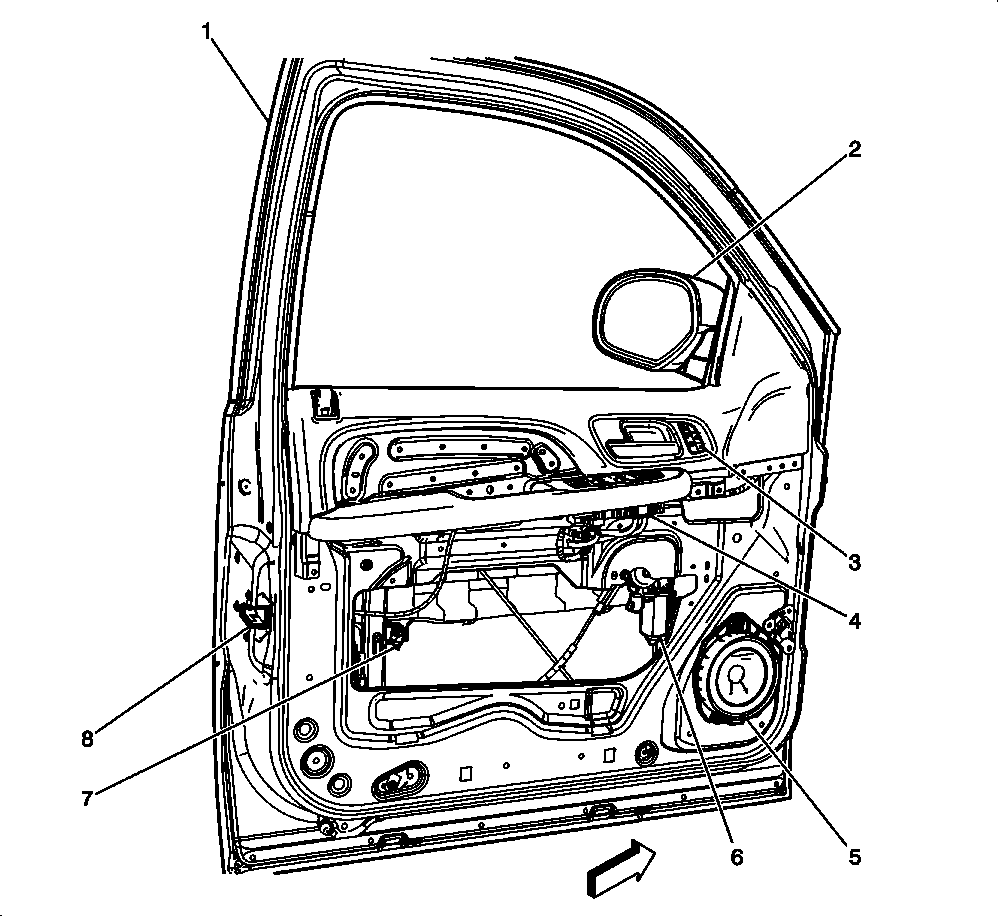

Fig 3: Driver Door Components (AN3/DL3)
GM1714202Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 Outside Rearview Mirror - Driver
3 Memory/Heated Seat Switch (AN3)
4 Driver Door Switch (DDS)
5 Speaker - Left Front
6 Window Motor - Driver (A31)
7 Inflatable Restraint Side Impact Sensor (SIS) - Left Front (ASF)
8 Door Latch Assembly - Driver

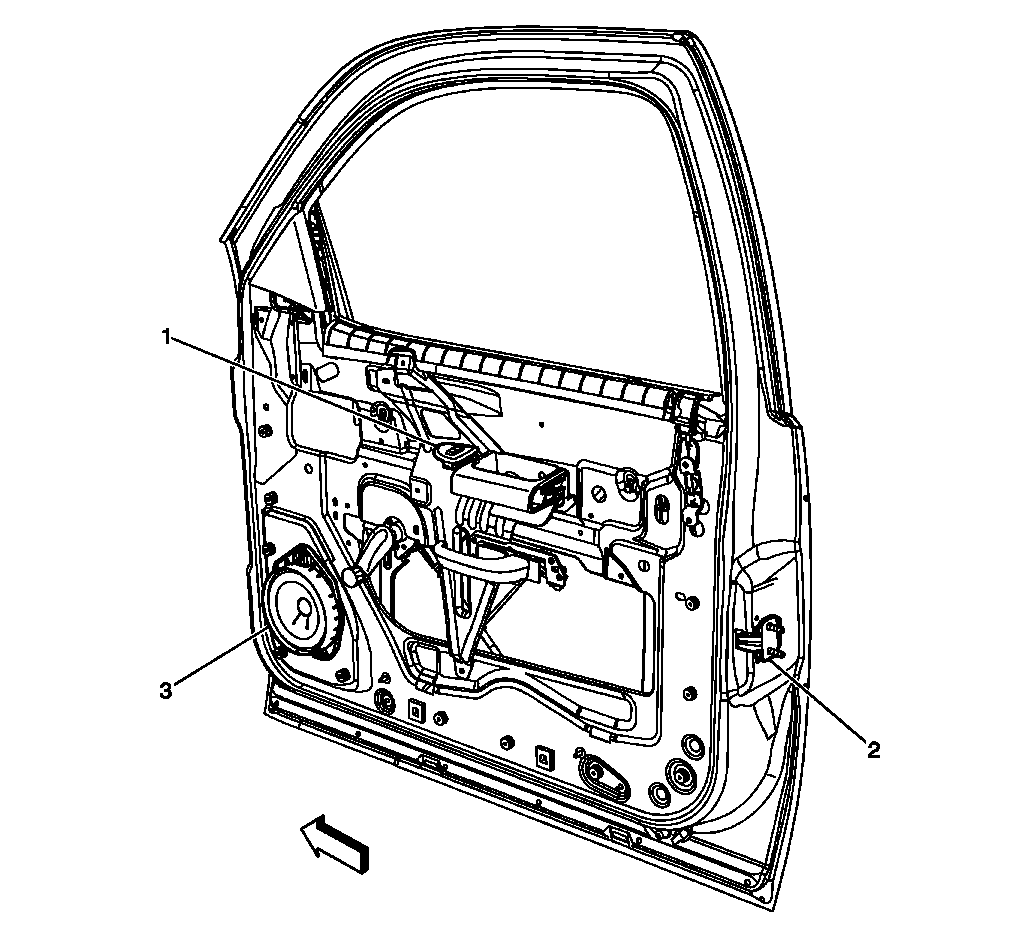

Fig 4: Passenger Door Components (AU3 -AN3/DL3)
GM1854066Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Lock Switch - Passenger
2 Door Latch Assembly - Passenger
3 Speaker - Right Front

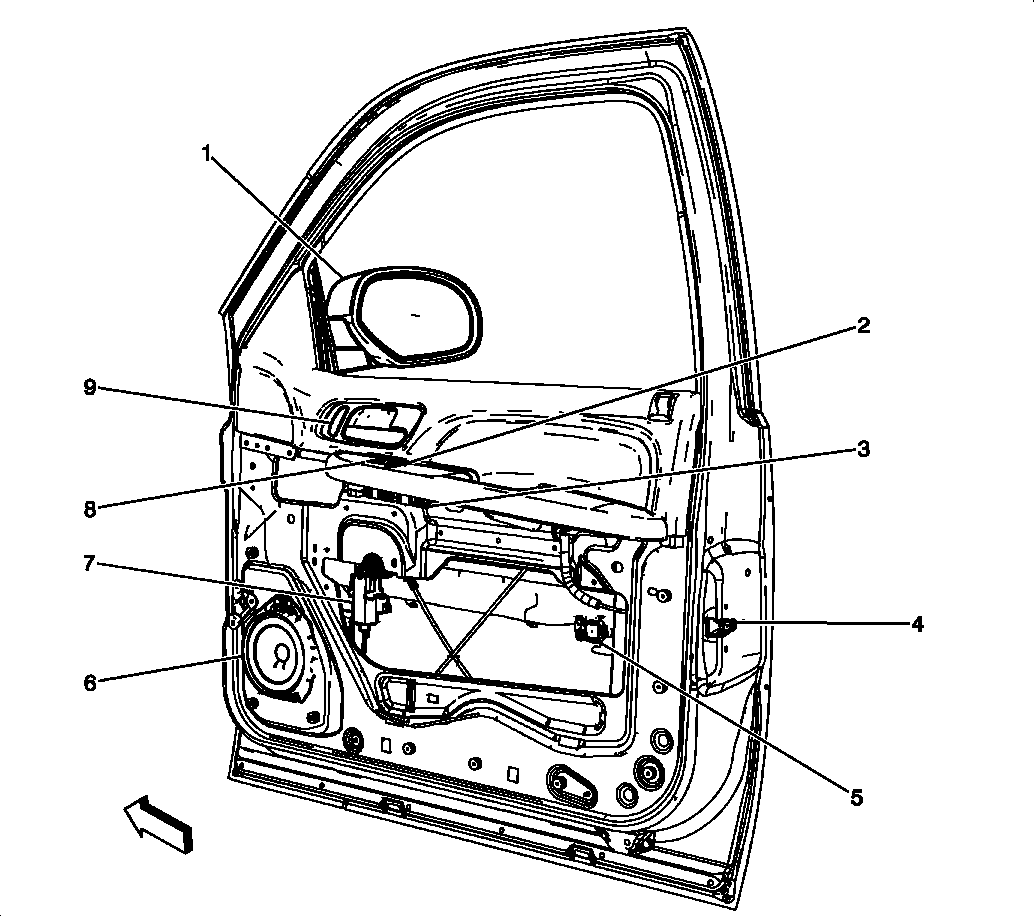

Fig 5: Passenger Door Components
GM1998400Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Outside Rearview Mirror - Passenger
2 Door Lock Switch - Passenger (AN3 -AN3/DL3)
3 Passenger Door Switch (PDS) (AN3/DL3)
4 Door Latch Assembly - Passenger
5 Inflatable Restraint Side Impact Sensor (SIS) - Right Front (ASF)
6 Speaker - Right Front
7 Window Motor - Passenger (A31)
8 Window Switch - Passenger (A31 -AN3/DL3)
9 Heated Seat Switch - Passenger (AN3)

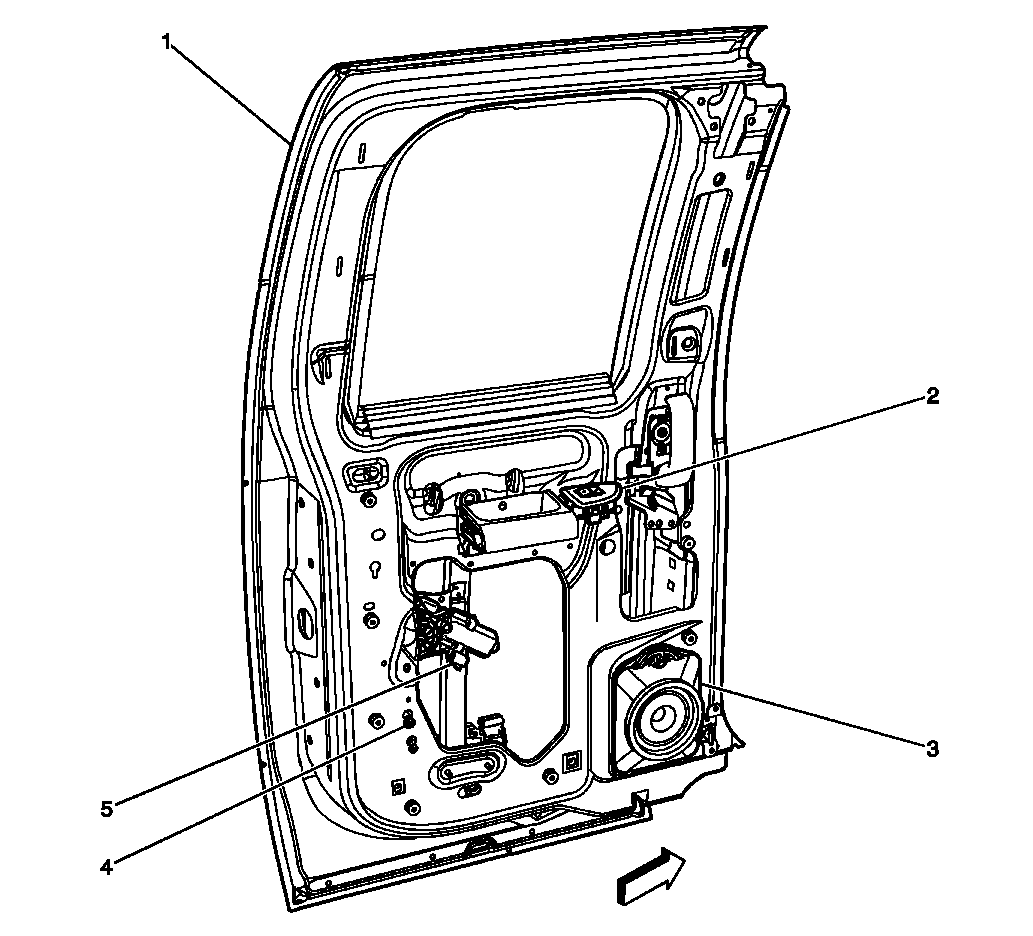

Fig 6: Left Rear Door Components (Extended Cab)
GM1854060Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 Window Switch - Left Rear (ABV)
3 Speaker - Left Rear Door
4 Inflatable Restraint Side Impact Sensor (SIS) - Left Rear (ASF)
5 Window Motor - Left Rear (ABV)

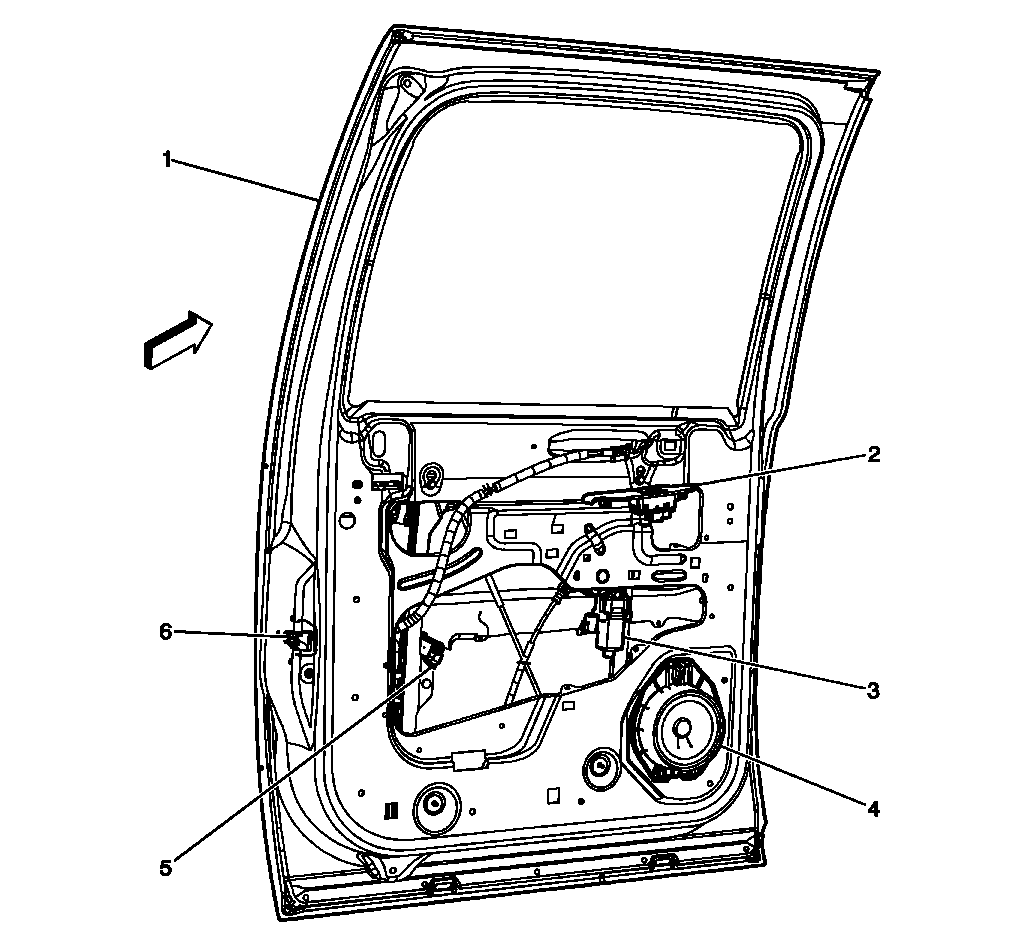

Fig 7: Left Rear Door Components (Crew Cab)
GM1854068Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Frame
2 Window Switch - Left Rear (A31)
3 Window Motor - Left Rear (A31)
4 Speaker - Left Rear Door
5 Inflatable Restraint Side Impact Sensor (SIS) - Left Rear (ASF)
6 Door Latch Assembly - Left Rear

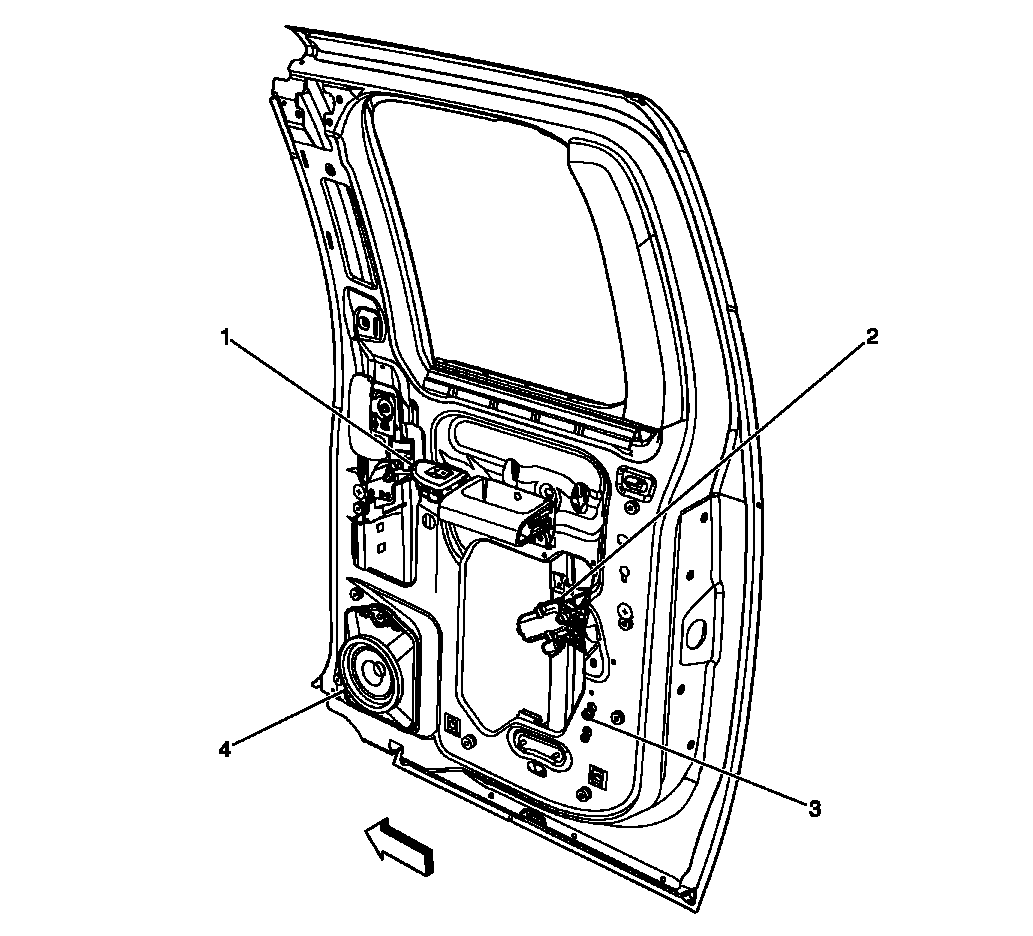

Fig 8: Right Rear Door Components (Extended Cab)
GM1854062Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Window Switch - Right Rear (ABV)
2 Window Motor - Right Rear (ABV)
3 Inflatable Restraint Side Impact Sensor (SIS) - Right Rear (ASF)
4 Speaker - Right Rear Door

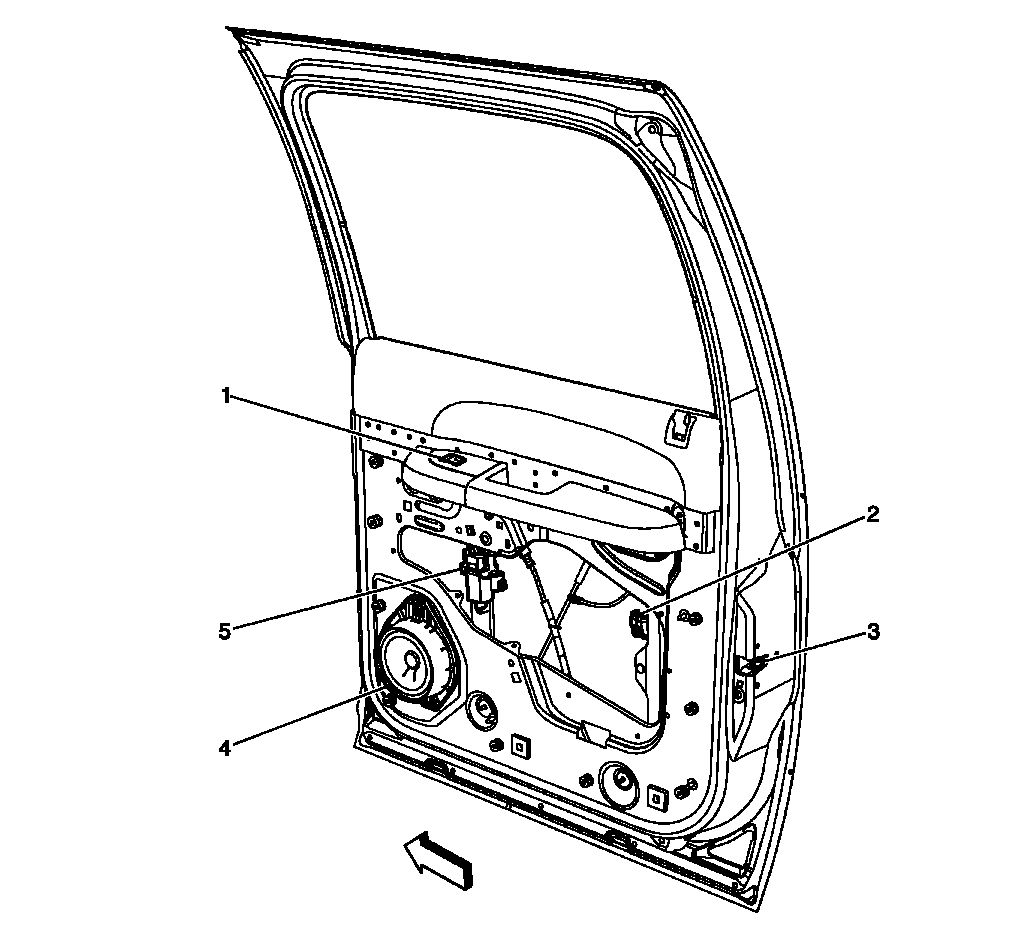

Fig 9: Right Rear Door Components (Crew Cab)
GM1854069Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Window Switch - Right Rear (A31)
2 Inflatable Restraint Side Impact Sensor (SIS) - Right Rear (ASF)
3 Door Latch Assembly - Right Rear
4 Speaker - Right Rear Door
5 Window Motor - Right Rear (A31)
