Seat Climate Control Module X1 (KB6)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

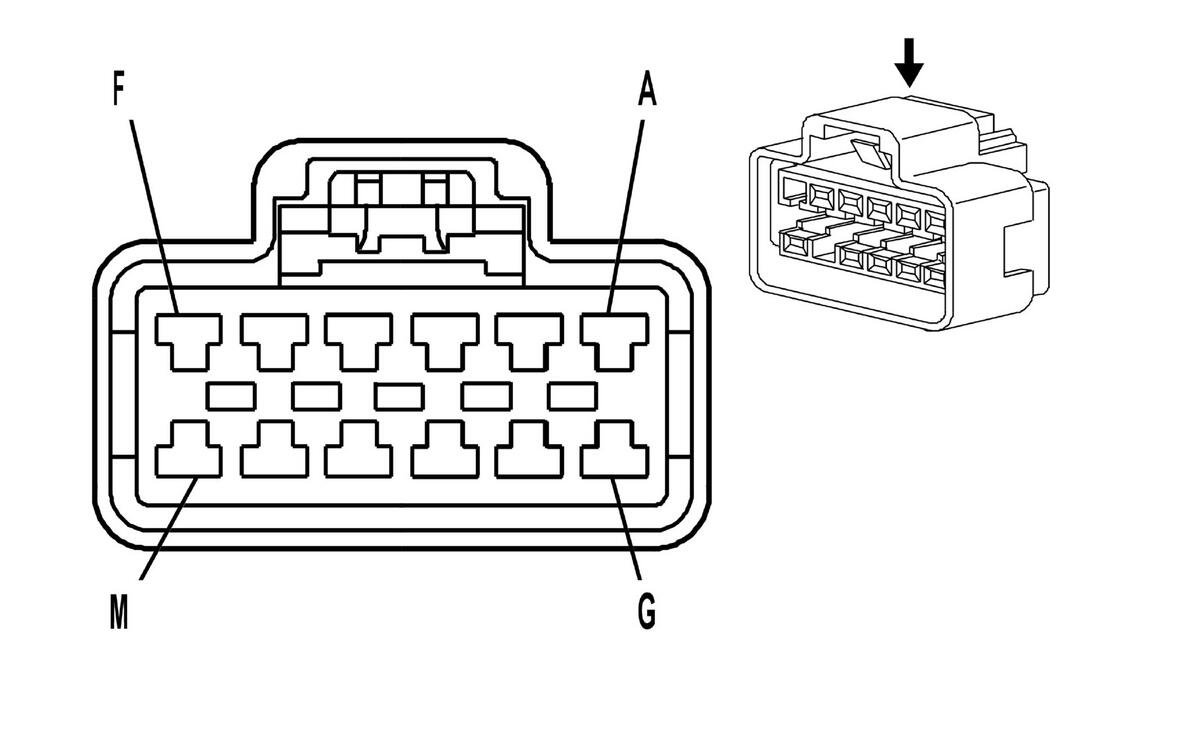

Fig 1: Seat Climate Control Module X1 (KB6) Connector End View
GM476149Courtesy of GENERAL MOTORS CORP.
Seat Climate Control Module X1 (KB6)

Pin Wire Color Circuit Function
A 1 PK/BK 6199 Passenger Seat Cushion Heated/Cool Ventilation Module Heat Control
B 1 WH/BK 6200 Passenger Seat Cushion Heated/Cool Ventilation Module Cool Control
C 1 YE 6197 Passenger Seat Back Heated/Cool Ventilation Module Heat Control
D 1 D-BU/WH 6198 Passenger Seat Back Heated/Cool Ventilation Module Cool Control
E 2 RD/WH 4740 Battery Positive Voltage
F - - Not Used
G 1 D-GN 6195 Driver Seat Cushion Heated/Cool Ventilation Module Heat Control
H 1 PU 6196 Driver Seat Cushion Heated/Cool Ventilation Module Cool Control
J 1 BN 6193 Driver Seat Back Heated/Cool Ventilation Module Heat Control
K 1 OG 6194 Driver Seat Back Heated/Cool Ventilation Module Cool Control
L - - Not Used
M 2 BK 1250 Ground
Connector Part Information
  • OEM: 15326110
  • Service: 15306171
  • Description: 12-Way F 280 GT Series (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
