Memory Seat Module (MSM) X1 (AN3)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

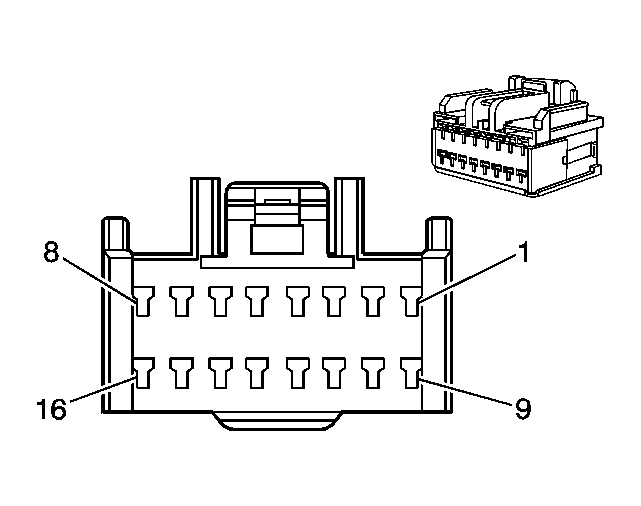

Fig 1: Memory Seat Module (MSM) X1 (AN3) Connector End View
GM1664465Courtesy of GENERAL MOTORS CORP.
Memory Seat Module (MSM) X1 (AN3)

Pin Wire Circuit Function
1 1 PU 2424 Driver Heated Seat Back Element Control (without KB6)
2-3 - - Not Used
4 1 L-BU 2433 Passenger Heated Seat Back Element Control (without KB6)
5 - - Not Used
6 1 D-BU 2479 Heated Seat Cushion Element Supply Voltage (without KB6)
7-8 - - Not Used
9 1 TN 285 Driver Seat Horizontal Motor Forward Control
10 1 L-GN 284 Driver Seat Horizontal Motor Rearward Control
11 1 L-GN 2078 Ground (without KB6)
12 1 D-GN 286 Driver Seat Front Vertical Motor Up Control
13 1 D-BU 287 Driver Seat Front Vertical Motor Down Control
14 1 PK 2077 Heated Seat Cushion Element Supply Voltage (without KB6)
15 1 YE 282 Driver Seat Rear Vertical Motor Up Control
16 1 L-BU 283 Driver Seat Rear Vertical Motor Down Control
Connector Part Information
  • OEM: 6098-4611
  • Service: 15134091
  • Description: 16-Way F (BK)
Terminal Part Information
  • Terminal/Tray: 8240-0128/2
  • Core/Insulation Crimp: C/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
