Inflatable Restraint Steering Wheel Module (Except 10 Series)

WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

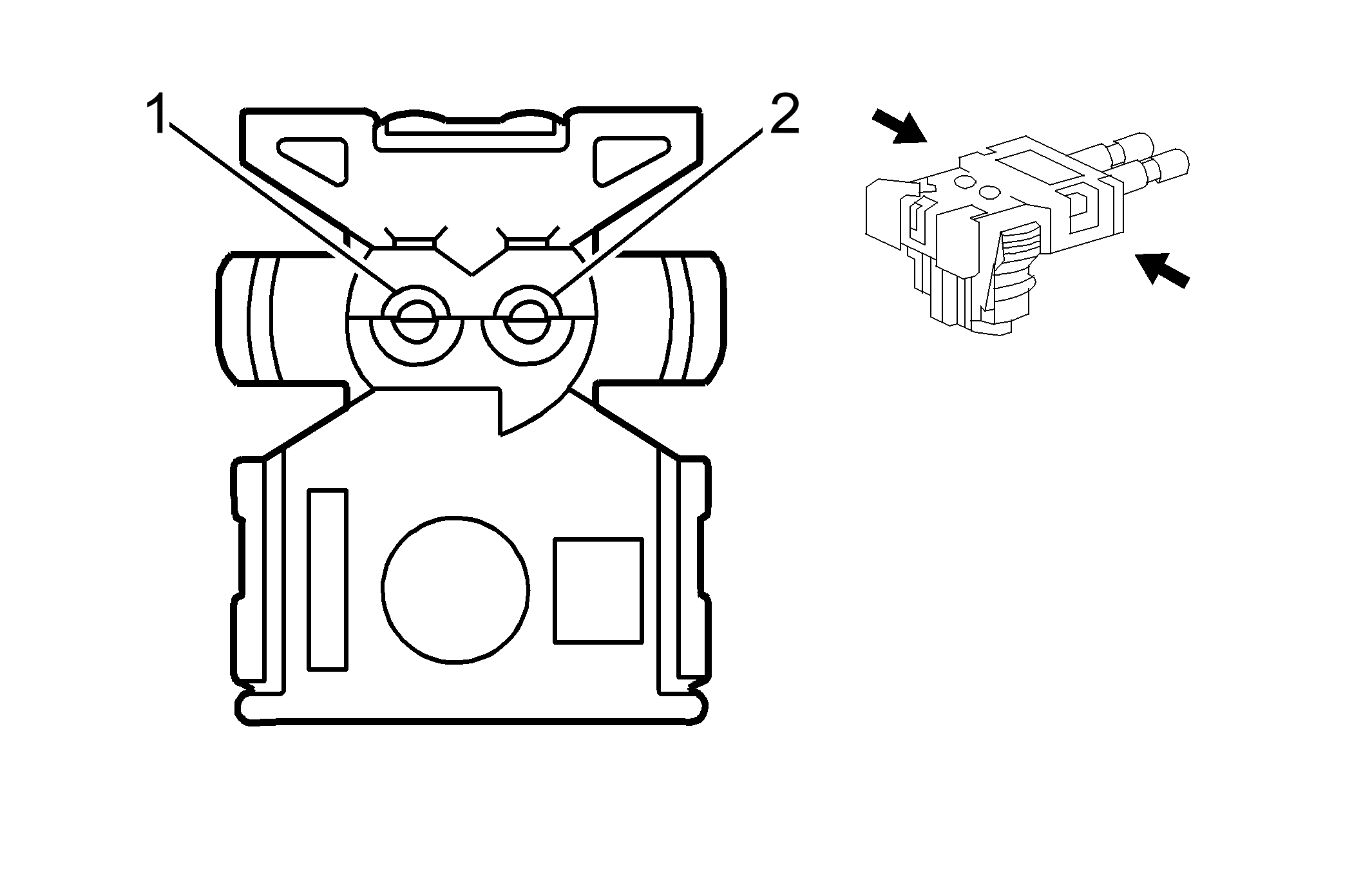

Fig 1: Inflatable Restraint Steering Wheel Module (Except 10 Series) Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	0.5 WH	3021	Steering Wheel Module Stage 1 - High Control
2	0.5 D-GN	3020	Steering Wheel Module Stage 1 - Low Control

Connector Part Information

OEM: 54560235
Service: See Catalog
Description: 2-Way F FFB90-4 Type C (YE)

Terminal Part Information

Terminal/Tray: Service with Pigtail
Core/Insulation Crimp: N/A
Release Tool/Test Probe: See Terminal Repair Kit
