Radio Front Floor Console Speaker Replacement
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Radio Front Floor Console Speaker Replacement

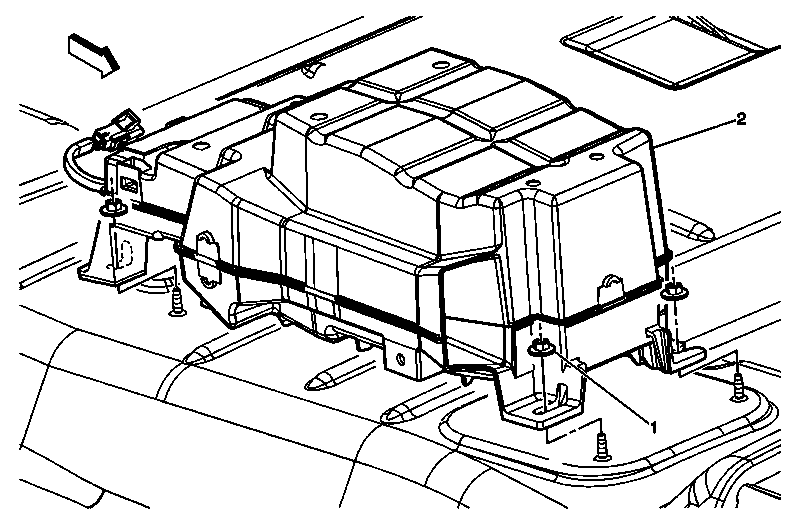

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front floor console assembly. Refer to Front Floor Console Replacement (Except Cadillac) , Front Floor Console Replacement (Cadillac) . |
|
| 1 | Speaker Assembly Nut (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Front Floor Console Speaker Assembly TIP: Disconnect the electrical connectors. |
