Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2011 GMC Yukon XL, 2011 GMC Yukon, 2011 Chevrolet Tahoe, 2011 Chevrolet Suburban, and 2011 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

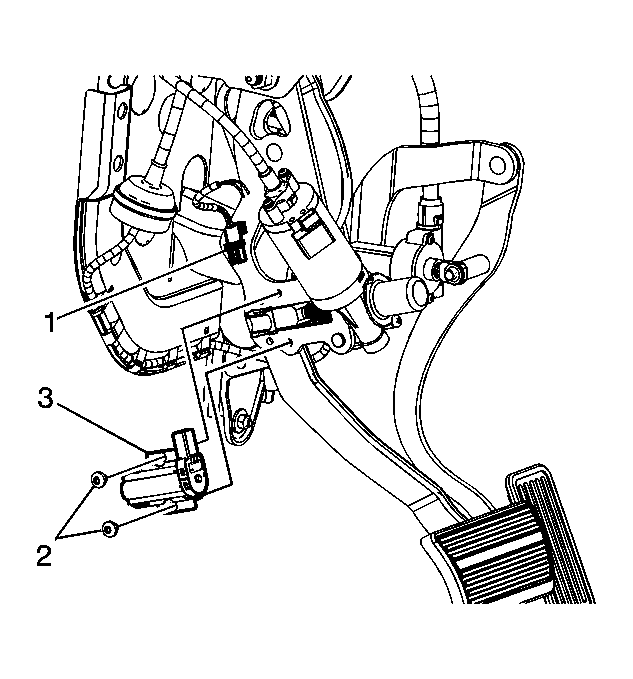

    Fig 1: View Of Brake Pedal Position Sensor, Electrical Connector And Bolts
    GM1687770Courtesy of GENERAL MOTORS CORP.
  1. Remove the driver knee bolster. Refer to Knee Bolster Replacement (Except Cadillac) , Knee Bolster Replacement (Cadillac) .
  2. Remove the fuse block cover.
  3. Disconnect the brake pedal position sensor electrical connector (1).
  4. Remove the brake pedal position sensor bolts (2).
  5. Remove the brake pedal position sensor (3) from the vehicle.
