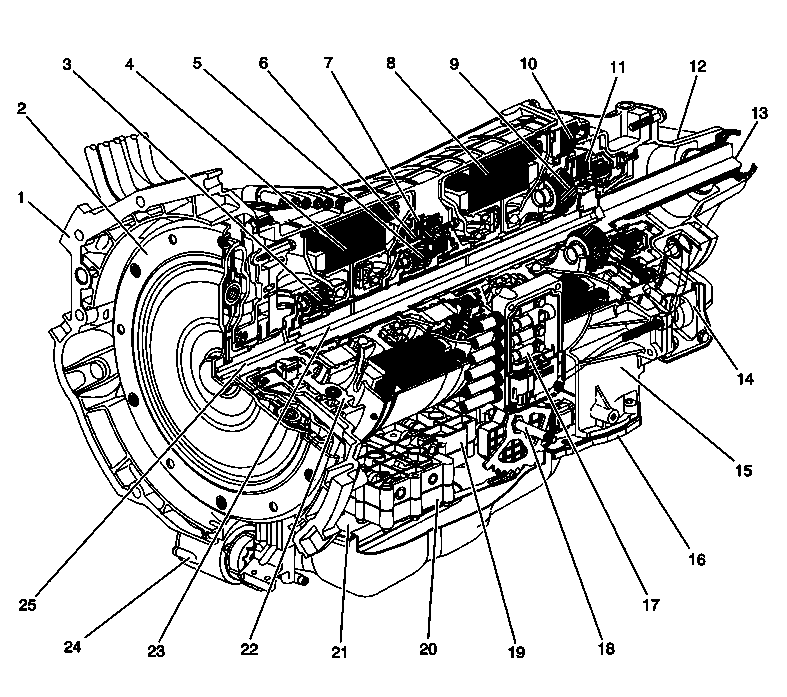

Component Location
WARNING: This page is about a different car, the 2010 GMC Sierra and 2010 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | A/Trans Torque Dampener Housing Assembly |
| 2 | A/Trans Torque Dampener Asembly |
| 3 | Sun Gear Carrier Assembly - 1st Position |
| 4 | Drive Motor (w/Generator) Assembly - 1st Position |
| 5 | Sun Gear Carrier Assembly - 2nd Position |
| 6 | 1-3 Clutch Housing Assembly |
| 7 | 4th Clutch Assembly |
| 8 | Drive Motor (w/Generator) Assembly - 2nd Position |
| 9 | Sun Gear Carrier Assembly - 3rd Position |
| 10 | 1-2 Clutch Assembly |
| 11 | 2-3-4 Clutch Assembly |
| 12 | 2WD Output Housing Extension Assembly |
| 13 | Output Shaft Assembly |
| 14 | Park Pawl Cover |
| 15 | A/Trans Case Assembly |
| 16 | A/Trans Fluid Pan Assembly |
| 17 | Drive Motor Generator Power Inverter Module Cable Assembly - 3 Phase |
| 18 | A/Trans Manual Shift Shaft Position Switch Assembly |
| 19 | Control Valve Upper Body Assembly |
| 20 | Control Valve Channel Plate |
| 21 | A/Trans Fluid Filter Assembly |
| 22 | A/Trans Fluid Pump Cover Assembly |
| 23 | Main Shaft Assembly |
| 24 | A/Trans Auxiliary Fluid Pump Assembly |
| 25 | Input Shaft |
