Rear Spring Rear Stop Replacement

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

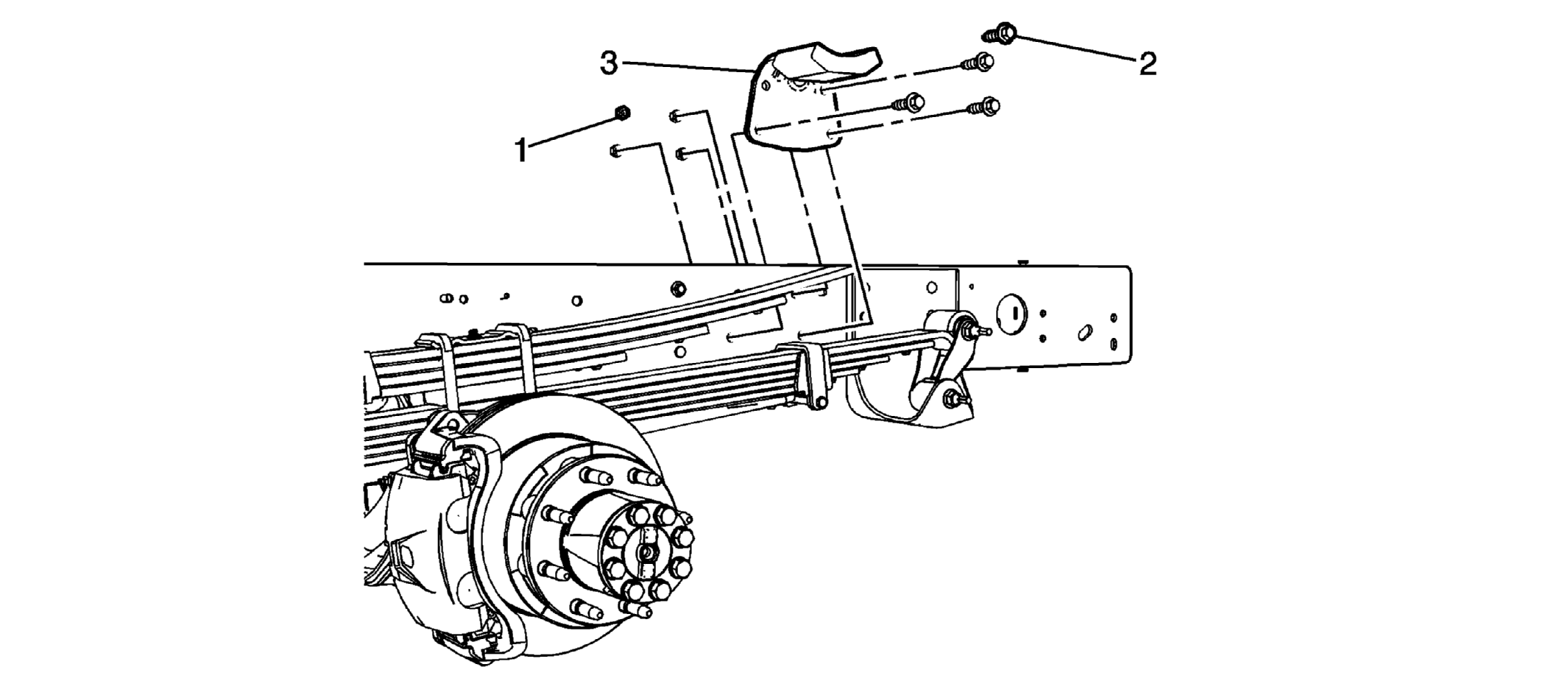

Fig 1: Rear Spring Rear Stop

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
1	Rear Spring Rear Stop Nut (Qty: 4) NOTE: The auxiliary fuel tank must be removed from the vehicle to gain access to the left and right rear spring stop nuts. Refer to Auxiliary Fuel Tank Replacement .
2	Rear Spring Rear Stop Bolt (Qty: 4) CAUTION: Refer to Component Fastener Tightening Caution . Tighten: 50 N.m (37 lb ft)
3	Rear Spring Stop
