OnStar Schematics

WARNING: This page is about a different car, the 2010 GMC Sierra, 2010 GMC Cab & Chassis Sierra, 2010 Chevrolet Silverado, and 2010 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

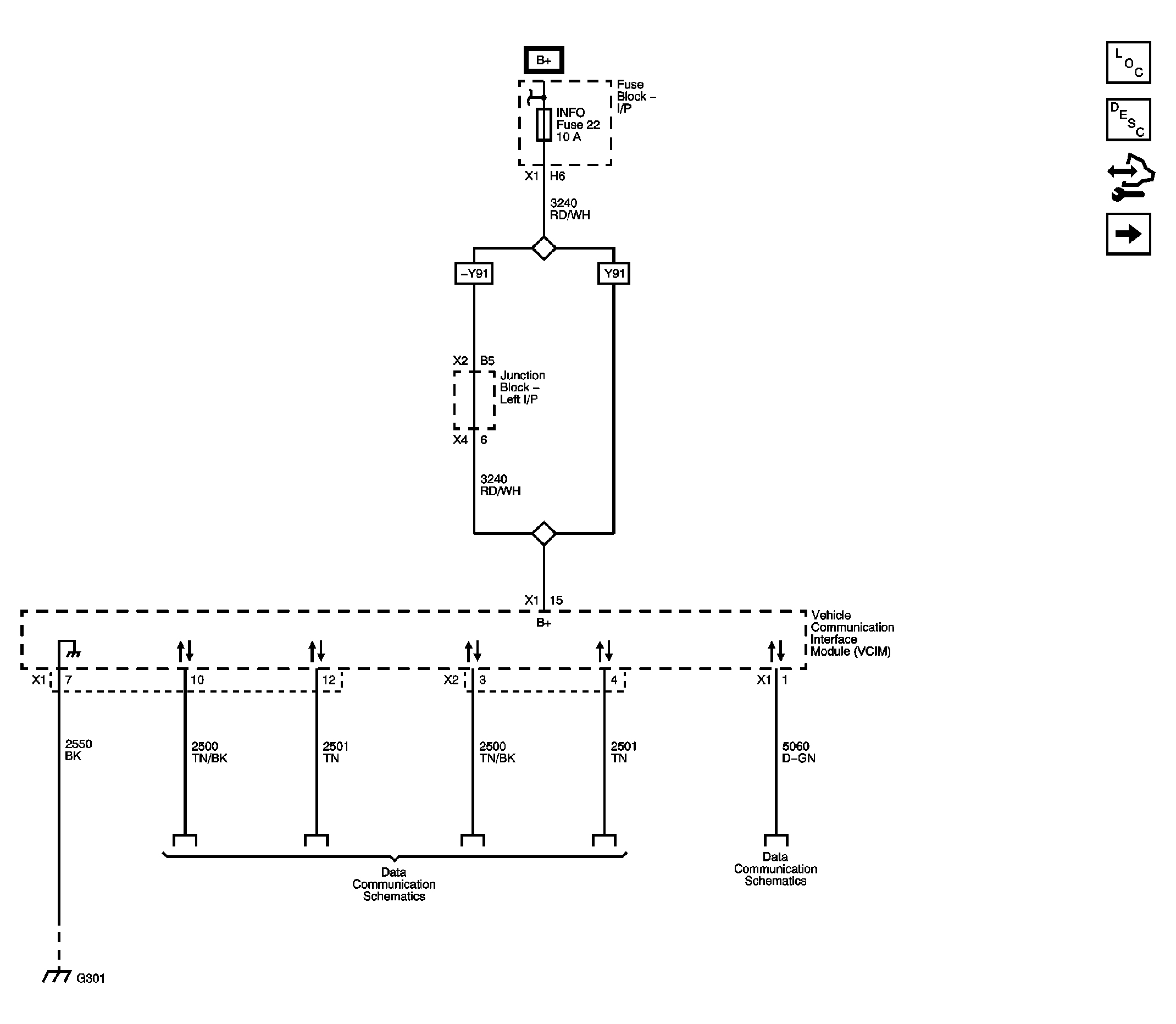

Fig 1: Module Power, Ground, and Serial Data
GM2224058Courtesy of GENERAL MOTORS CORP.

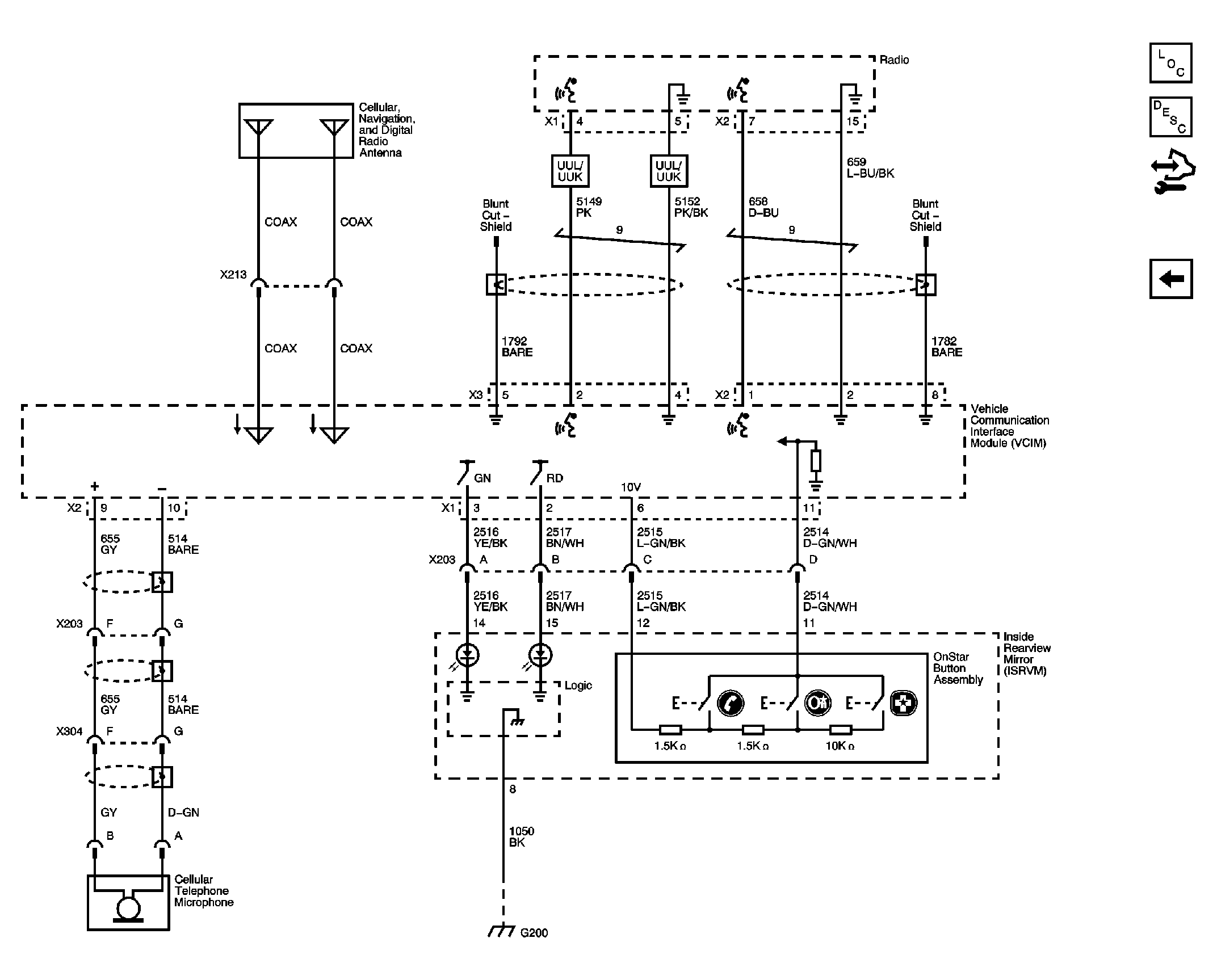

Fig 2: Communication Signals and Controls
GM2224061Courtesy of GENERAL MOTORS CORP.
