Engine Shield Replacement
WARNING: This page is about a different car, the 2009 GMC Sierra, 2009 GMC Cab & Chassis Sierra, 2009 Chevrolet Silverado, and 2009 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

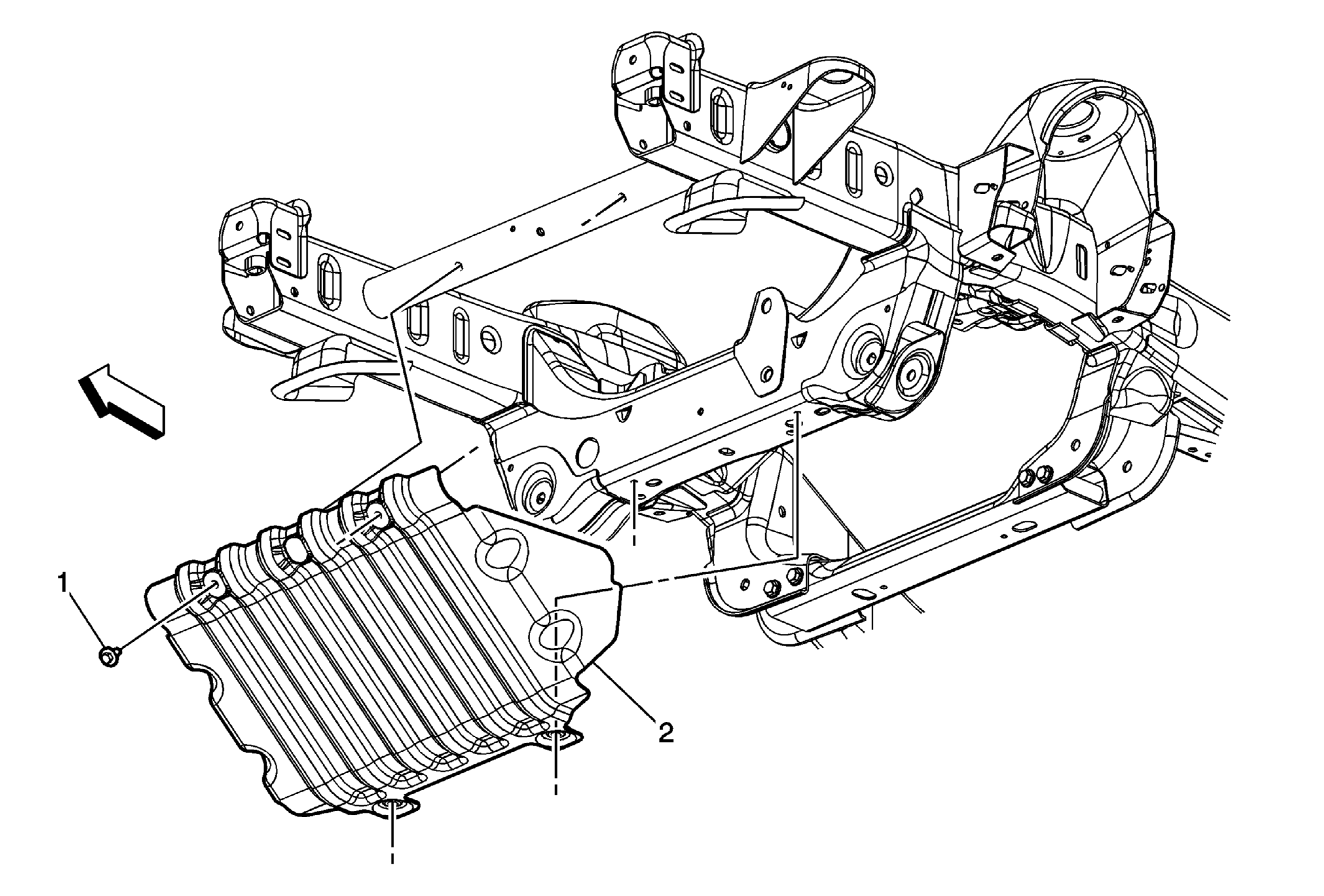

| Callout | Component Name |
|---|---|
| 1 | Engine Shield Bolts (Qty: 4)
CAUTION:
Refer to Fastener Caution
.
Tighten: 20 N.m (15 lb ft) |
| 2 | Engine Shield |
