Shift Lock Control Schematics

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

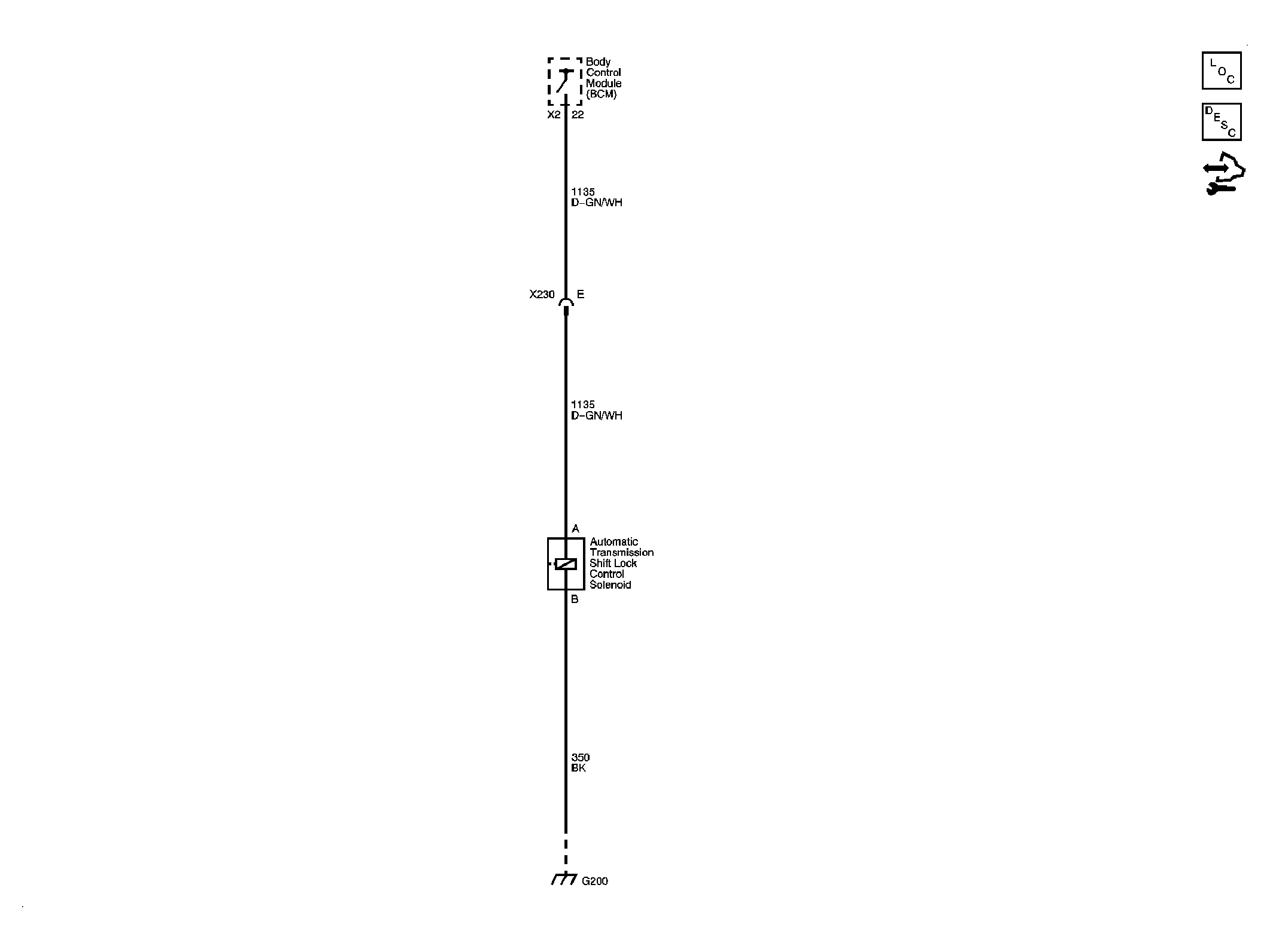

Fig 1: View of Shift Lock Control Schematic
GM1923833Courtesy of GENERAL MOTORS CORP.
