Radiator Inlet Hose Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure: Drain the coolant. Refer to Cooling System Draining and Filling (GE 47716) or Cooling System Draining and Filling (Static Fill) . |
|

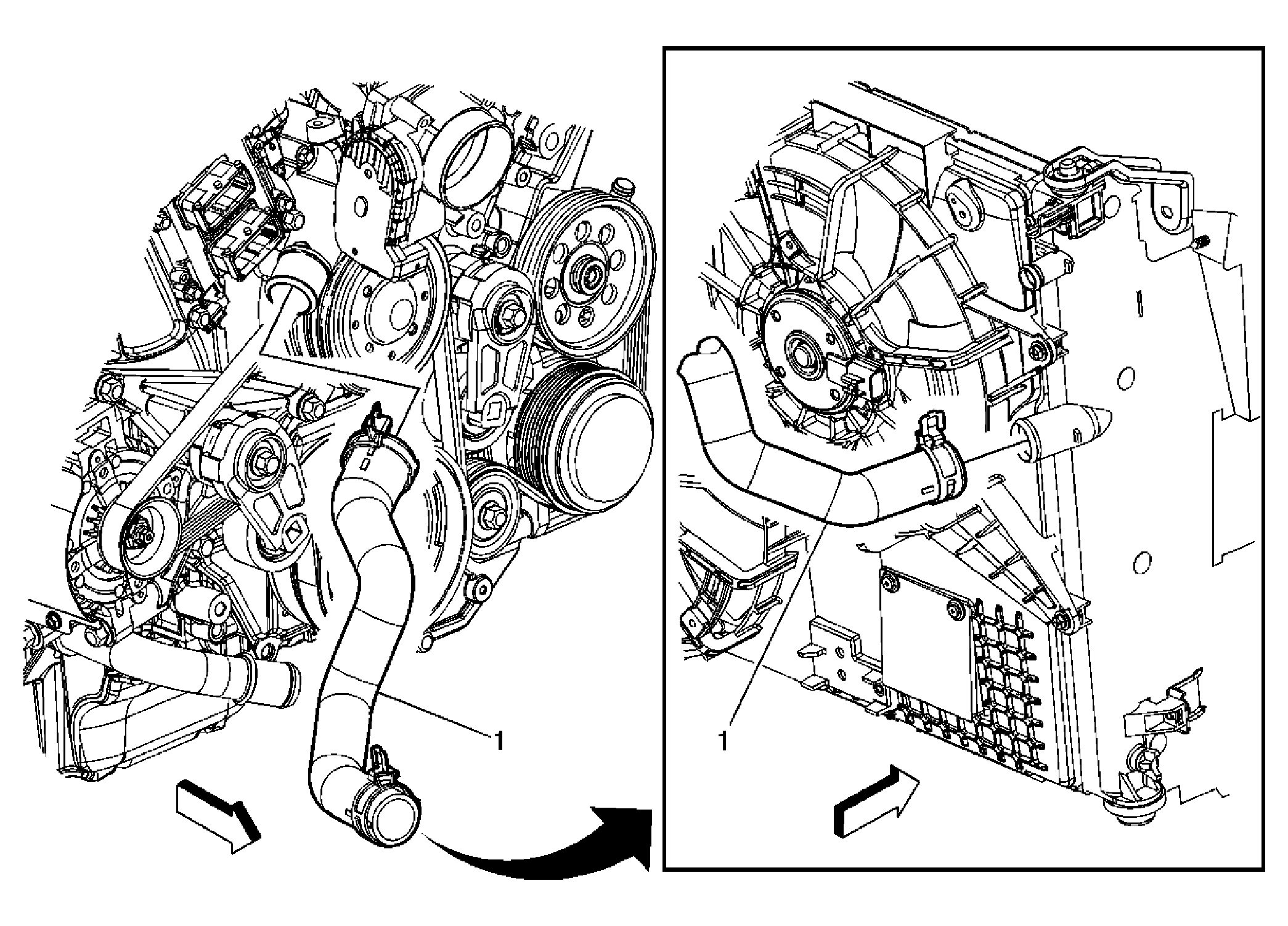

| 1 | Radiator Inlet Hose Procedure: Using J 38185 reposition the radiator inlet hose clamps. See Special Tools . Special Tools: J 38185 Hose Clamp Pliers. See Special Tools . |
