Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View of Rear Differential Assembly

Courtesy of GENERAL MOTORS CORP.

Install the rear differential assembly (1) in the rear frame.

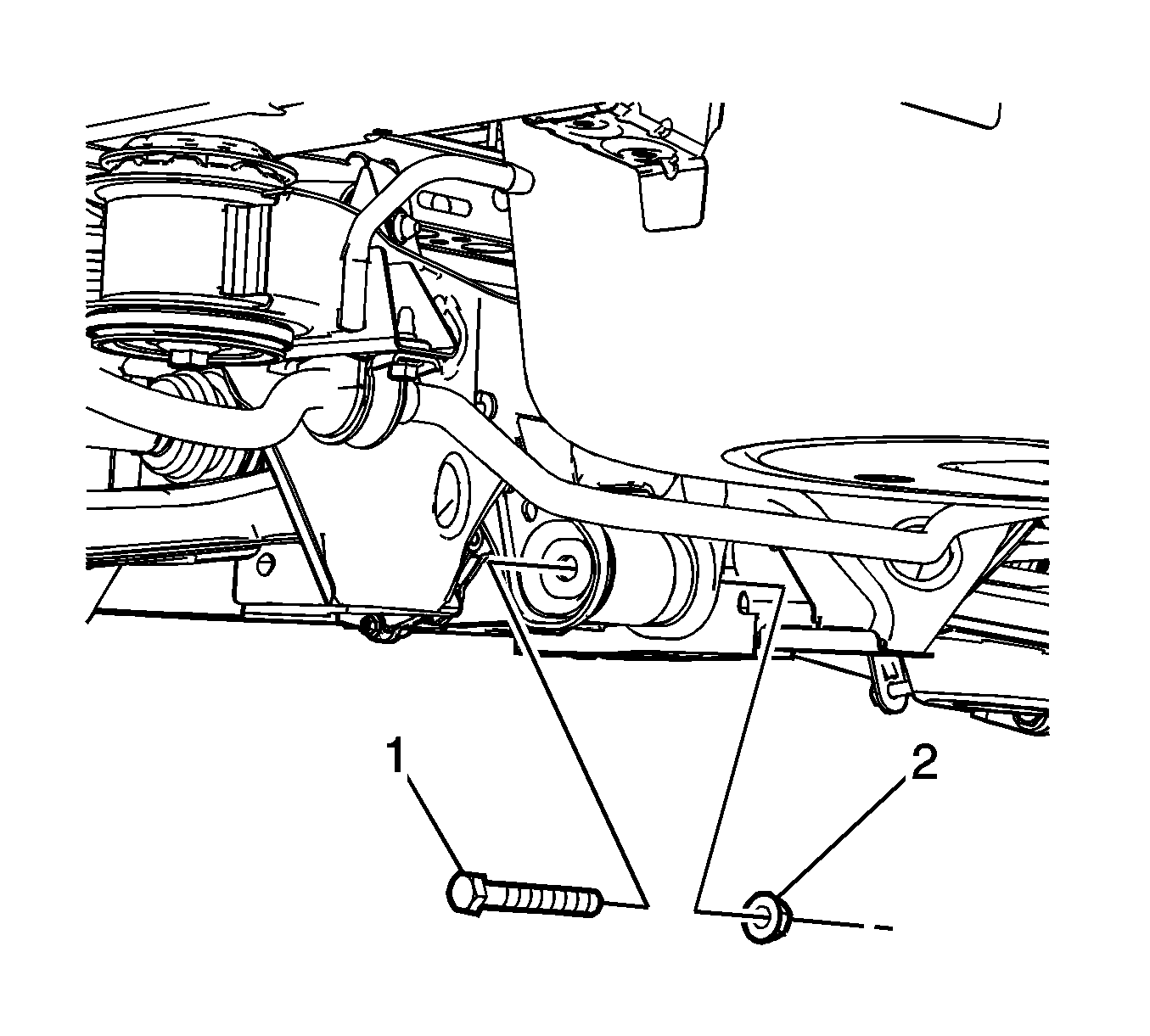

Fig 2: View of Rear Differential Mounting Bolts

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the rear differential mounting bolt (1) and nut (2).
Tighten: Tighten the rear differential mounting bolt (1) to 175 N.m (129 lb ft).

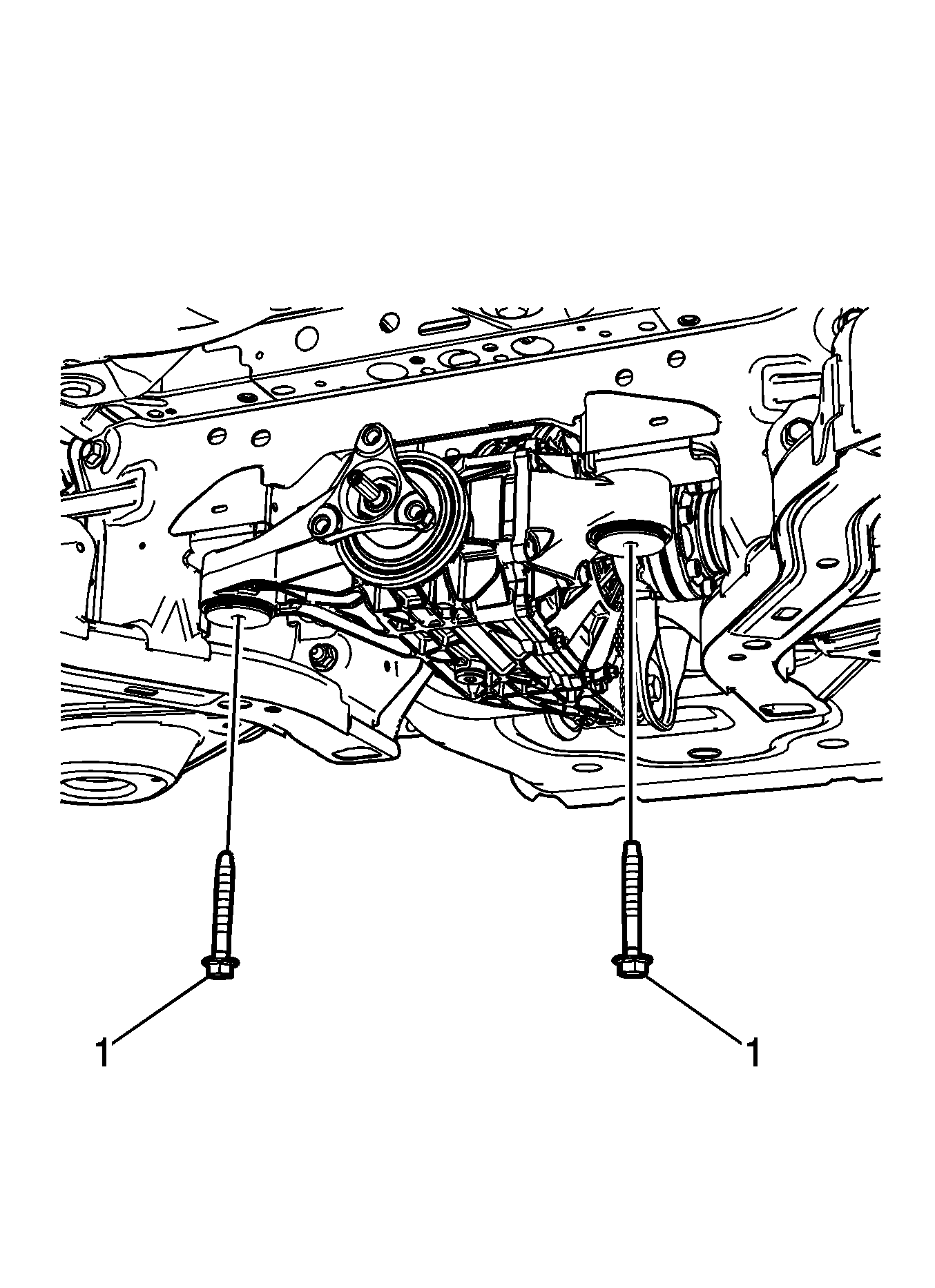

Fig 3: View of Front Mounting Bolts

Courtesy of GENERAL MOTORS CORP.

Install the rear differential front mounting bolts (1).
Tighten: Tighten the rear differential mounting bolt (1) to 175 N.m (129 lb ft).
Remove the transmission jack stand.
Install the left and right rear wheel drive shafts.
- For the left wheel drive shaft, refer to Front Wheel Drive Shaft Replacement - Left Side .
- For the right wheel drive shaft, refer to Front Wheel Drive Shaft Replacement - Right Side .
Install the rear propeller shaft. Refer to Rear Propeller Shaft Replacement (RWD) or Rear Propeller Shaft Replacement (AWD) .
Fill the differential with fluid, if needed. Refer to Lubricant Change .
Install the tires and wheels. Refer to Tire and Wheel Removal and Installation .
Remove the support and lower the vehicle.
