Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the power steering pump and bracket to the vehicle.
    2. Fig 1: View Of Power Steering Bracket Bolts
    GM888286Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
    IMPORTANT: Start all fasteners by hand before finalizing any torques.
    IMPORTANT: Torque the power steering pump bolts in the order indicated in the graphic.
  2. Install the power steering pump bracket bolts.

    Tighten:  Tighten the bolts to 50 N.m (37 lb ft).

    3. Fig 2: View Of Power Steering Gear Inlet Hose & Power Steering Pump
    GM1304375Courtesy of GENERAL MOTORS CORP.
  3. Connect the power steering gear inlet hose fitting to the power steering pump.

    Tighten:  Tighten the fitting to 38 N.m (28 lb ft).

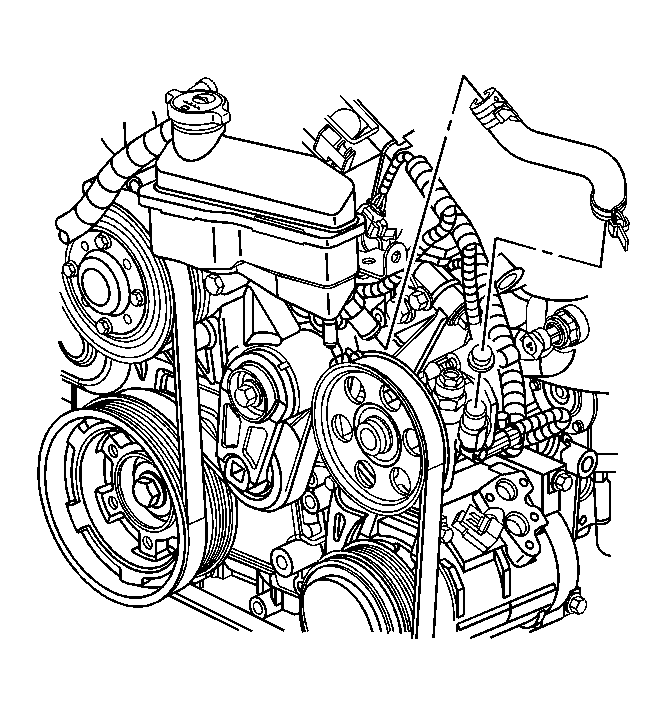

    4. Fig 3: Identifying Power Steering Reservoir Outlet Hose
    GM1300041Courtesy of GENERAL MOTORS CORP.
  4. Connect the power steering fluid reservoir outlet hose to the power steering pump.
  5. Clean any excess fluid from the vehicle and remove the drain pans.
  6. Install the power steering pump pulley. Refer to Power Steering Pump Pulley Replacement .
  7. Install the front air deflector. Refer to Front Air Deflector Replacement .
  8. Fill and bleed the power steering system. Refer to Power Steering System Bleeding .
