Overhead Console Reading Lamp and Bulb Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

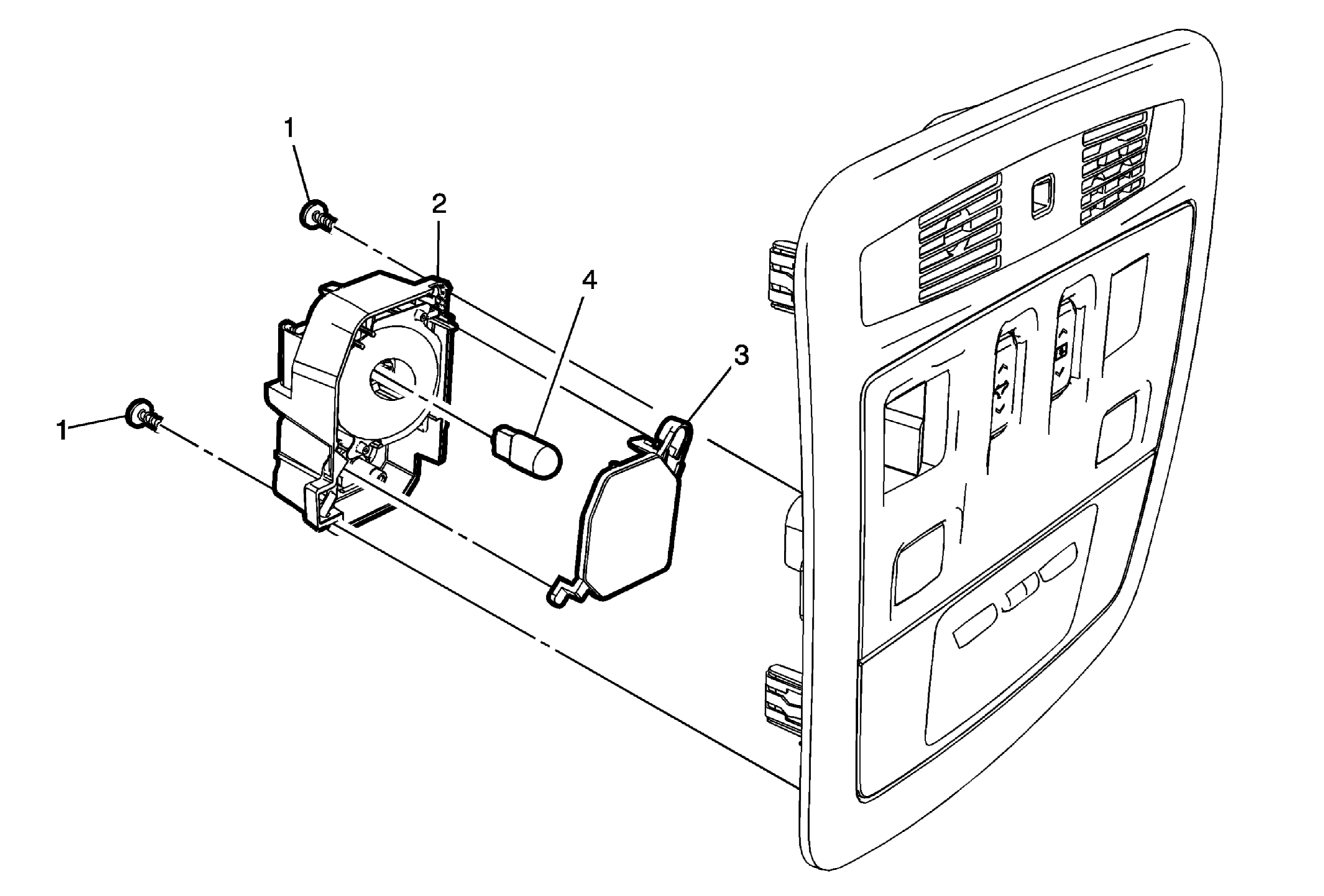

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the roof console. Refer to Roof Console Replacement . |
|
| 1 | Overhead Console Reading Lamp Screw (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 2 N.m (18 lb in) |
| 2 | Overhead Console Reading Lamp Housing |
| 3 | Overhead Console Reading Lamp Bulb Procedure: Pull the bulb straight out. |
