Installation Procedure

WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

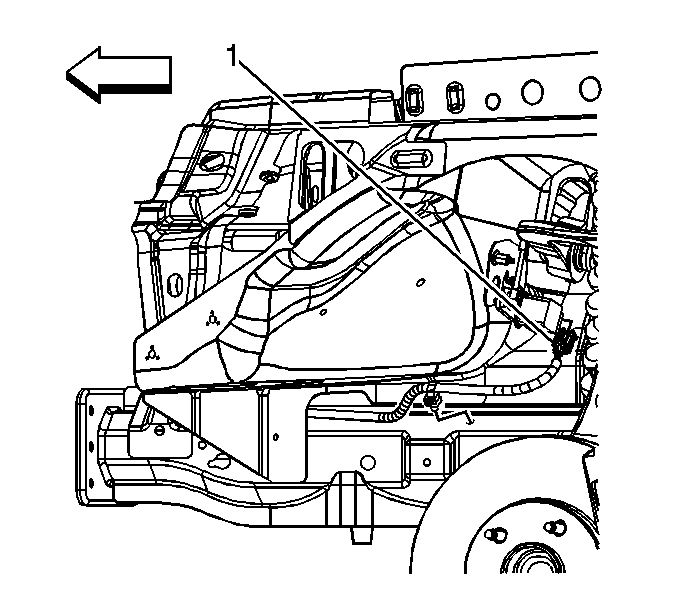

    Fig 1: View Of Front Headlamp Leveling Sensor Electrical Connector
    GM802719Courtesy of GENERAL MOTORS CORP.
  1. Position and rotate the sensor (1) and the locking tab into the holes in the wheelhouse panel.
    2. NOTE: Refer to Fastener Notice .
    Fig 2: View Of Ball & Socket
    GM802716Courtesy of GENERAL MOTORS CORP.
  2. Secure the clinch nut (2) on the stud to the wheelhouse panel.

    Tighten:  Tighten 9 N.m (80 lb in).

  3. Lock the ball socket (1) to upper control arm ball stud.
    4. Fig 3: View Of Front Headlamp Leveling Sensor Electrical Connector
    GM802719Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector (1) to the sensor assembly.
  5. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  6. Lower the vehicle.
  7. Set up and program the headlamp control module. Refer to Control Module References .
