Headlamp Bracket Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

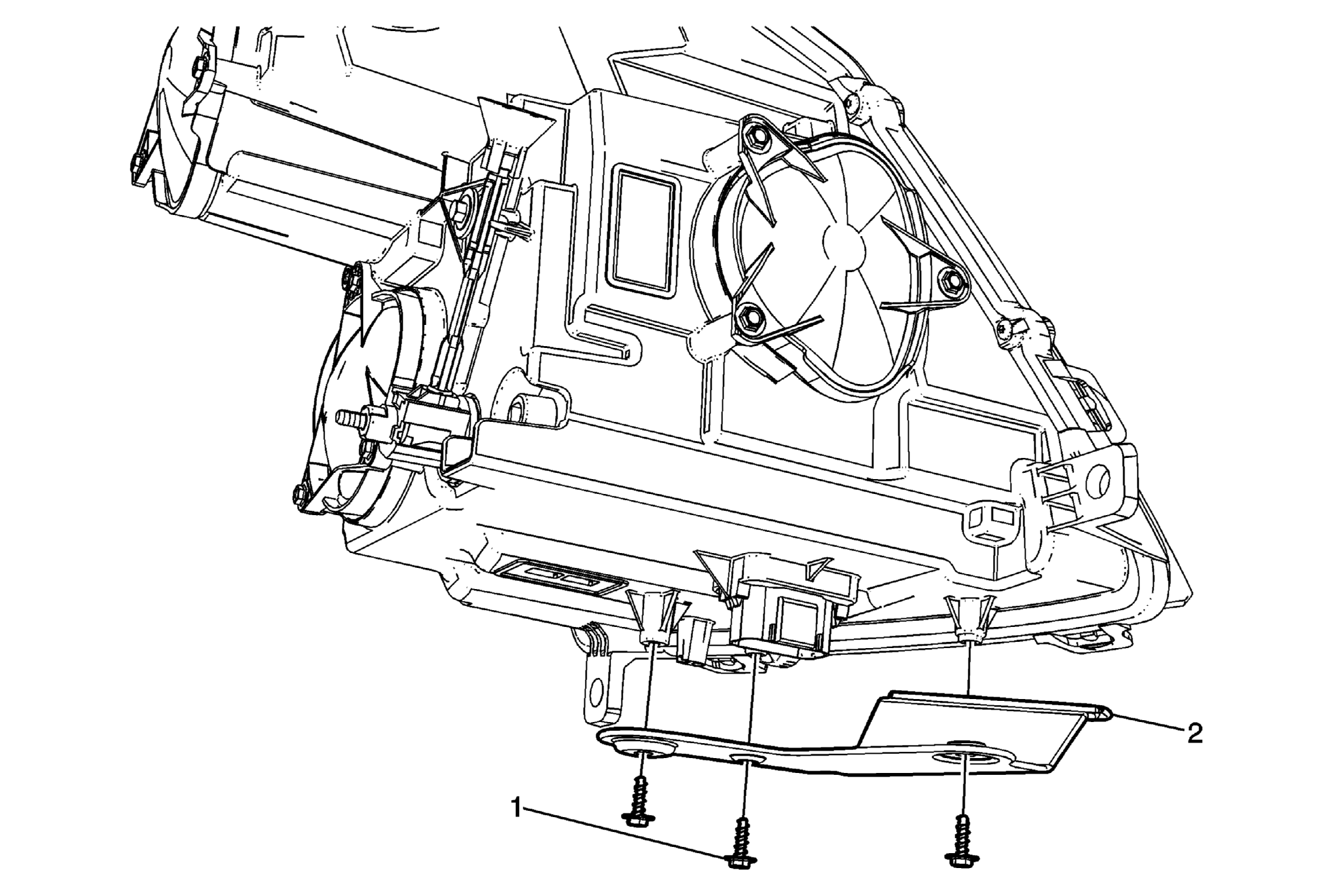

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the headlamp capsule. Refer to Headlamp Capsule Replacement . |
|
| 1 | Headlamp Bracket Screw (Qty: 3) Procedure: Hand tighten the screws only, in order to secure the bracket to the bottom of the headlamp assembly. |
| 2 | Headlamp Bracket |
