Linear Interconnect Network (LIN) Bus Wiring Schematics

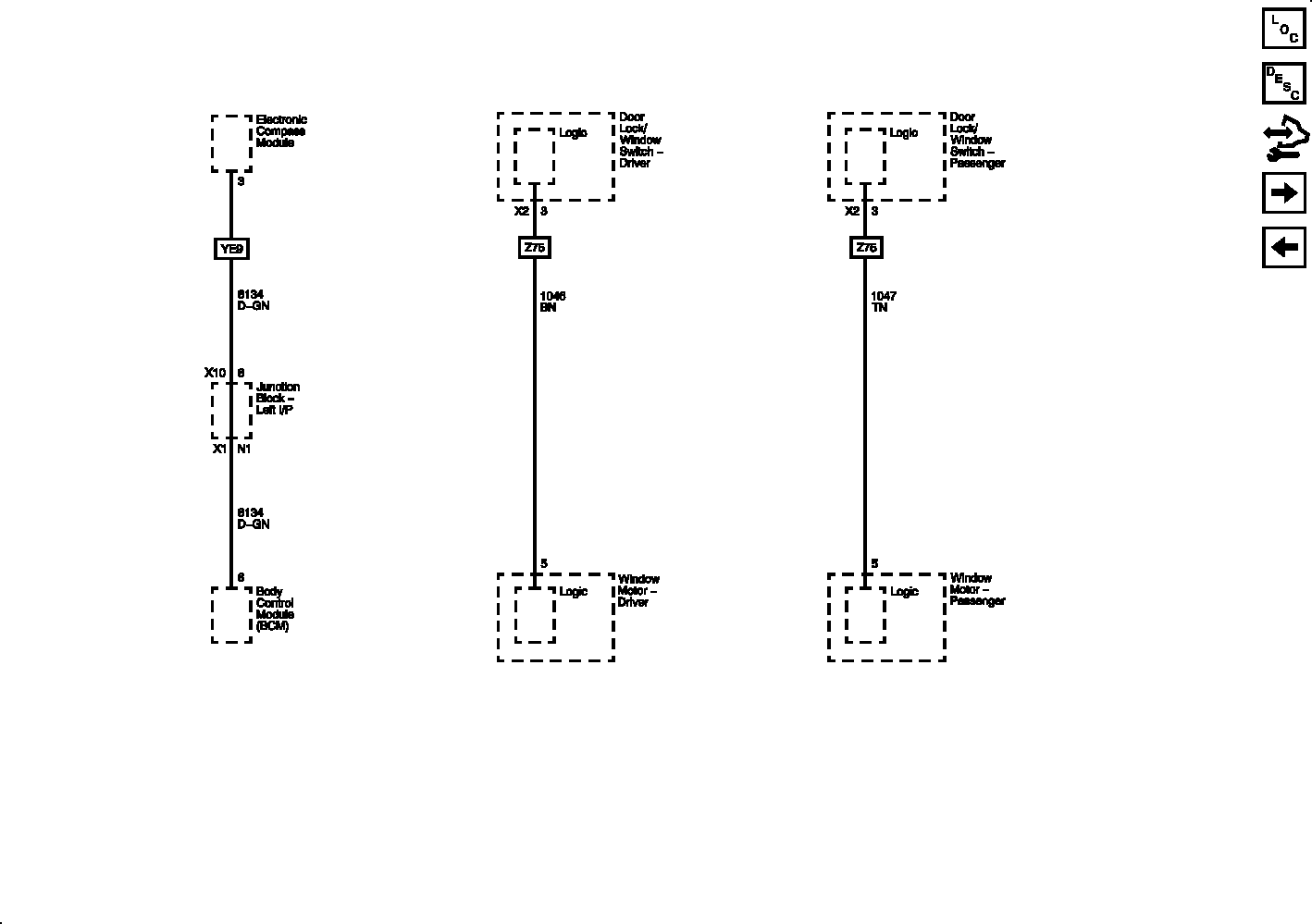

Fig 1: Linear Interconnect Network (LIN) Bus Wiring Schematics

GM2635351

Courtesy of GENERAL MOTORS COMPANY
