Power Moding and Interior Light References Wiring Schematics

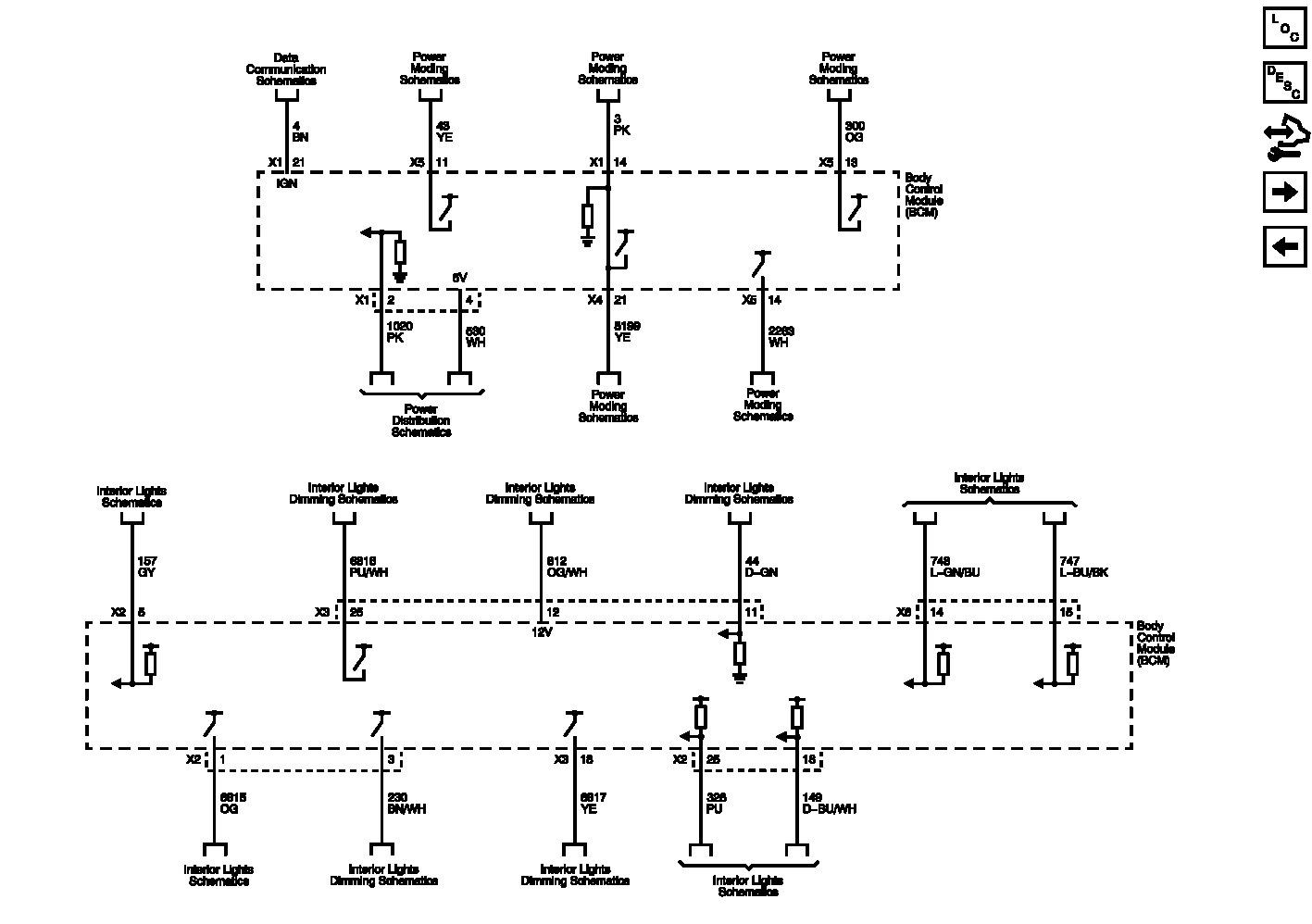

Fig 1: Power Moding and Interior Light References Wiring Schematics

GM2643810

Courtesy of GENERAL MOTORS COMPANY
