Cadillac
>>
2012
>>
Escalade EXT
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Data Communications System
>>
Schematic Wiring Diagrams
>>
Body Control System Wiring Schematics
>>
Module Power, Ground, and Serial Data Wiring Schematics
Module Power, Ground, and Serial Data Wiring Schematics

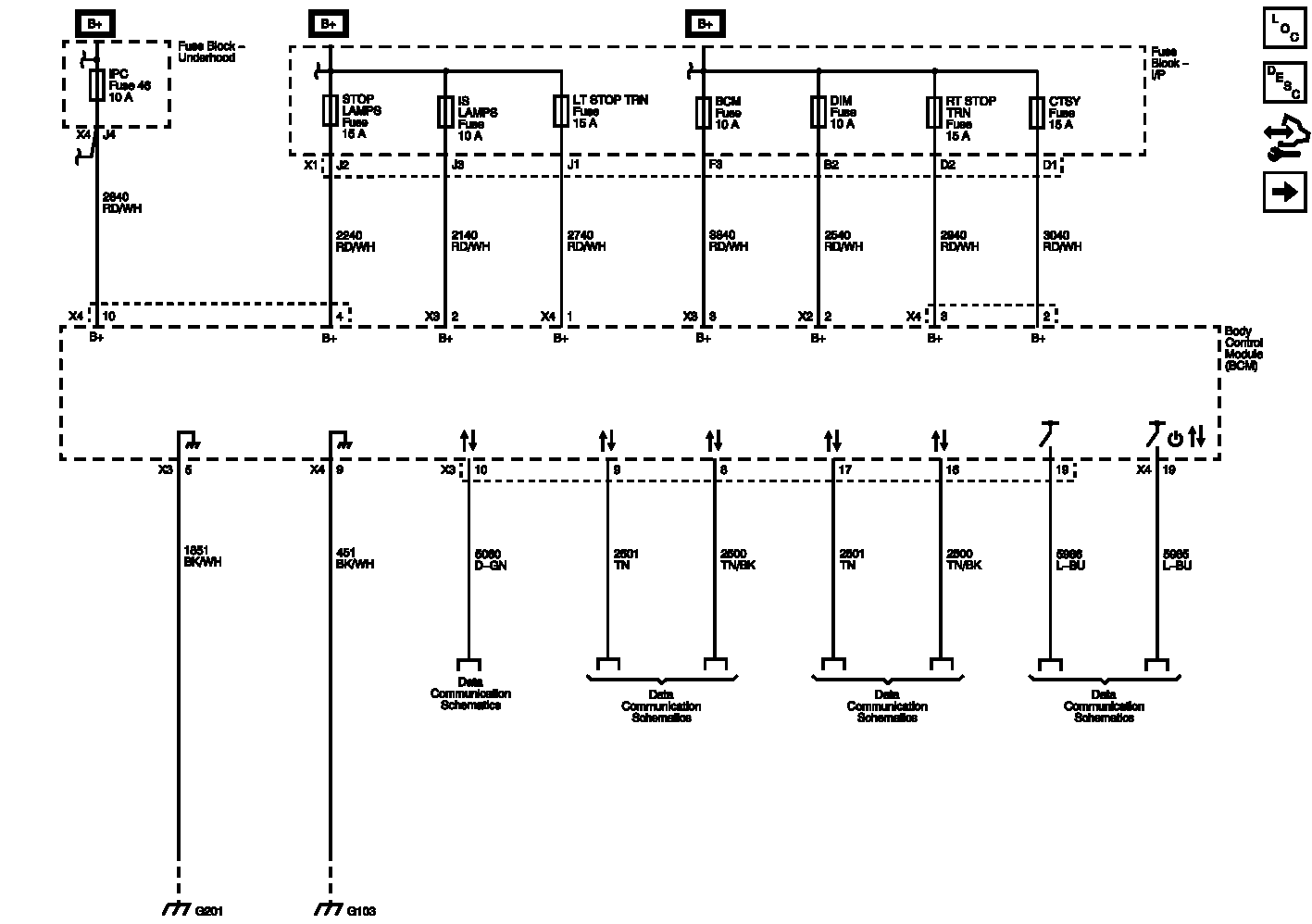

Fig 1: Module Power, Ground, and Serial Data Wiring Schematics
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
