Exterior Light References Wiring Schematics

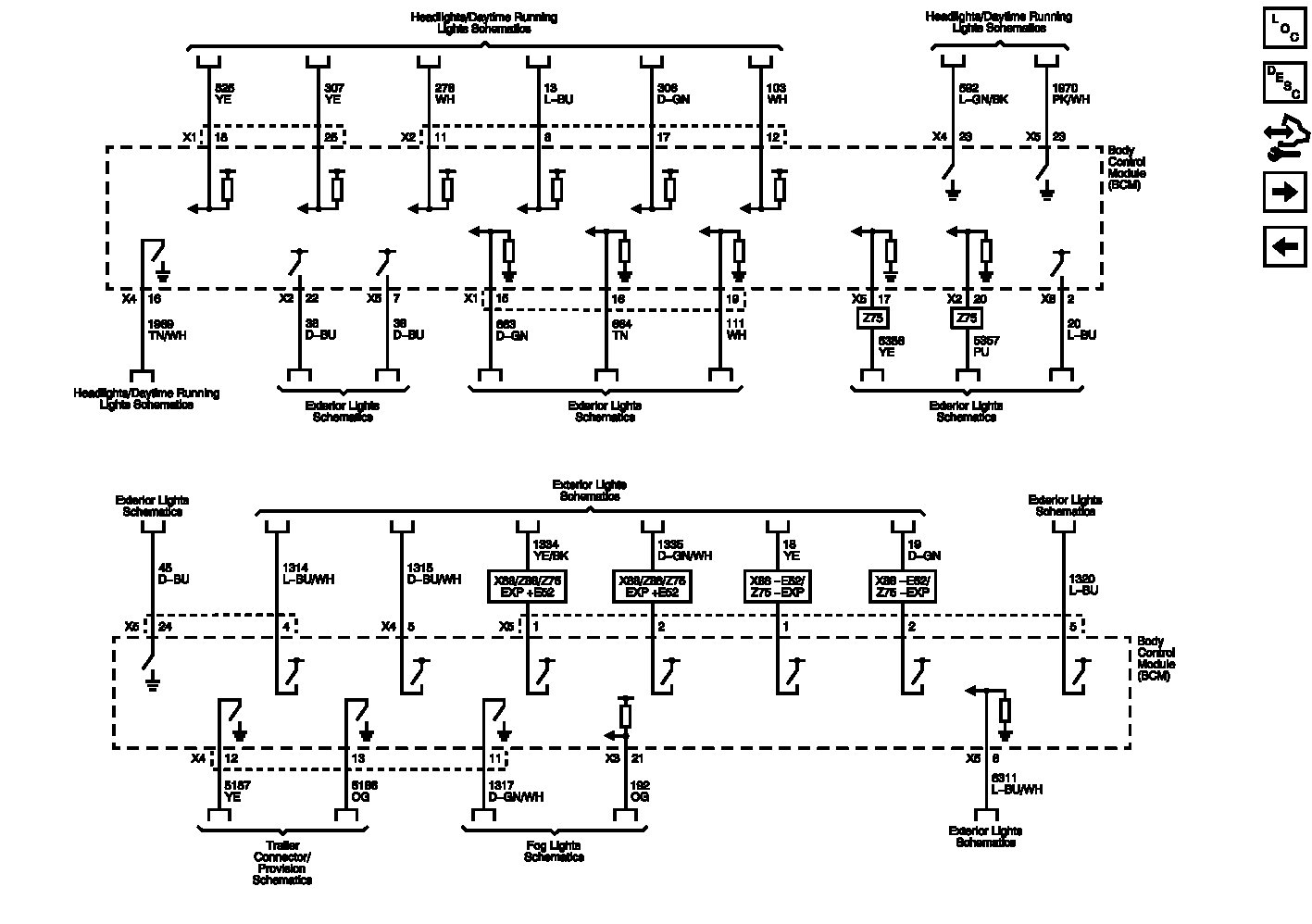

Fig 1: Exterior Light References Wiring Schematics

GM2643820

Courtesy of GENERAL MOTORS COMPANY
