Installation Procedure

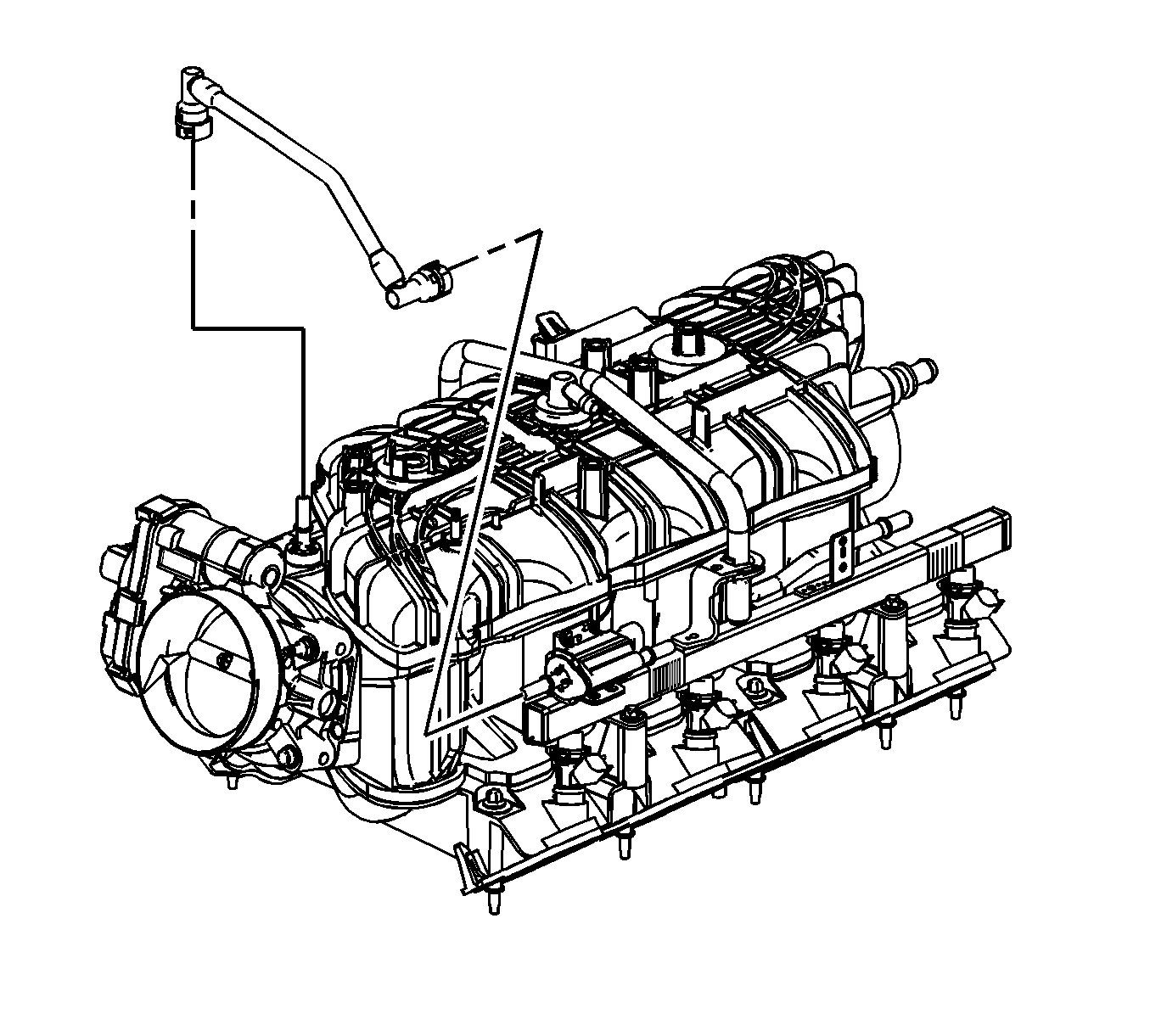

    Fig 1: View of EVAP Line & Canister Purge Solenoid
    GM1706143Courtesy of GENERAL MOTORS COMPANY
  1. Connect the EVAP line quick connect fitting at the EVAP canister purge solenoid. Refer to Plastic Collar Quick Connect Fitting Service .
  2. Connect the EVAP line quick connect fitting at the intake manifold. Refer to Plastic Collar Quick Connect Fitting Service .
  3. Install the upper intake manifold sight shield. Refer to Upper Intake Manifold Sight Shield Replacement .
