Camshaft Position Sensor Replacement (Without Actuator)

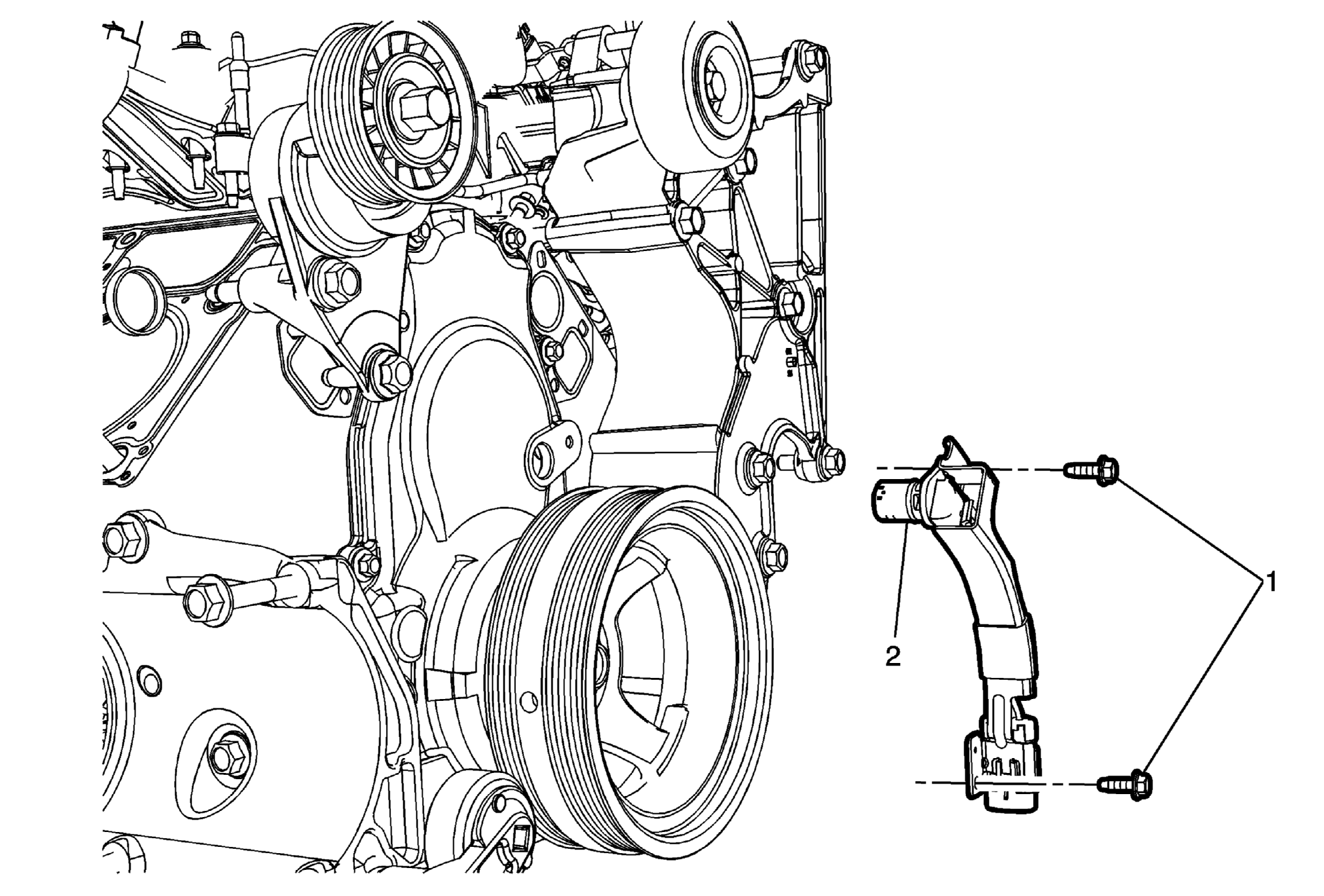

Fig 1: Identifying Camshaft Position Sensor (Without Actuator)

Courtesy of GENERAL MOTORS COMPANY

Camshaft Position Sensor Replacement (Without Actuator)

Callout	Component Name
1	Camshaft Position Sensor Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  12 N.m (106 lb in)
2	Camshaft Position Sensor Procedure  Disconnect the electrical connectors.
