Installation Procedure

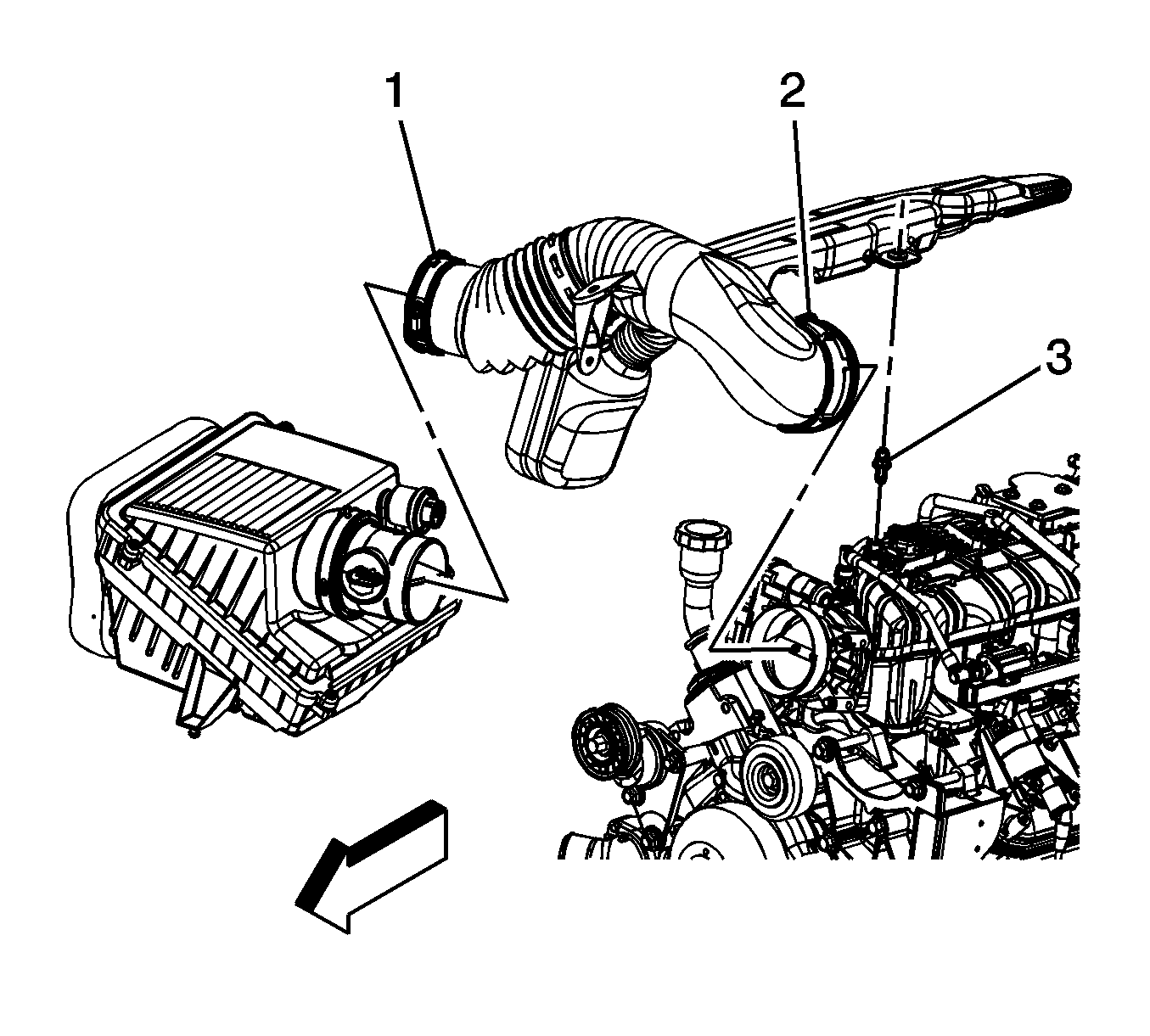

    Fig 1: View Of Air Cleaner Outlet Ducts
    GM1696567Courtesy of GENERAL MOTORS COMPANY
  1. Install the air cleaner outlet duct to the throttle body and MAF/IAT sensor. Ensure that the resonator tab aligns with the stud on the intake manifold.
  2. Push down on the air cleaner outlet duct resonator directly over the resonator tab in order to secure the resonator to the stud on the intake manifold.
    3. CAUTION:

    Refer to Fastener Caution

  3. Tighten the air cleaner outlet duct clamp (2) at the throttle body to 4 N.m(35 lb in).
  4. Tighten the air cleaner outlet duct clamp (1) to 4 N.m(35 lb in) at the MAF/IAT sensor.
  5. Install the radiator inlet hose clamp retainer to the outlet duct.

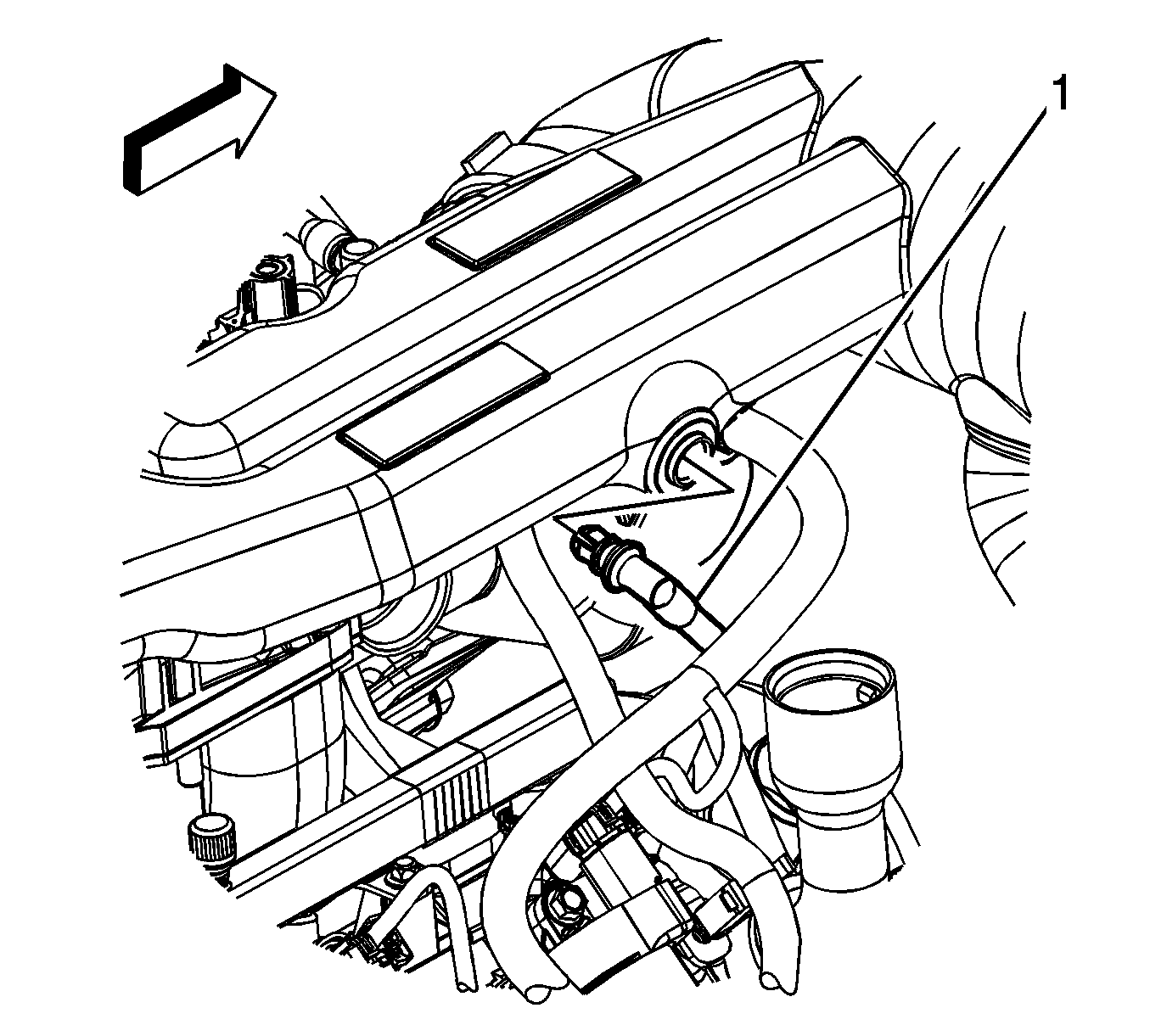

    6. Fig 2: View Of PCV Tube
    GM1696754Courtesy of GENERAL MOTORS COMPANY
  6. Install the PCV line (1) to the air cleaner outlet duct.
  7. Install the intake manifold sight shield. Refer to Upper Intake Manifold Sight Shield Replacement .
