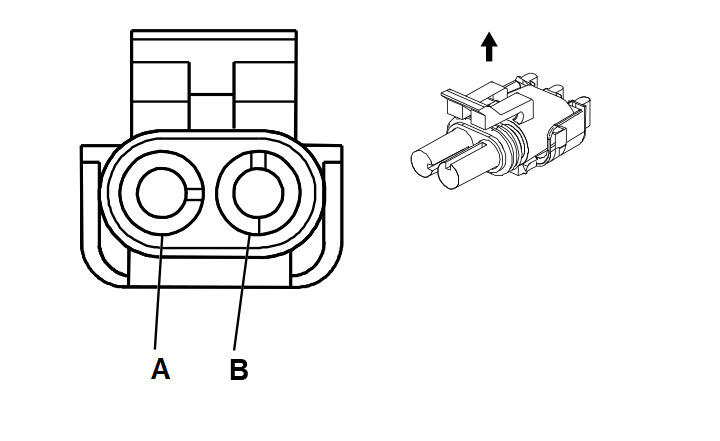

Transmission Power Inverter Module (3 Phase) Cable Cover (HP2)
 Courtesy of
|
Connector Part Information
- Harness Type: Engine
- OEM Connector: 12015792
- Service Connector: 12126452
- Description: 2-Way F Weather Pack Series, Sealed (BK)
|
Terminal Part Information
- Terminated Lead: Service by Connector Assembly- 12126452
- Release Tool: J-38125-10A
- Diagnostic Test Probe: J-35616-8 (OG)
- Terminal/Tray: 12089188/3
- Core/Insulation Crimp: E/5
|
Transmission Power Inverter Module (3 Phase) Cable Cover (HP2)
| Pin |
Wire |
Circuit |
Function |
| A |
0.5 OG |
5690 |
High Voltage Interlock Circuit- |
| B |
0.5 YE |
5690 |
High Voltage Interlock Circuit- |
