Stop Lamp Switch

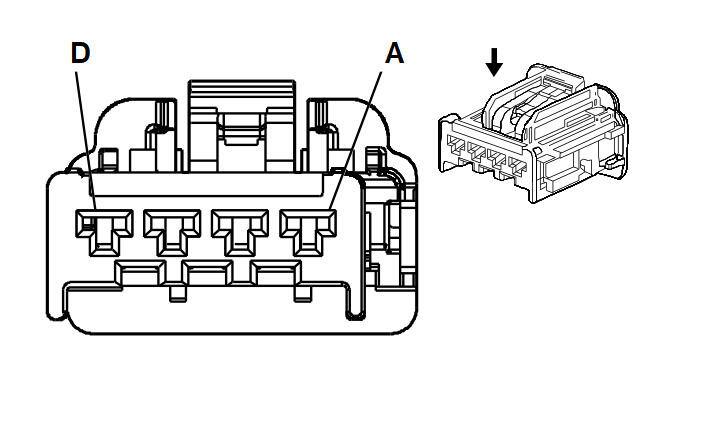

GM1866237Courtesy of
Connector Part Information
  • Harness Type: Brake/Clutch
  • OEM Connector: 15466671
  • Service Connector: 19149301
  • Description: 4-Way F GT 280 Series (L-GY)
Terminal Part Information
  • Terminated Lead: 13575753
  • Release Tool: J-38125-553
  • Diagnostic Test Probe: J-35616-4A (PU)
  • Terminal/Tray: 15304711/8
  • Core/Insulation Crimp: E/A
Stop Lamp Switch

Pin Wire Circuit Function
A 0.35 L-BU/WH 6311 Brake Signal
B 0.35 PK 239 Ignition Voltage
C 0.35 OG/WH 812 12-Volt Reference or I/P Dimming Voltage Reference
D 0.35 PU 7062 Brake Pedal Switch Normally Closed Contact Signal
