Removal Procedure

  1. Release the park brake.
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .

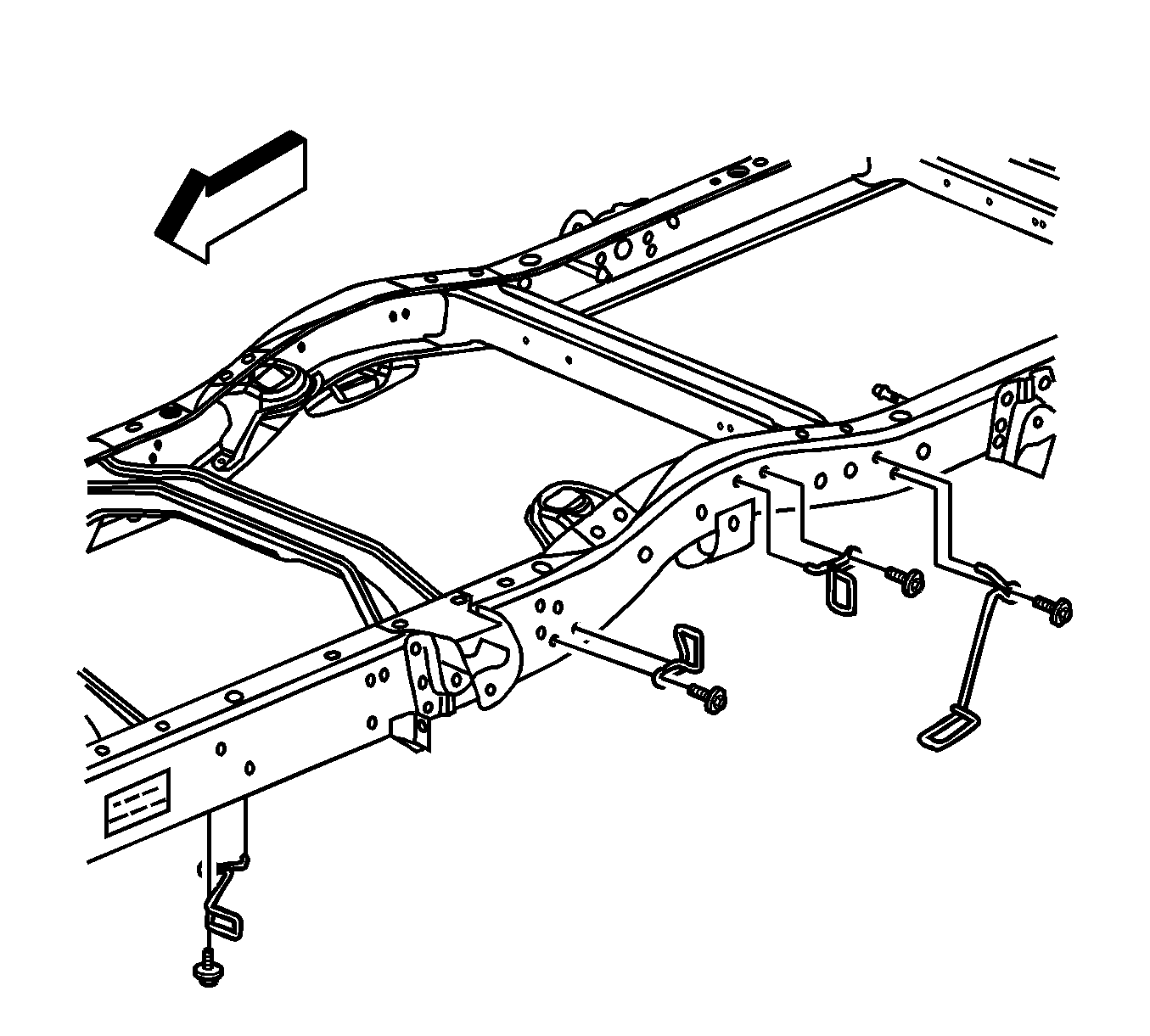

    3. Fig 1: View Of Park Brake Cable Guide Bolt (Cutaway Vehicle)
    GM1208291Courtesy of GENERAL MOTORS COMPANY
  3. Remove the park brake cable guide bolt from the frame.
  4. Remove the park brake cable guide.
  5. Remove the park brake cable guide from the park brake cable.
