Front Side Door Window Rear Channel Replacement

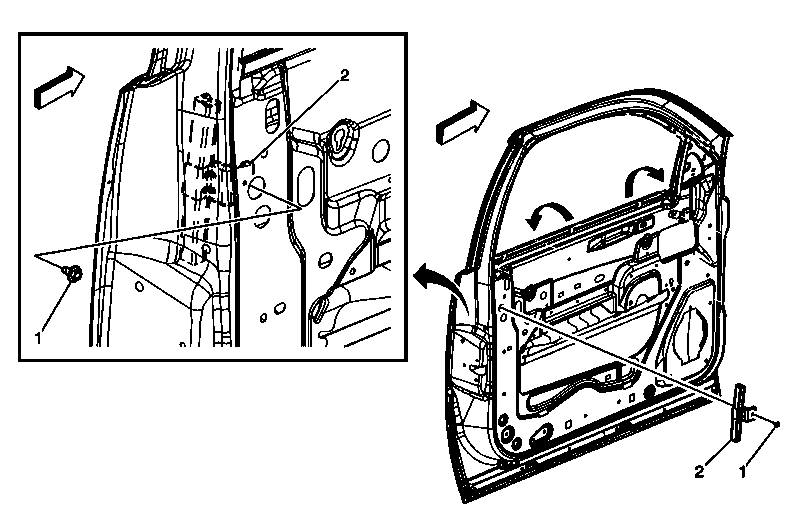

Fig 1: View Of Front Side Door Window Channels & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Position the door window as needed for service. Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
1	Front Door Window Run Channel Rear Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Front Door Window Rear Run Channel TIP: Raise the door window to the fully close position to gain access the run channel.

Callout

Component Name

Preliminary Procedures

Position the door window as needed for service.
Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .

Front Door Window Run Channel Rear Bolt

CAUTION:

Tighten
10 N.m (89 lb in)

Front Door Window Rear Run Channel
TIP: Raise the door window to the fully close position to gain access the run channel.
