Installation Procedure

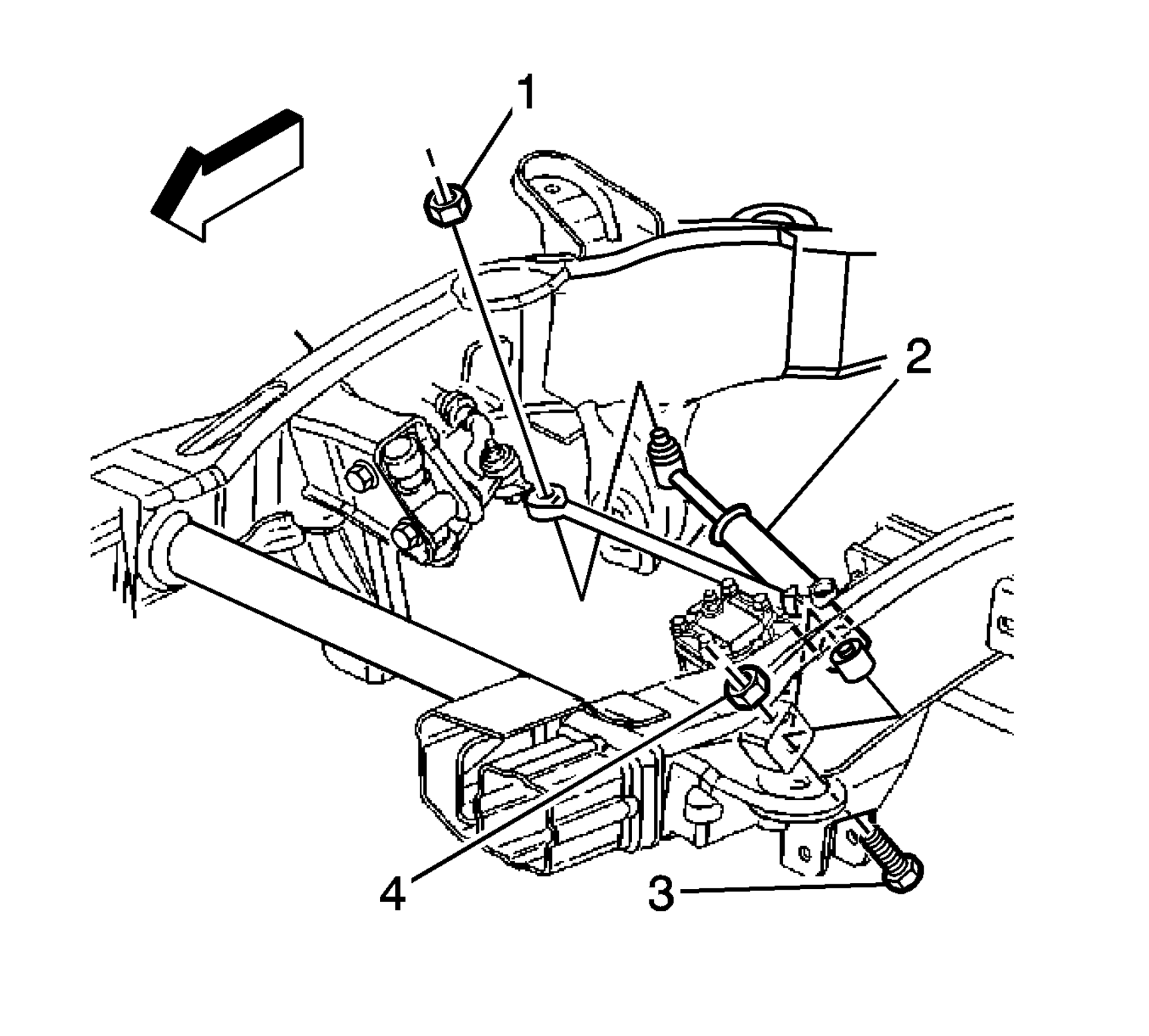

Fig 1: View Of Linkage Shock Absorber

GM1862841

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Use new steering linkage shock absorber nuts.

Install the steering linkage shock absorber (2) to the vehicle.
Install the steering linkage shock absorber (4) and nuts (1, 3).

CAUTION:

Refer to Fastener Caution .

Install the steering linkage shock absorber nuts (1, 3) and tighten to 40 (30 lb ft).
Install the engine shield, if equipped. Refer to Engine Shield Replacement .
