Charge Air Bypass Regulator Solenoid Valve Replacement

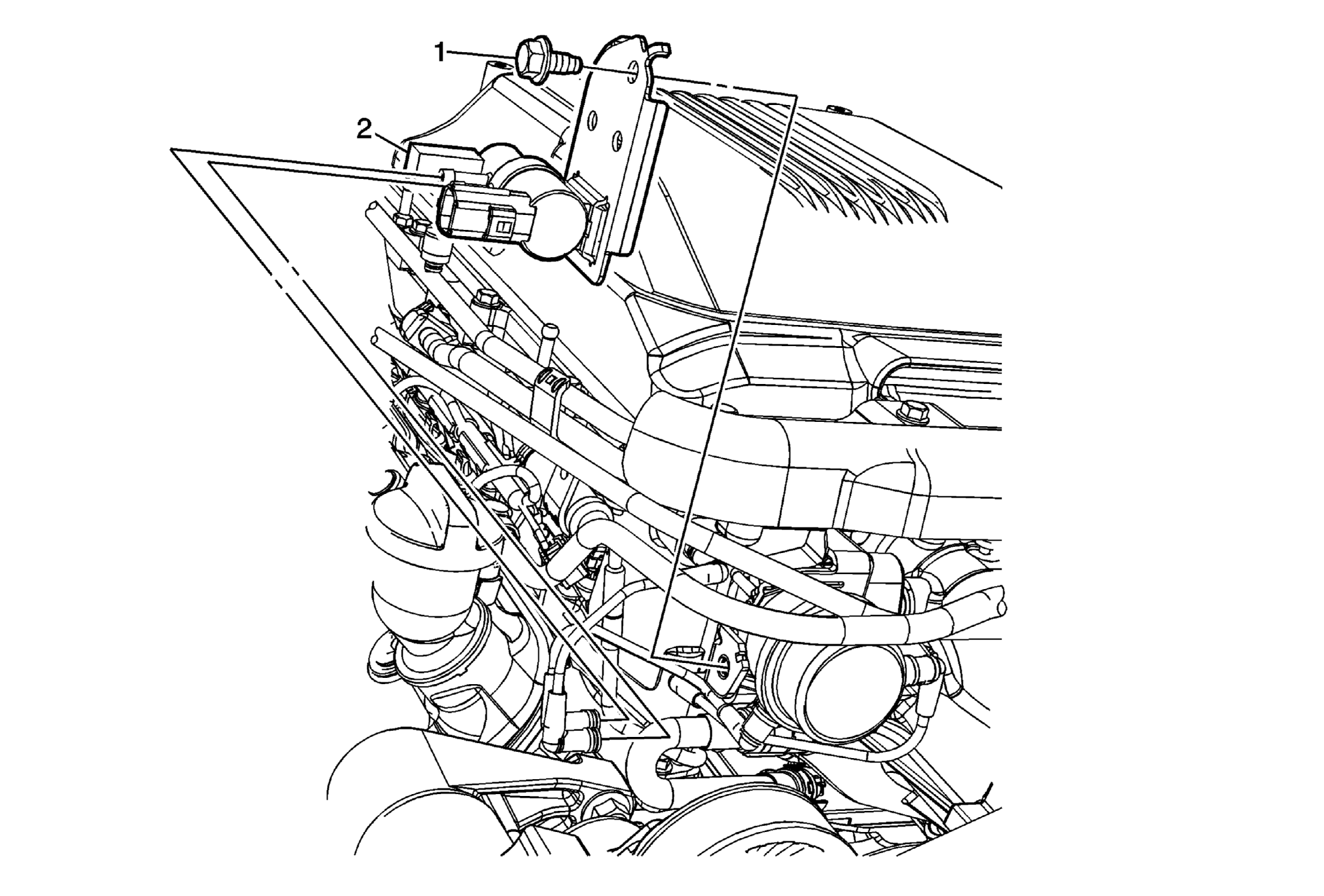

Fig 1: Identifying Charge Air Bypass Regulator Solenoid Valve & Fastener

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front manifold cover. Refer to Intake Manifold Cover Replacement - Front .
1	Charge Air Bypass Regulator Solenoid Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Charge Air Bypass Regulator Solenoid Procedure Disconnect the harness connector. Disconnect the vacuum tubes from the charge air bypass regulator solenoid.

Callout

Component Name

Preliminary Procedure
Remove the front manifold cover. Refer to Intake Manifold Cover Replacement - Front .

Charge Air Bypass Regulator Solenoid Fastener

CAUTION:

Tighten
10 N.m (89 lb in)

Charge Air Bypass Regulator Solenoid

Procedure
