Moveable Window Wiring Schematics: Front

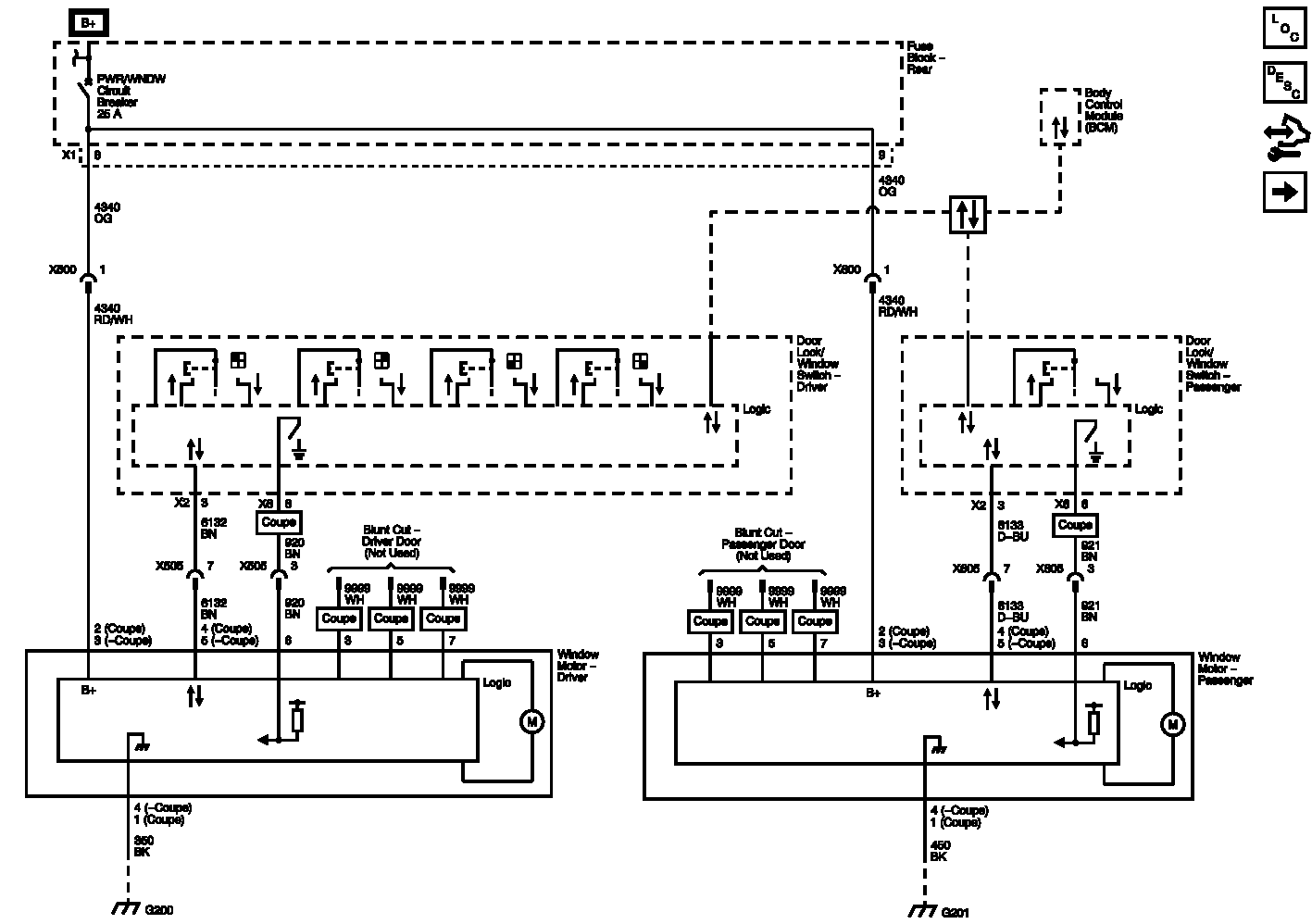

Fig 1: Front Wiring Schematic

GM2577016

Courtesy of GENERAL MOTORS COMPANY
