Module Power, Ground, Data Communication, Control Switch, and Liftgate Motor

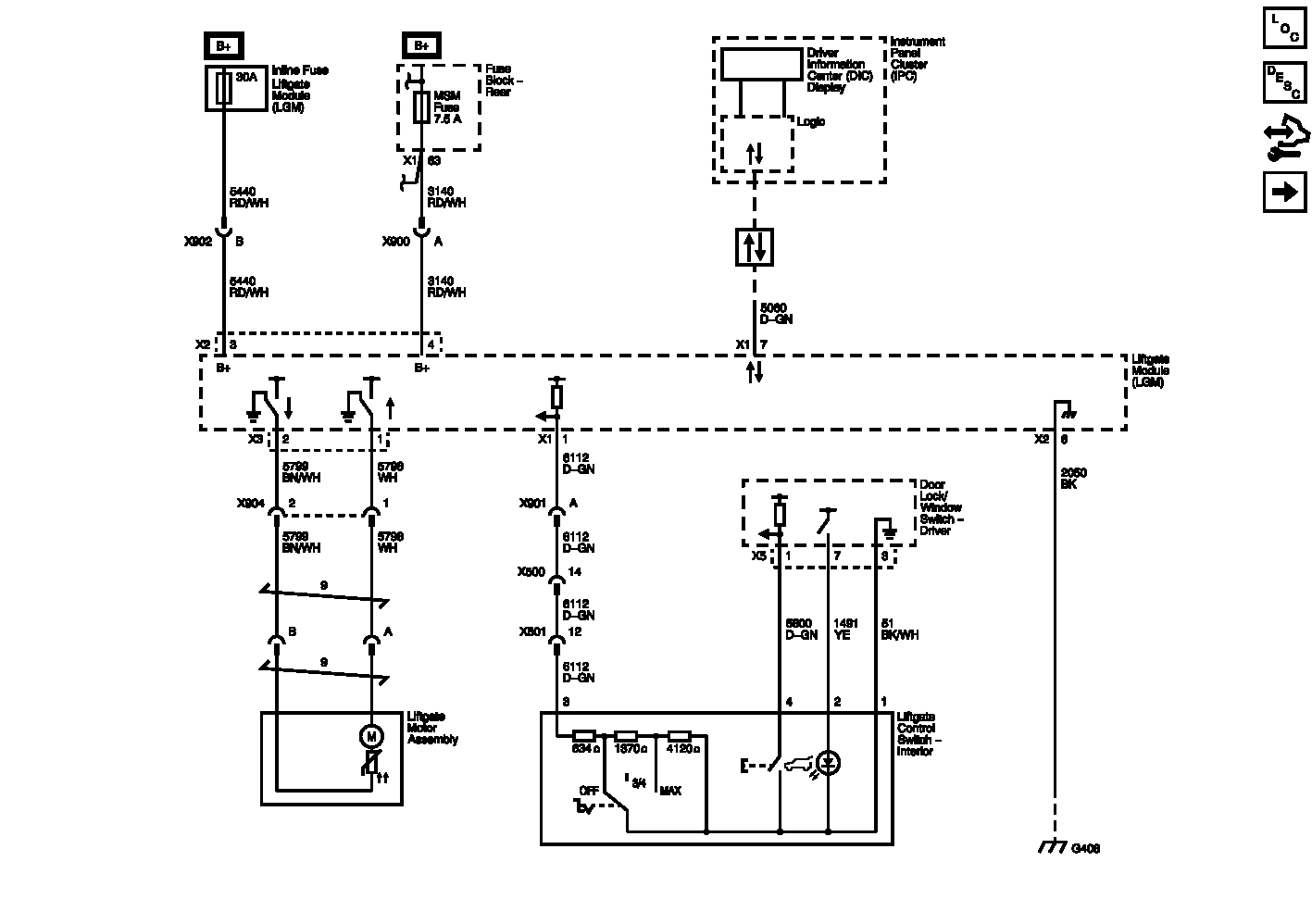

Fig 1: Module Power, Ground, Data Communication, Control Switch, and Liftgate Motor Wiring Schematic
GM2577358Courtesy of GENERAL MOTORS COMPANY
