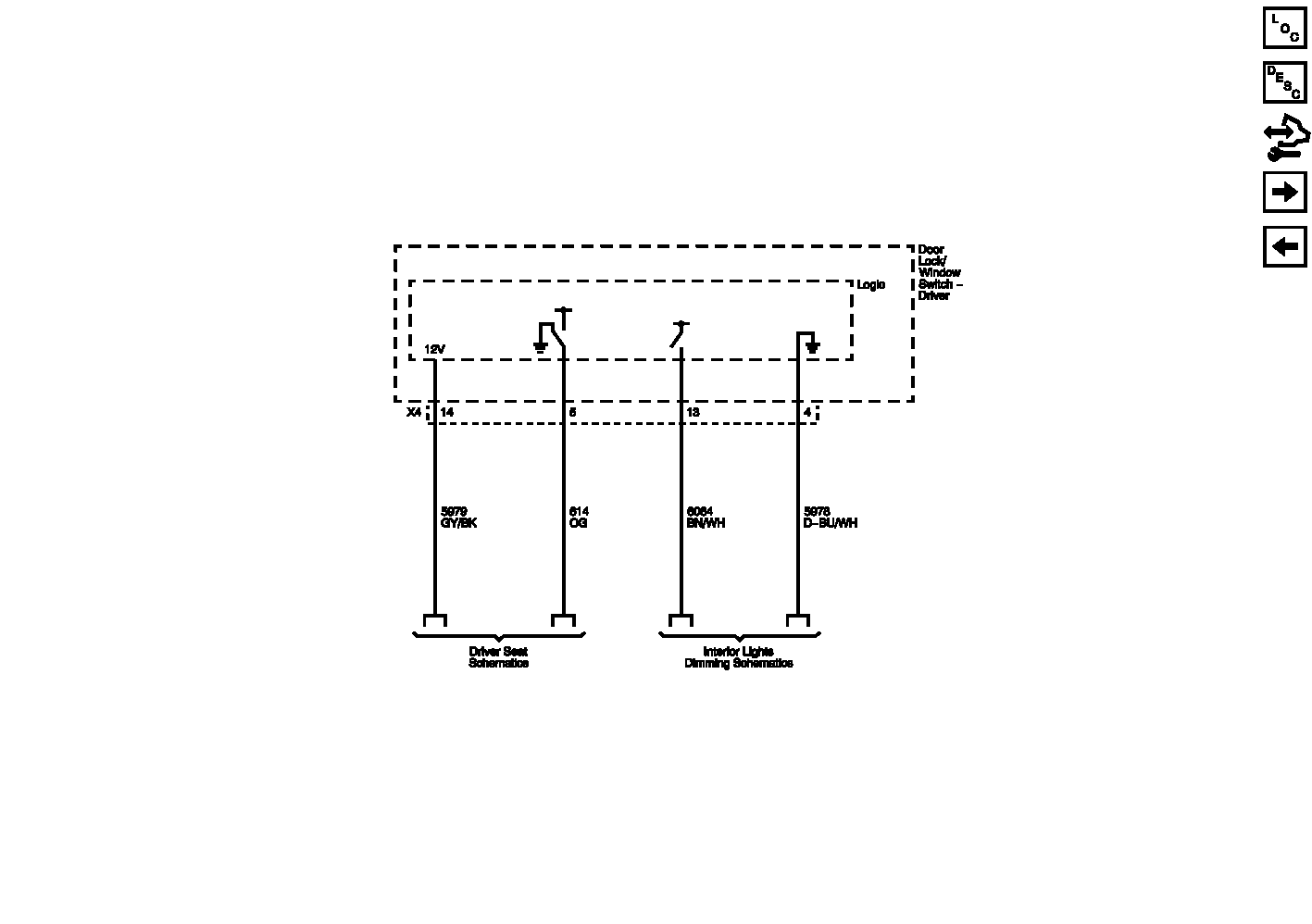

Home >> Cadillac >> 2012 >> CTS V, 2D Coupe, Automatic Trans >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Door Lock System And Release Systems >> Wiring Schematics >> Door Control Module Wiring Schematics >> Driver Door Module (2 of 2)
