High Speed GMLAN (LSA)

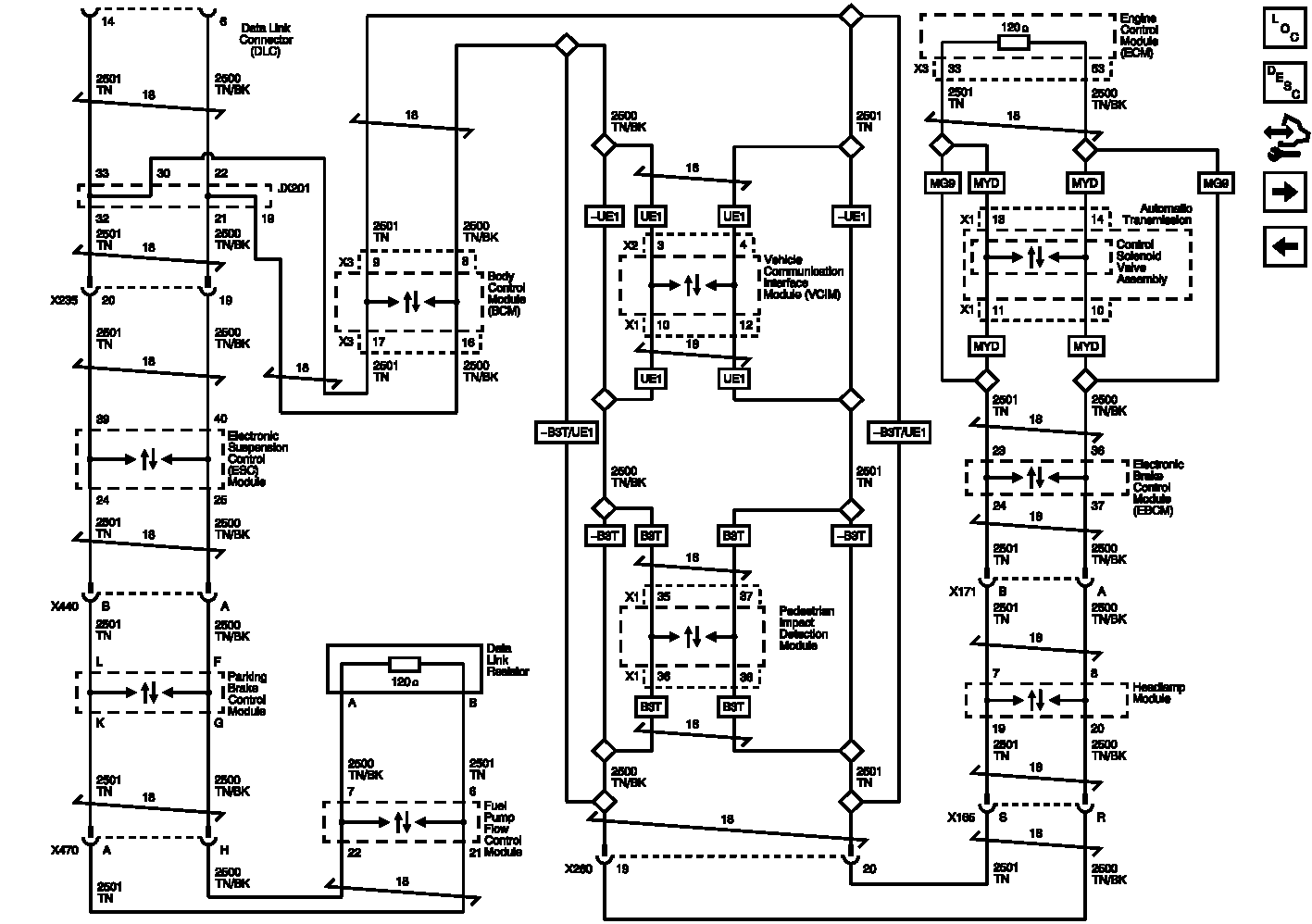

Fig 1: High Speed GMLAN Wiring Schematic (LSA)

GM2578743

Courtesy of GENERAL MOTORS COMPANY
