Subsystem References (3 of 3)

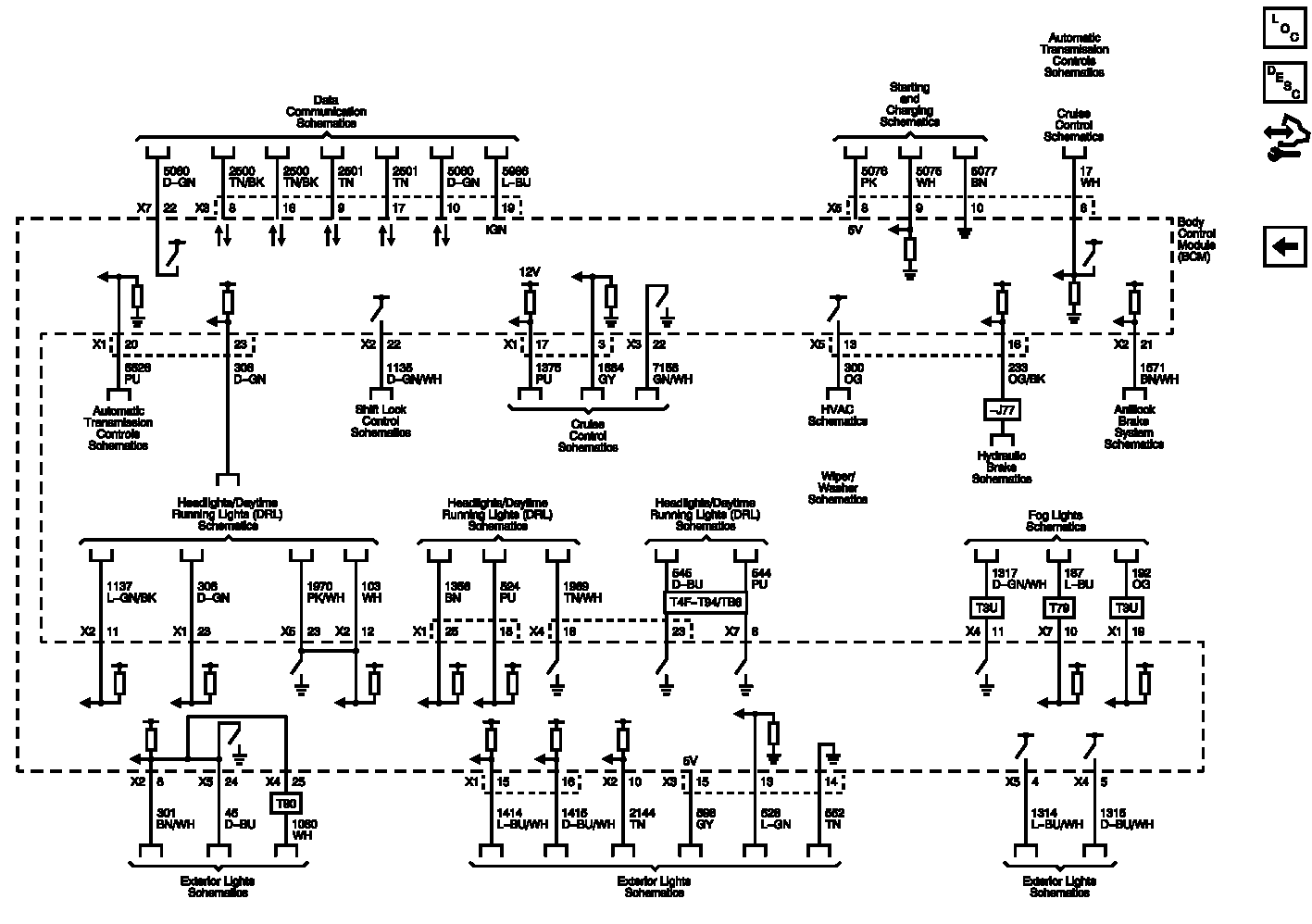

Fig 1: Subsystem References Wiring Schematic (3 of 3)

GM2578755

Courtesy of GENERAL MOTORS COMPANY
