Throttle Body Assembly Replacement

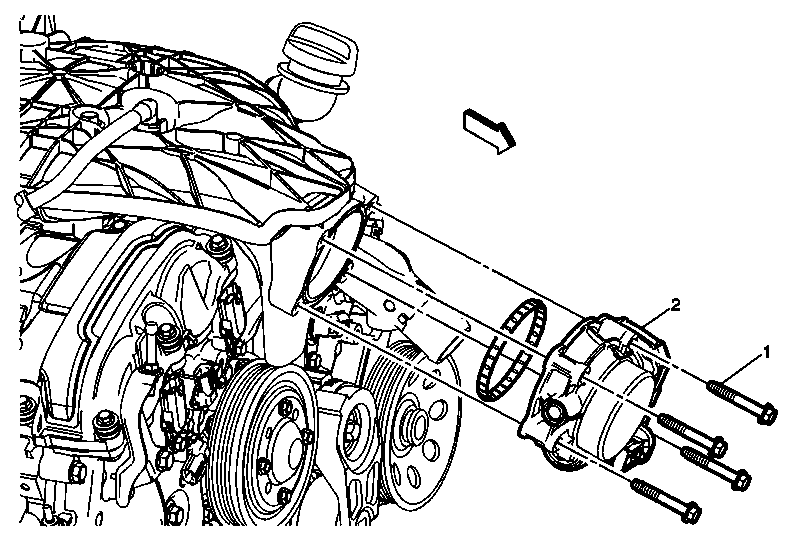

Fig 1: Throttle Body Assembly & Bolts

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement
1	Throttle Body Assembly Bolts (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Throttle Body Assembly Procedure Disconnect the throttle body assembly harness connector. Install a NEW throttle body assembly seal. Perform the throttle learn procedure. Refer to Throttle/Idle Learn .

Callout

Component Name

Preliminary Procedure
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement

Throttle Body Assembly Bolts (Qty: 4)

CAUTION:

Tighten
10 N.m (89 lb in)

Throttle Body Assembly

Procedure
