Manifold Absolute Pressure Sensor Replacement

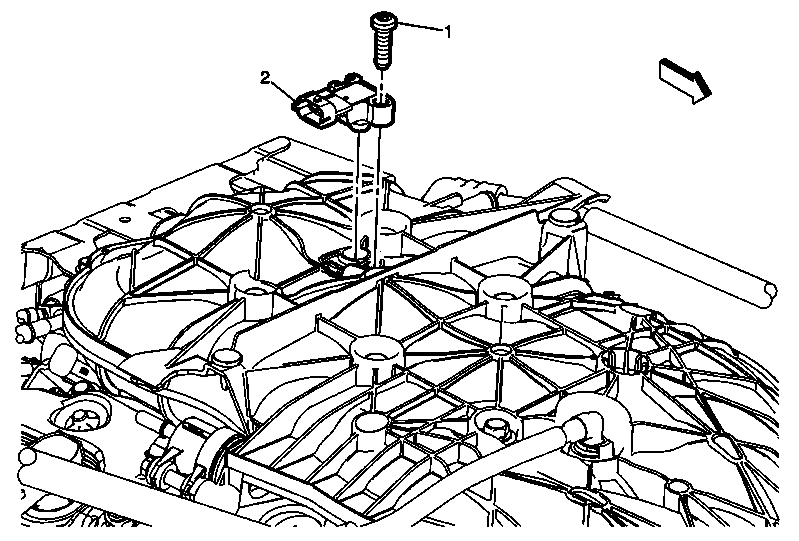

Fig 1: Manifold Absolute Pressure Sensor & Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement
1	Manifold Absolute Pressure Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Manifold Absolute Pressure Sensor Procedure Disconnect the MAP sensor harness connector. Install a NEW O-ring.

Callout

Component Name

Preliminary Procedure
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement

Manifold Absolute Pressure Sensor Bolt

CAUTION:

Tighten
4 N.m (35 lb in)

Manifold Absolute Pressure Sensor

Procedure
