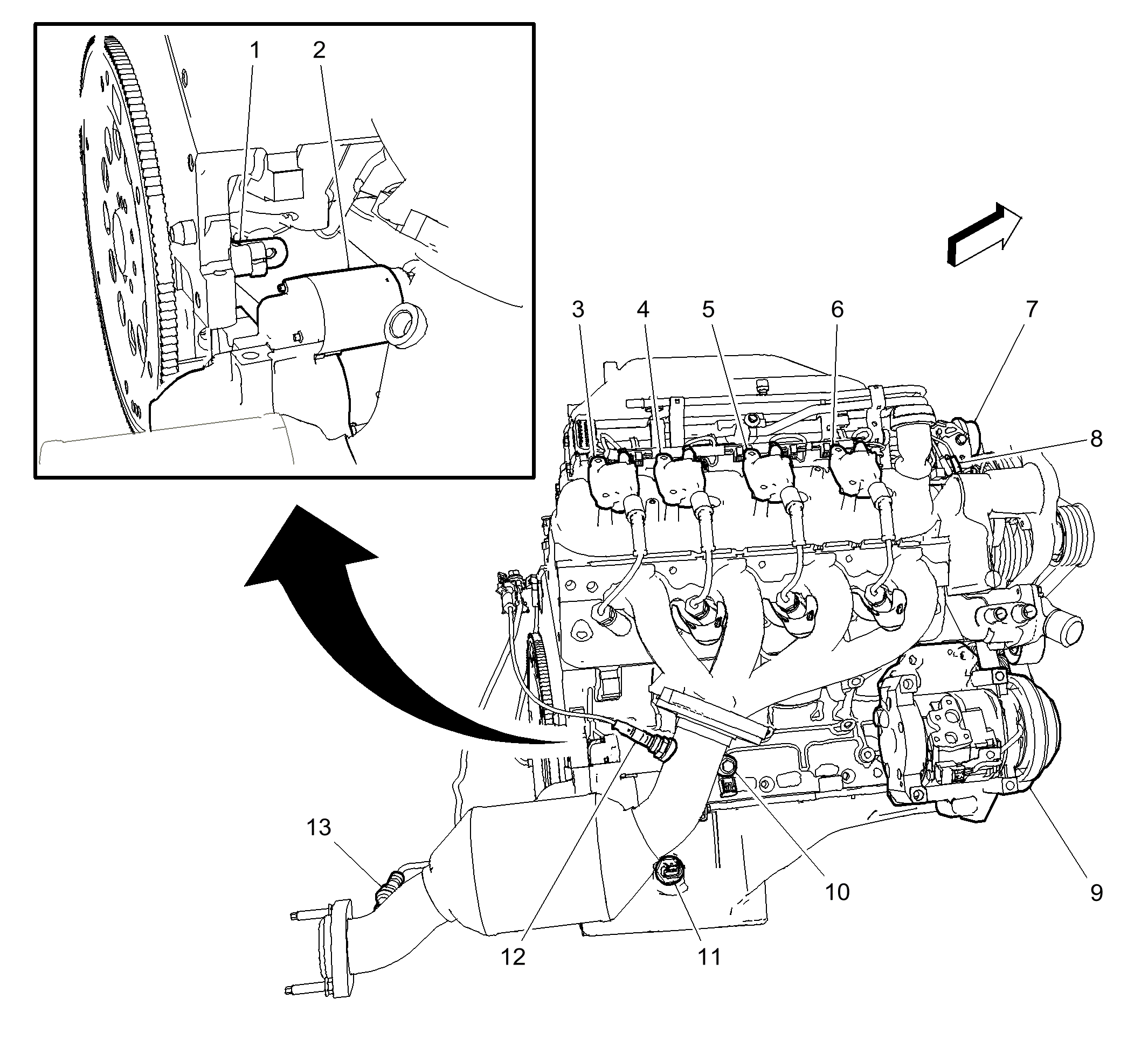

Engine Components - Right Side (LSA)
Engine Components - Right Side (LSA)
| Component Name | Callout |
|---|---|
| Crankshaft Position (CKP) Sensor | 1 |
| Starter Motor | 2 |
| Ignition Coil 8 | 3 |
| Ignition Coil 6 | 4 |
| Ignition Coil 4 | 5 |
| Ignition Coil 2 | 6 |
| Supercharger Bypass Valve Solenoid | 7 |
| Charge Air Bypass Regulator Solenoid Valve | 8 |
| A/C Compressor Clutch | 9 |
| Knock Sensor (KS) 2 | 10 |
| Engine Oil Level and Temperature Sensor | 11 |
| Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 | 12 |
| Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 | 13 |
