Engine Compartment Components

Engine Compartment Components

Component Name Callout
Brake Booster Vacuum Sensor (LFW or LFX) 1
Brake Fluid Level Switch 2
Multifunction Intake Air Sensor (LFW or LFX) 3
Fuse Block - Underhood 4
Electronic Brake Control Module (EBCM) 5

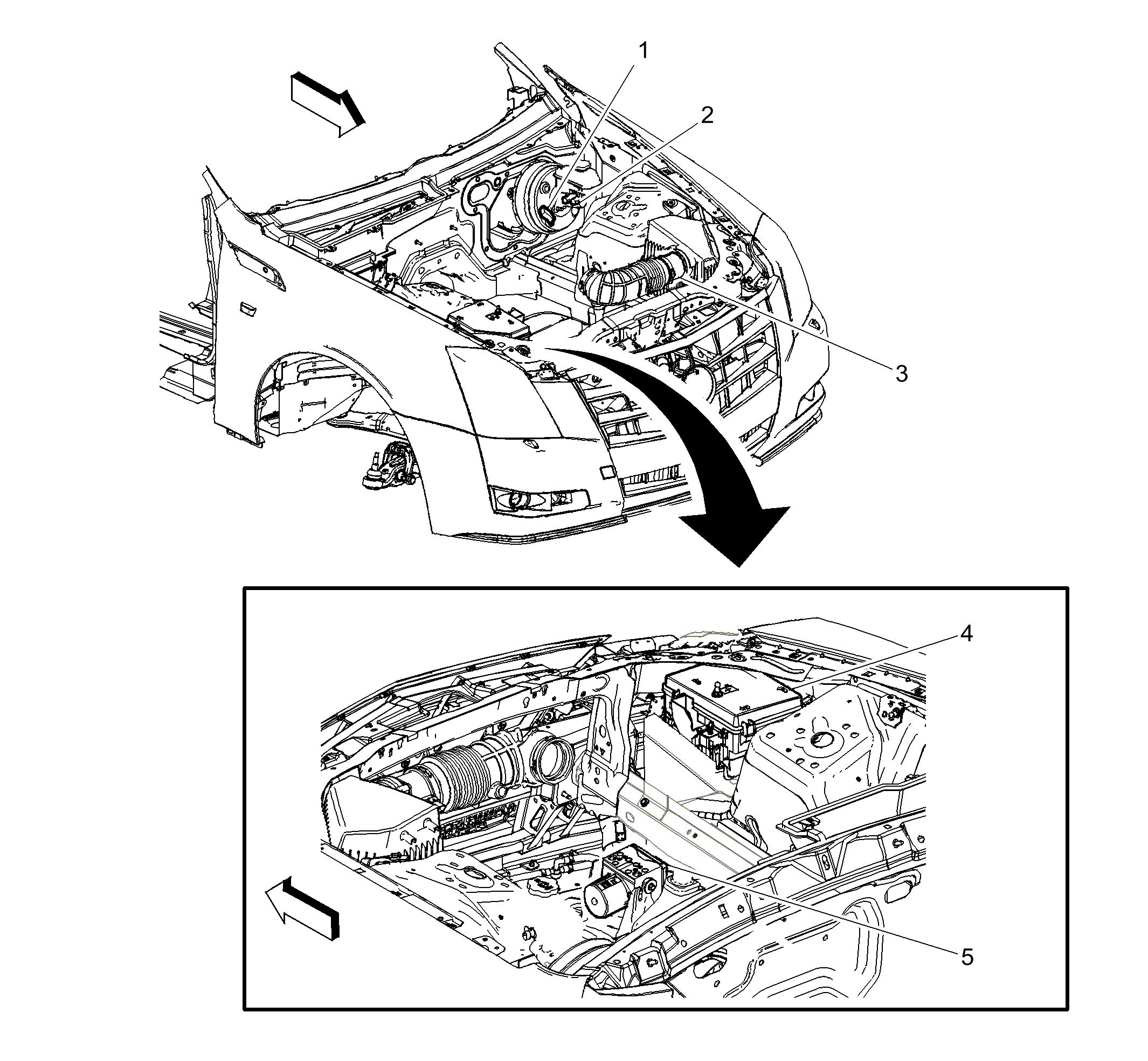

Fig 1: Engine Compartment Components (LF1 or LLT)
GM2321992Courtesy of GENERAL MOTORS COMPANY
