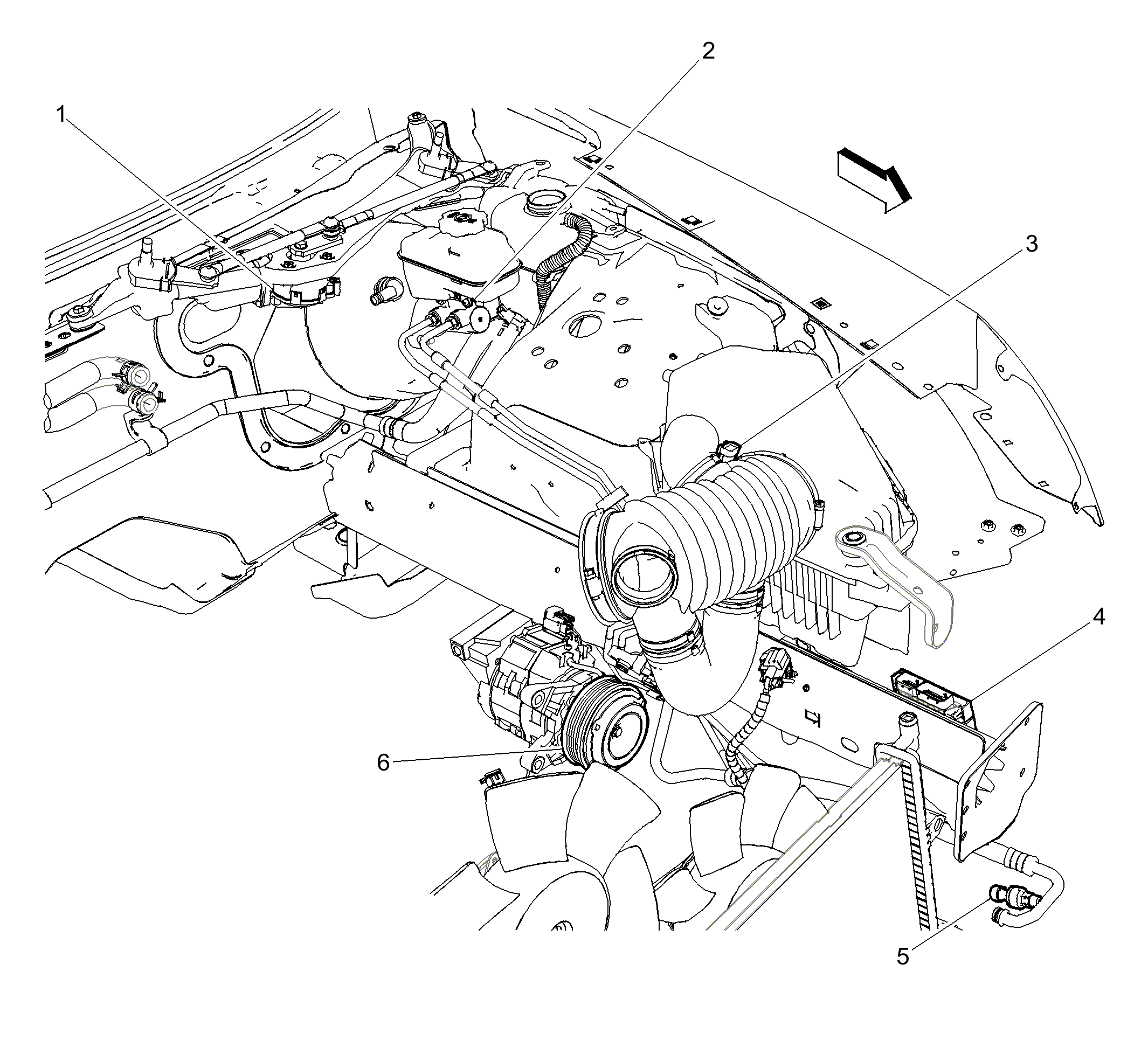

Engine Compartment Components - Left Side
Engine Compartment Components - Left Side
| Component Name | Callout |
|---|---|
| Windshield Wiper Motor (Left Hand Drive) | 1 |
| Brake Fluid Level Switch | 2 |
| Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor (LSA) or Multifunction Intake Air Sensor (LFW or LFX) | 3 |
| Engine Control Module (ECM) (LFW or LFX) | 4 |
| A/C Refrigerant Pressure Sensor | 5 |
| A/C Compressor Clutch (LFW or LFX) | 6 |
