Installation Procedure

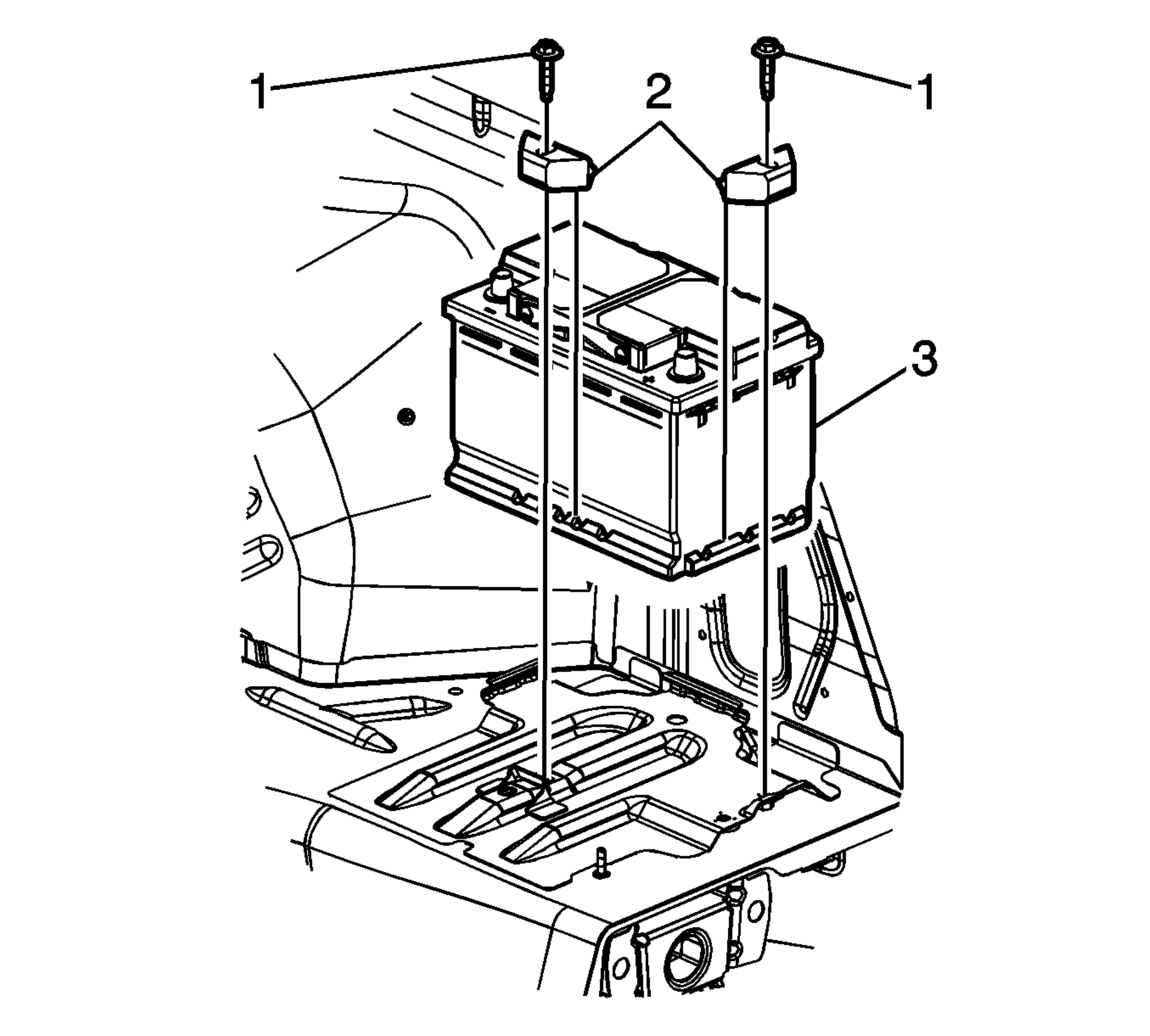

    Fig 1: Identifying Battery Hold Down Retainers & Bolts
    GM2006109Courtesy of GENERAL MOTORS COMPANY
  1. Install the battery (3) to the vehicle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the battery hold down retainers (2) and the battery hold down retainer bolts (1) and tighten the bolts to 18 N.m (13 lb ft).

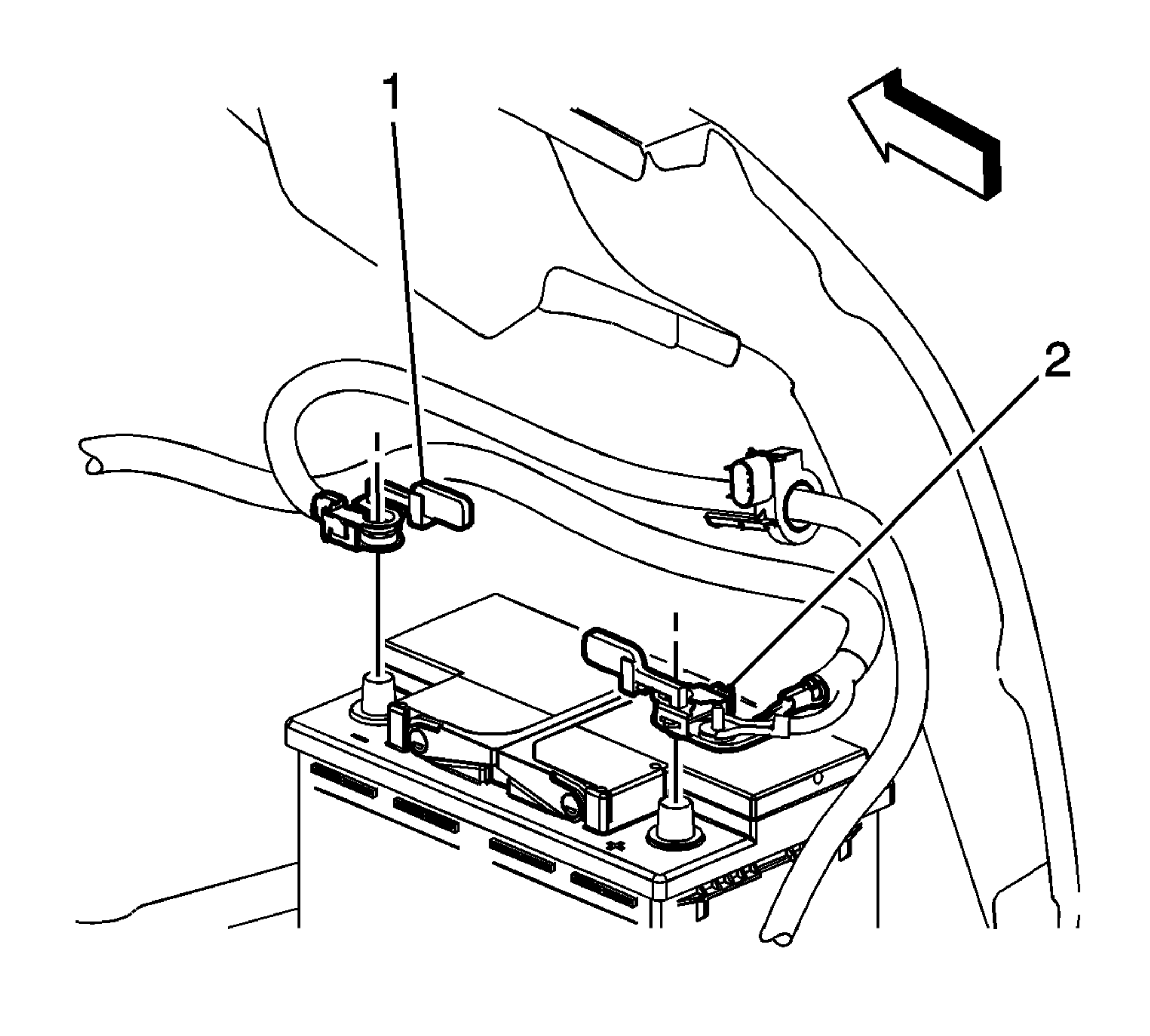

    3. Fig 2: Identifying Battery Negative Cable Handle
    GM2006110Courtesy of GENERAL MOTORS COMPANY
  3. Ensure the battery positive cable is seated properly.
  4. Turn the battery positive cable handle (2) to secure the battery positive cable to the battery positive post.
  5. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (Coupe) , Battery Negative Cable Disconnection and Connection (Sedan,Wagon)
    6. NOTE:

    Replacement batteries may require the vent plug in the battery vent hole to be moved from one end of the battery to the other to permit vent tube installation per original design.

  6. Connect the battery vent hose.
  7. Install the rear compartment side trim panel door (Sedan,Coupe). Refer to Rear Compartment Side Trim Panel Replacement (Sedan) , Rear Compartment Side Trim Panel Replacement (Coupe)

    or the body side lower trim panel (Wagon). Refer to Body Side Lower Trim Panel Replacement (Wagon)
