Battery Current Sensor Replacement
Battery Current Sensor Replacement

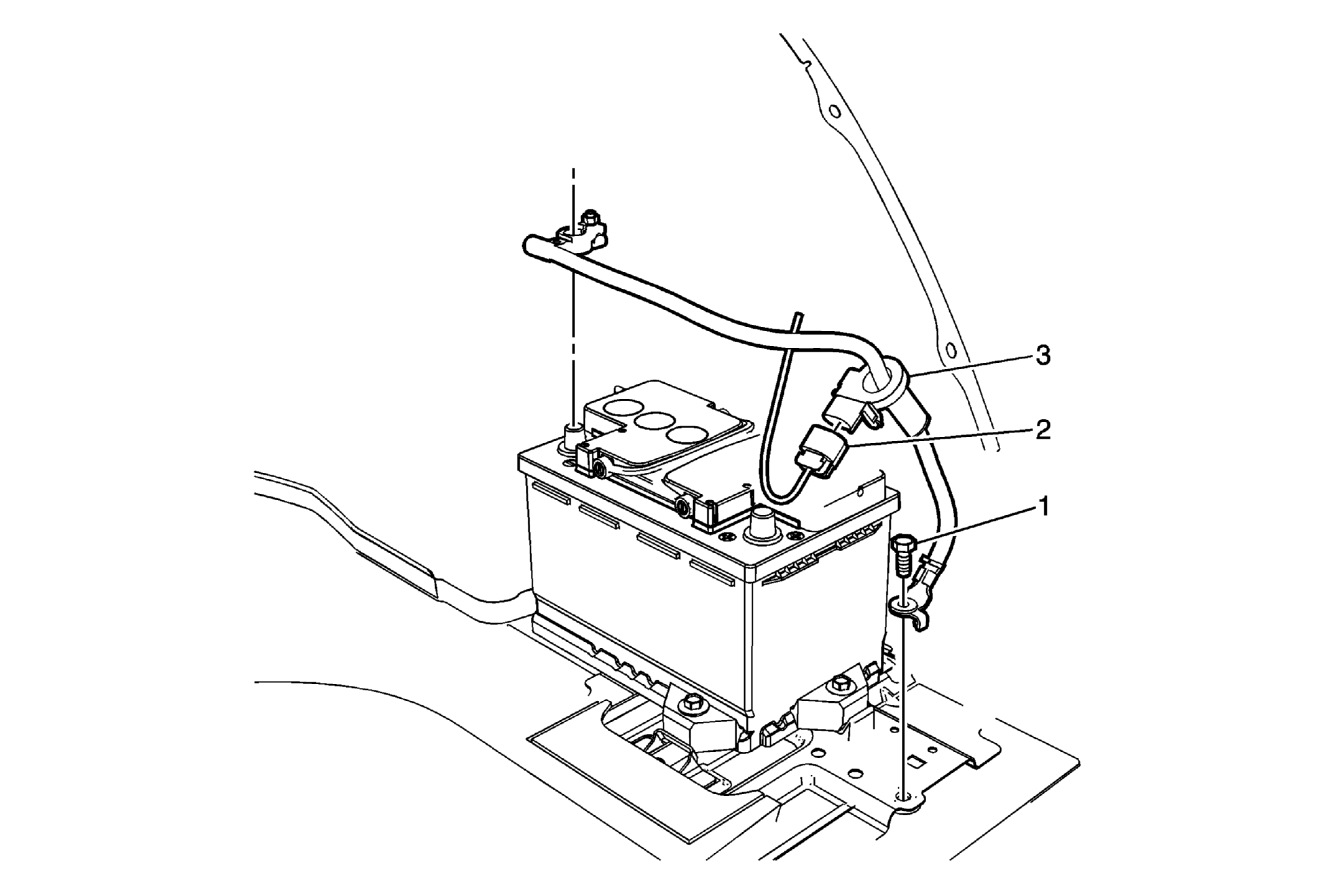

| Callout | Component Name |
|---|---|
| Preliminary Procedure Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (Coupe) , Battery Negative Cable Disconnection and Connection (Sedan,Wagon) . |
|
| 1 | Battery Negative Cable Ground Bolt
CAUTION:
Refer to Fastener Caution . Tighten 20 N.m (15 lb ft) |
| 2 | Body Harness Connector |
| 3 | Battery Current Sensor Procedure Disconnect the battery current sensor from the body harness and remove the negative battery cable . TIP: The battery current sensor is part of the negative battery cable. |
