Easy Keyless Entry (ATH)

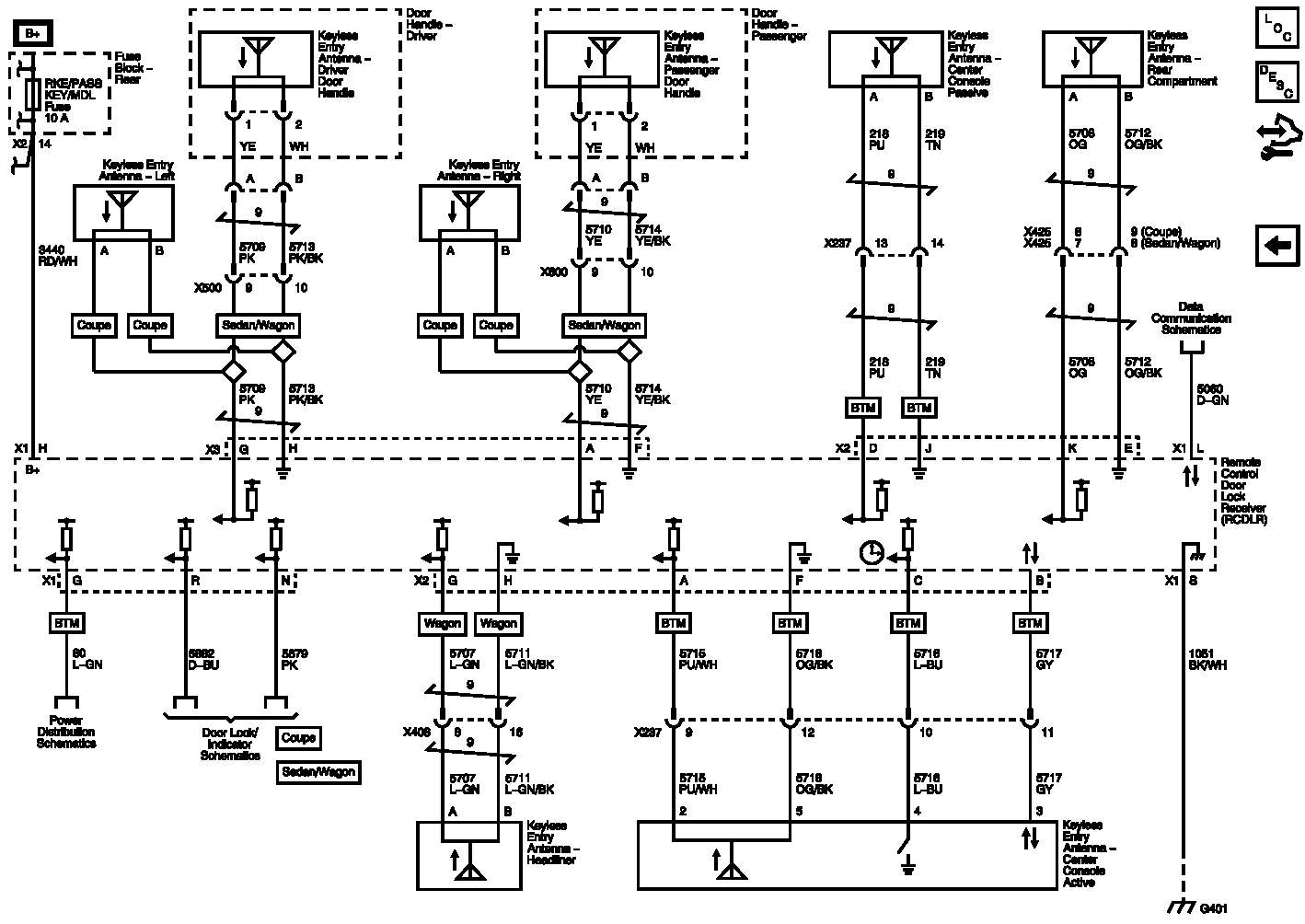

Fig 1: Easy Keyless Entry Wiring Schematic (ATH)

GM2578894

Courtesy of GENERAL MOTORS COMPANY
