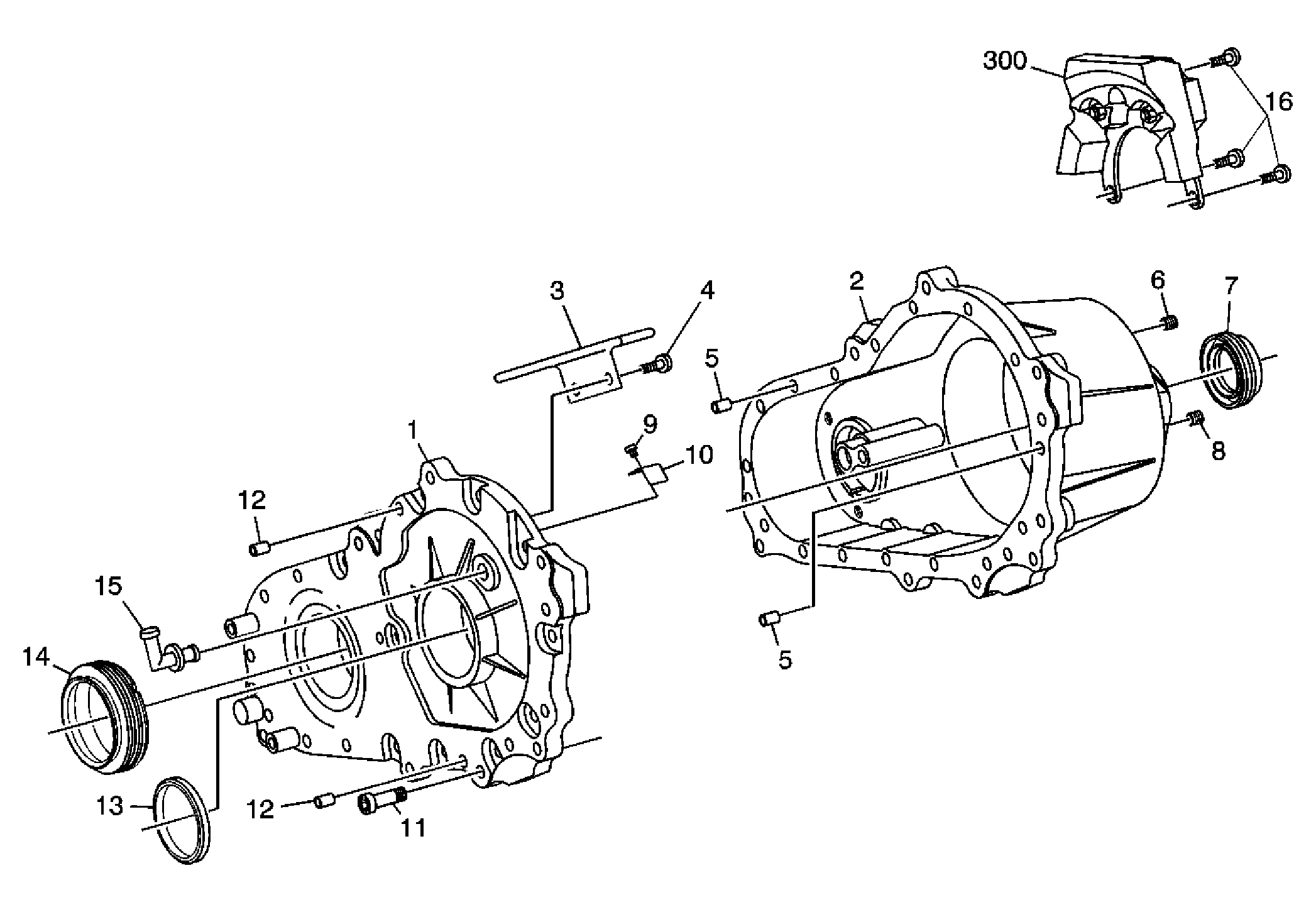

Case Components
| Callout | Component Name |
|---|---|
| 1 | Case |
| 2 | Cover |
| 3 | Chain Snubber |
| 4 | Chain Snubber Bolt |
| 5 | Locating Pin |
| 5 | Locating Pin |
| 6 | Fill Plug |
| 7 | Rear Output Seal |
| 8 | Drain Plug |
| 9 | Vent Baffle Bolt |
| 10 | Vent Baffle |
| 11 | Case Bolt |
| 12 | Locating Pin |
| 12 | Locating Pin |
| 13 | Input Shaft Seal |
| 14 | Front Output Seal |
| 15 | Vent |
| 16 | Bolts |
| 300 | Vibration Dampener- V6 Only |
