Power, Ground, and Low Speed GMLAN Serial Data

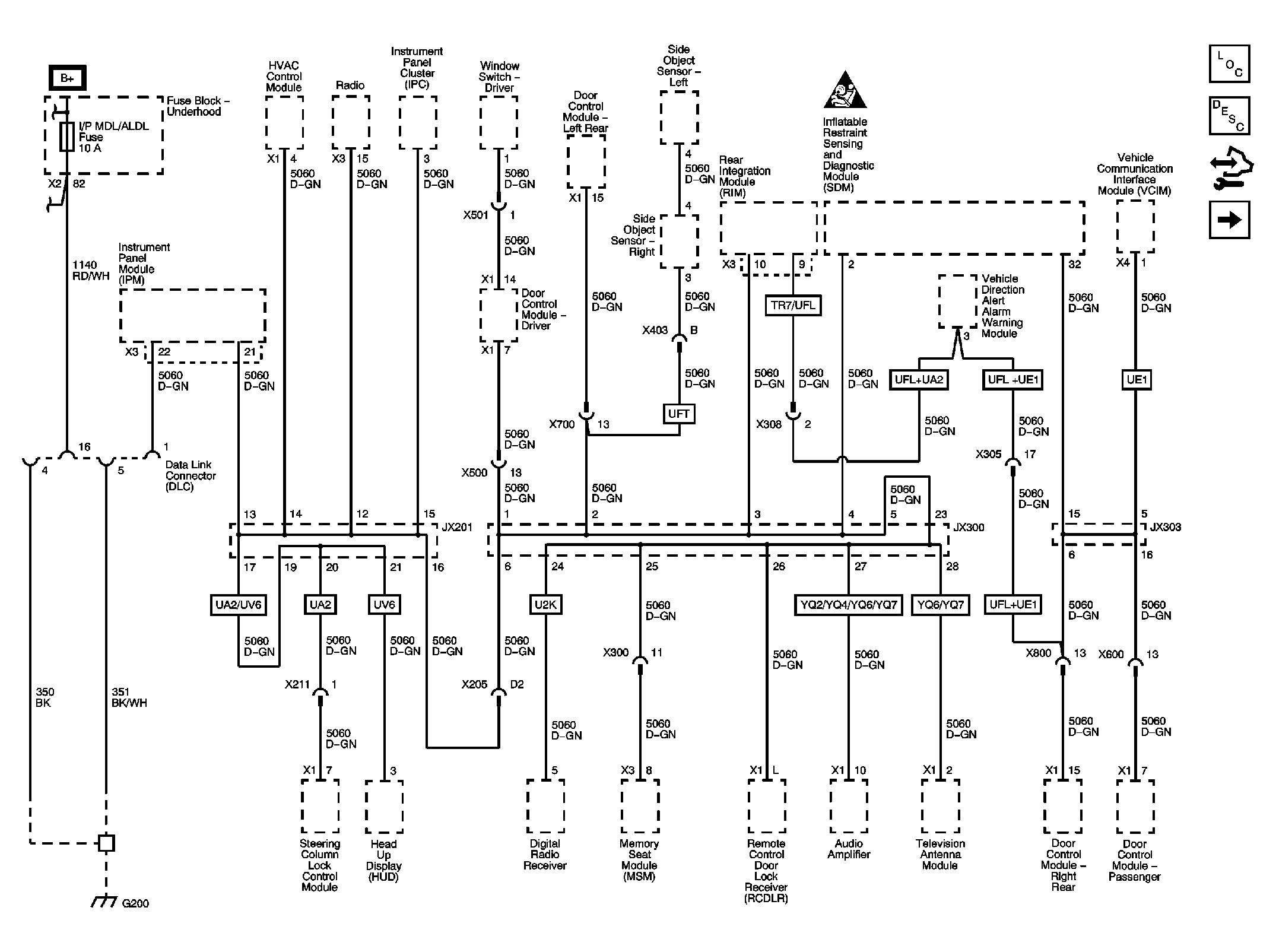

Fig 1: Power, Ground, and Low Speed GMLAN Serial Data Wiring Schematic

GM2410549

Courtesy of GENERAL MOTORS COMPANY
