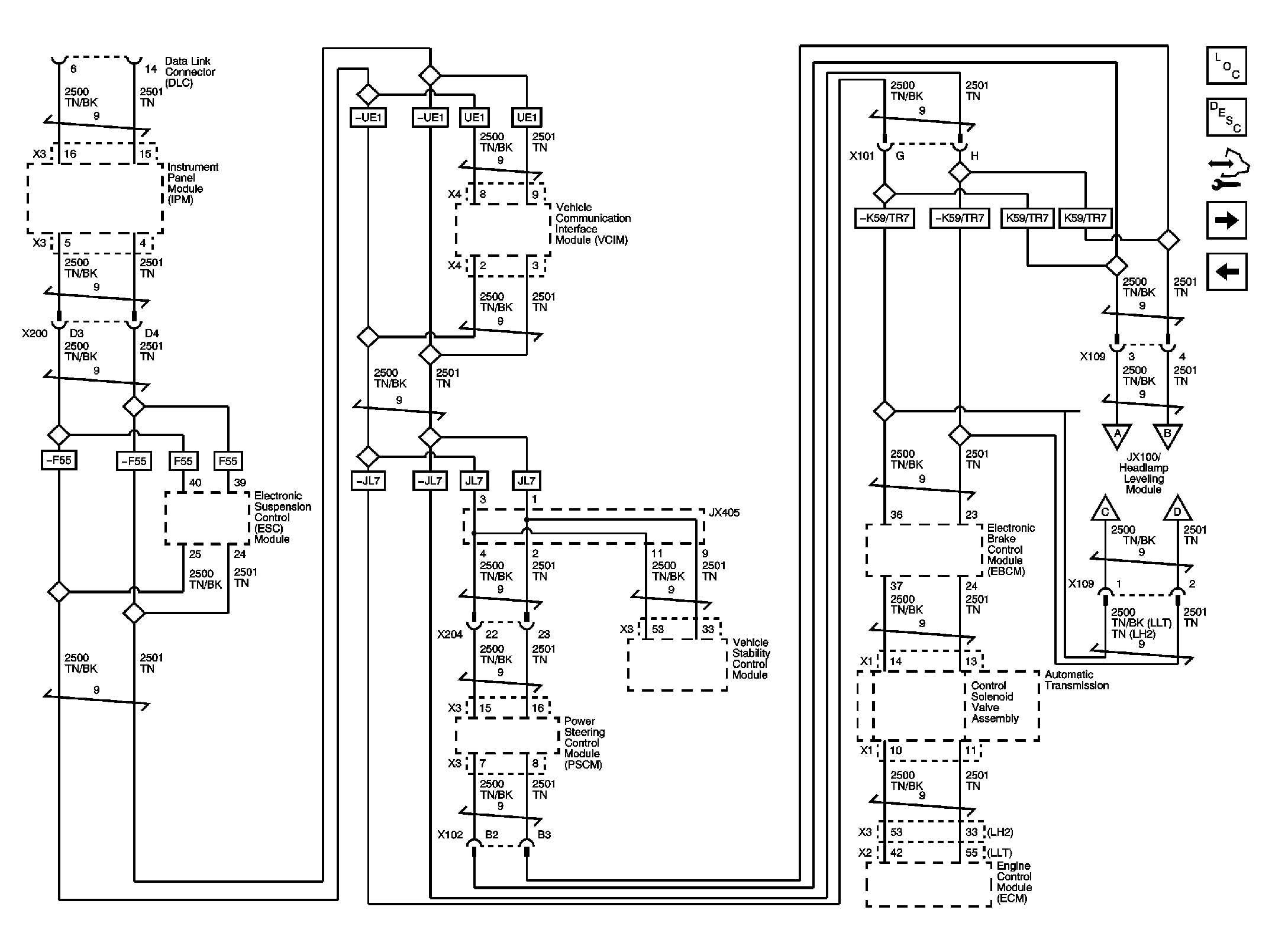

Home >> Cadillac >> 2011 >> STS AWD >> Repair and Diagnosis >> Engine Performance >> System >> Data Communications System >> Wiring Diagrams >> Data Communication Wiring Schematics >> GMLAN High Speed Serial Data (1 of 2)
