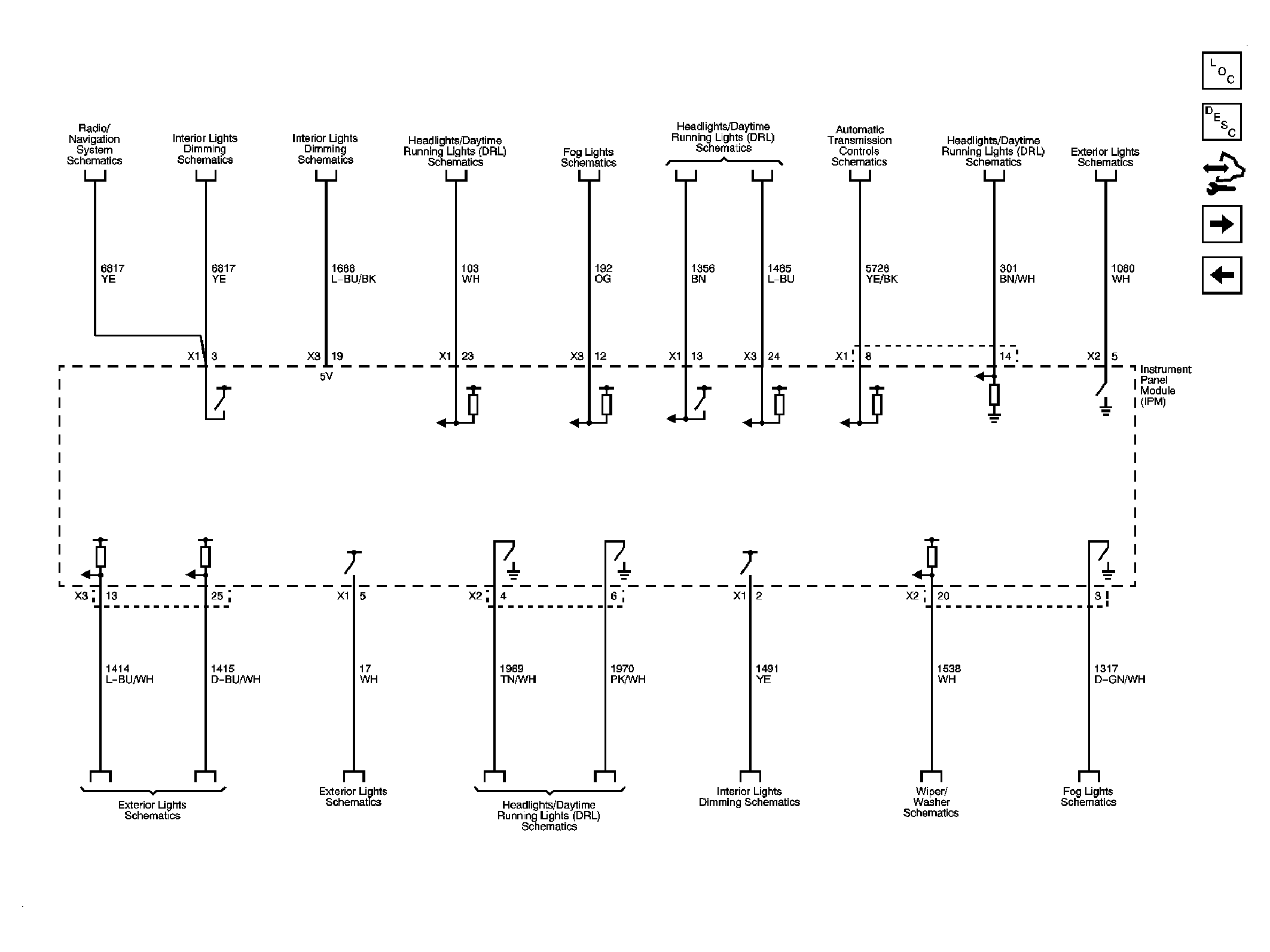

Home >> Cadillac >> 2011 >> STS AWD >> Repair and Diagnosis >> Engine Performance >> System >> Data Communications System >> Wiring Diagrams >> Body Control System Wiring Schematics >> IPM Input and Outputs (2 of 3)
