Installation Procedure

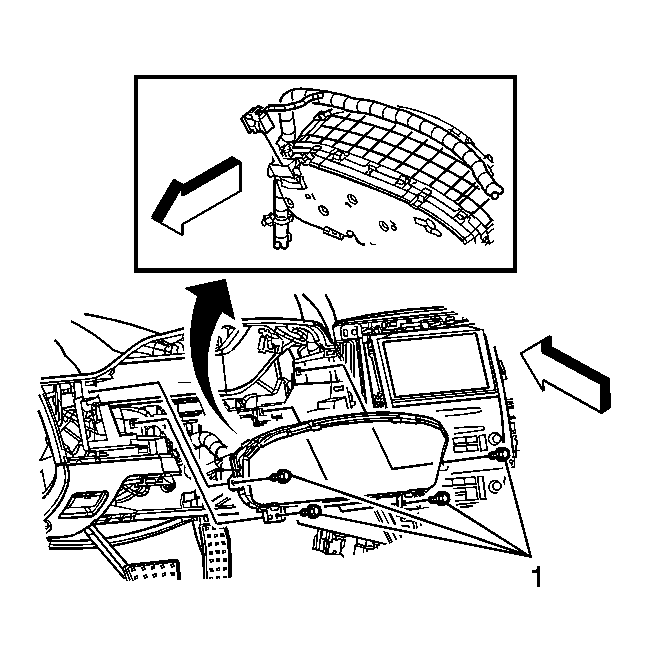

    Fig 1: View Of Instrument Panel Cluster (IPC)
    GM1386626Courtesy of GENERAL MOTORS COMPANY
  1. Connect the electrical connector.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the 4 screws (1) securing the instrument panel cluster.

    Tighten

    Tighten the screws (1) to 2 N.m (9 lb in).

  3. Install the instrument panel cluster trim. Refer to Instrument Cluster Trim Panel Replacement .
  4. Refer to Control Module References for programming and setup information.
